Yamaha Outboard Parts - SCHEDULED SERVICE PARTS - XF425NSA7 (2018) | Flood Marine

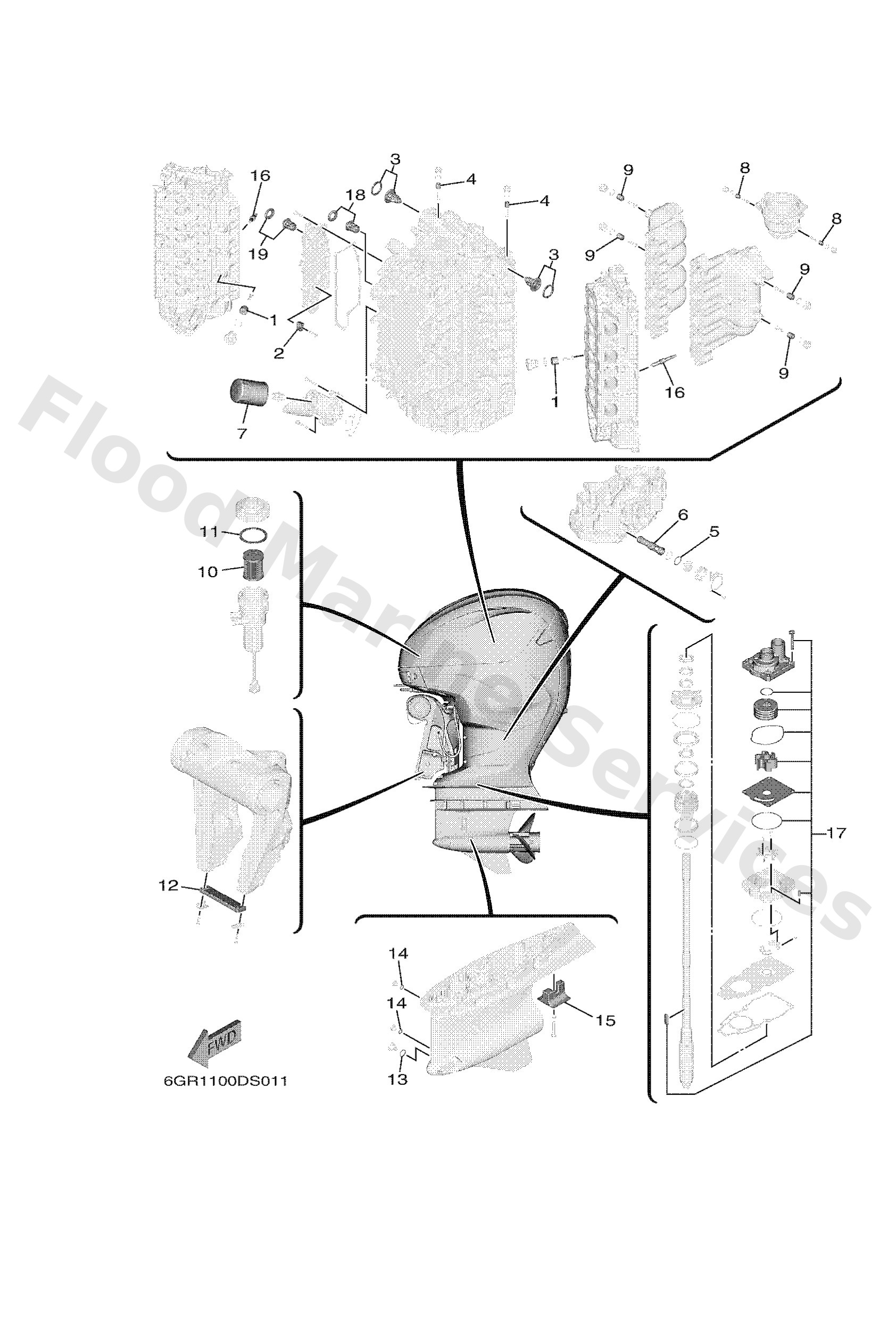

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

Reference
Description
Price


1
6AW1132L00
Anode 2
Loading…

↗
2
6AW1132P00
Anode 5
Loading…

↗
3
6GR1241100
Thermostat
Loading…

↗
4
6G81132500
Anode
Loading…

↗
5
9321034633
O-ring (21a)
Loading…

↗
6
6GR1341100
Strainer, oil
Loading…

↗
7
N261344002
Element assembly, oil cleaner
Loading…

↗
10
6P32456301
Element, filter (with tag)
Loading…

↗
11
6P32456400
Gasket
Loading…

↗
12
6AW4525100
Anode
Loading…

↗
13
9321019123
O-ring (646)
Loading…

↗
14
9321009165
O-ring
Loading…

↗
15
6AW4537300
Anode
Loading…

↗
16
9470200442
Plug, spark (ngk ilmar7e9)
Loading…

↗
17
6GRW007800
Water pump repair kit
Loading…

↗
18
6H31241120
Thermostat
Loading…

↗
19
66M1241101
Thermostat
Loading…

↗
