Yamaha Outboard Parts - SEA WATER PUMP SUB ASSY - ME372STIP1 (2007) | Flood Marine

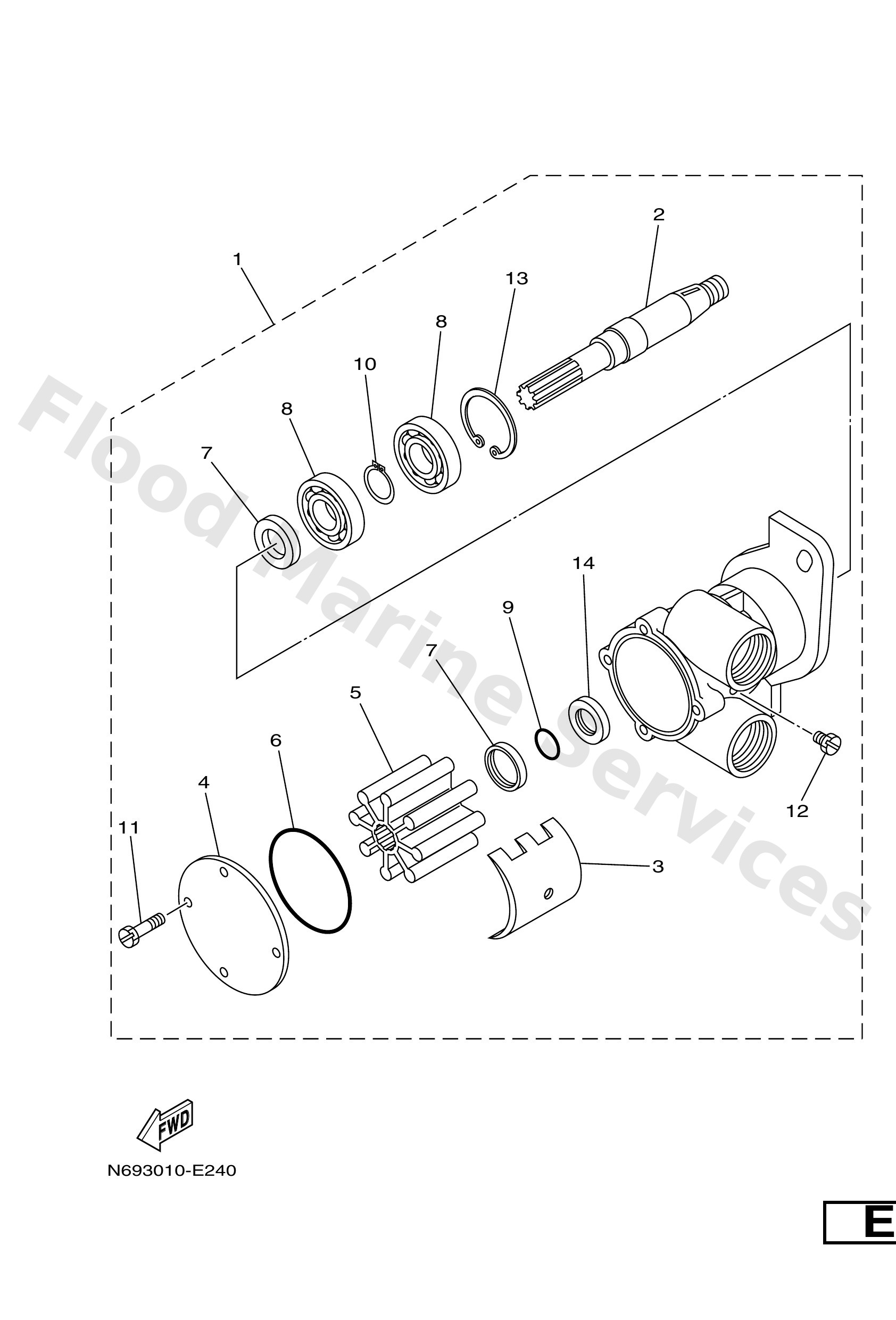

Diagram: SEA WATER PUMP SUB ASSY

Diagram

Parts List

Reference
Description
Price


1
6TC1240202 SEE FIG.23-1
Sea water pump sub-assembly
Loading…

↗
2
2
N64-83510-00
Loading…

↗
3
6TA1243300
Cam
Loading…

↗
7
6TA1243M00
Seal, water pump
Loading…

↗
7
14
D Om Te
Loading…

↗
8
5
90480-13M24
Loading…

↗
8
6TA1245F00
Bearing, waterpump
Loading…

↗
9
6TA1243900
O-ring
Loading…

↗
10
6
-
Loading…

↗
10
6TA1243H00
Cir-clip, pump 1
Loading…

↗
11
6TAA990200
Screw, water pump
Loading…

↗
12
6TA1244800
Screw,water pump
Loading…

↗
13
4
6Yf-82588-00
Loading…

↗
13
6TA1243J00
Cir-clip, pump 2
Loading…

↗
