Yamaha Outboard Parts - SELECTOR VALVE - DEDHTD (2014) | Flood Marine

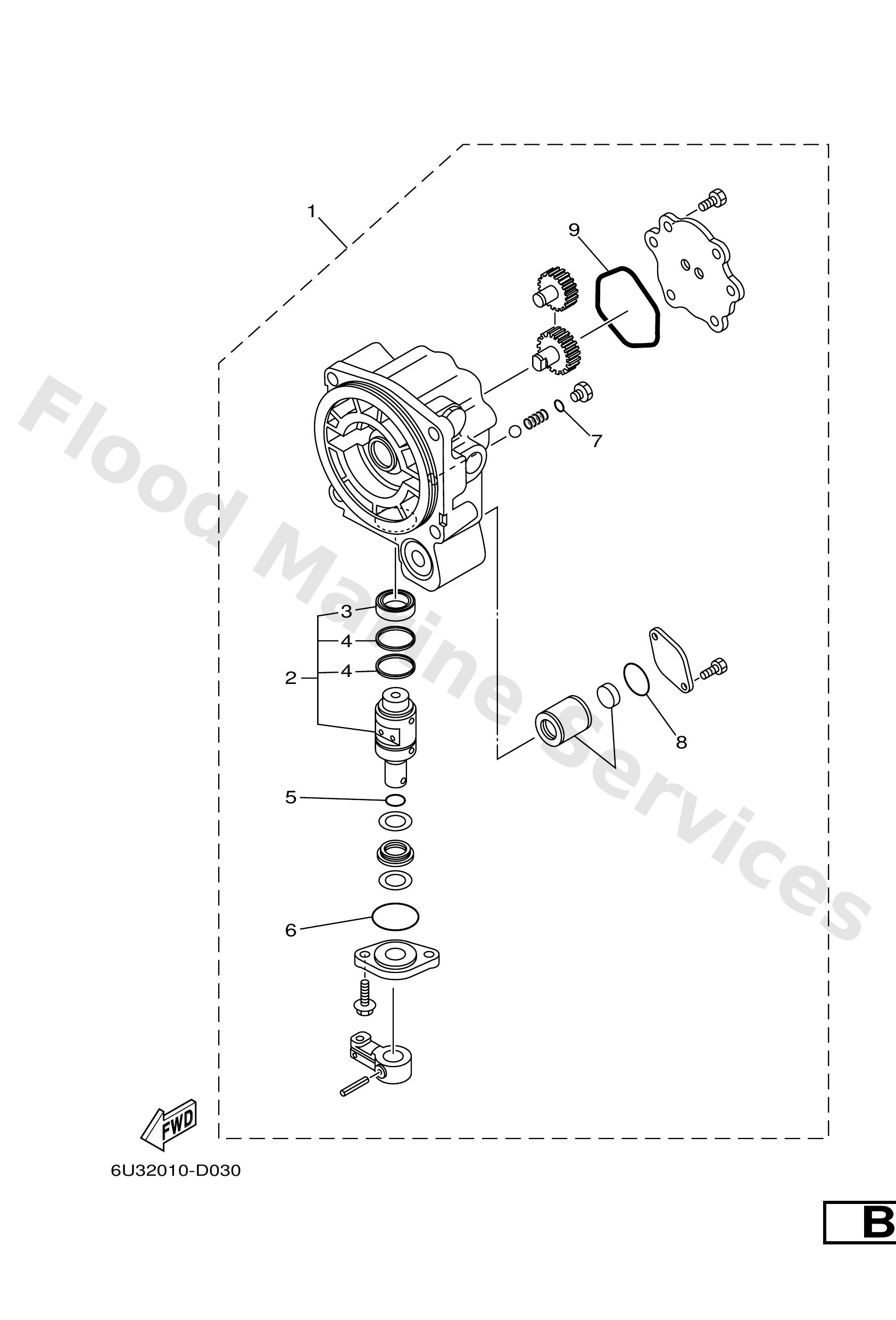

Diagram: SELECTOR VALVE

Diagram

Parts List

Reference
Description
Price


1
6U418210A0
Selector valve assembly.
Loading…

↗
3
9330690306
Bearing
Loading…

↗
4
6U41821900
Ring,oil seal
Loading…

↗
5
6U343861A0
O-ring
Loading…

↗
6
6U343862A0
O-ring
Loading…

↗
7
6U343863A0
O-ring
Loading…

↗
8
6U343865A0
O-ring(47x)
Loading…

↗
9
6U113329A0
Gasket, pump cover
Loading…

↗
9
6U11341101
Strainer, oil
Loading…

↗
9
6U32010D030 COVER, STRAINER 2
6U1-13415-00
Loading…

↗
9
6U31341901
Plug
Loading…

↗
