ME750TIHL (2005)
SELECTOR VALVE (MGNV123-6)

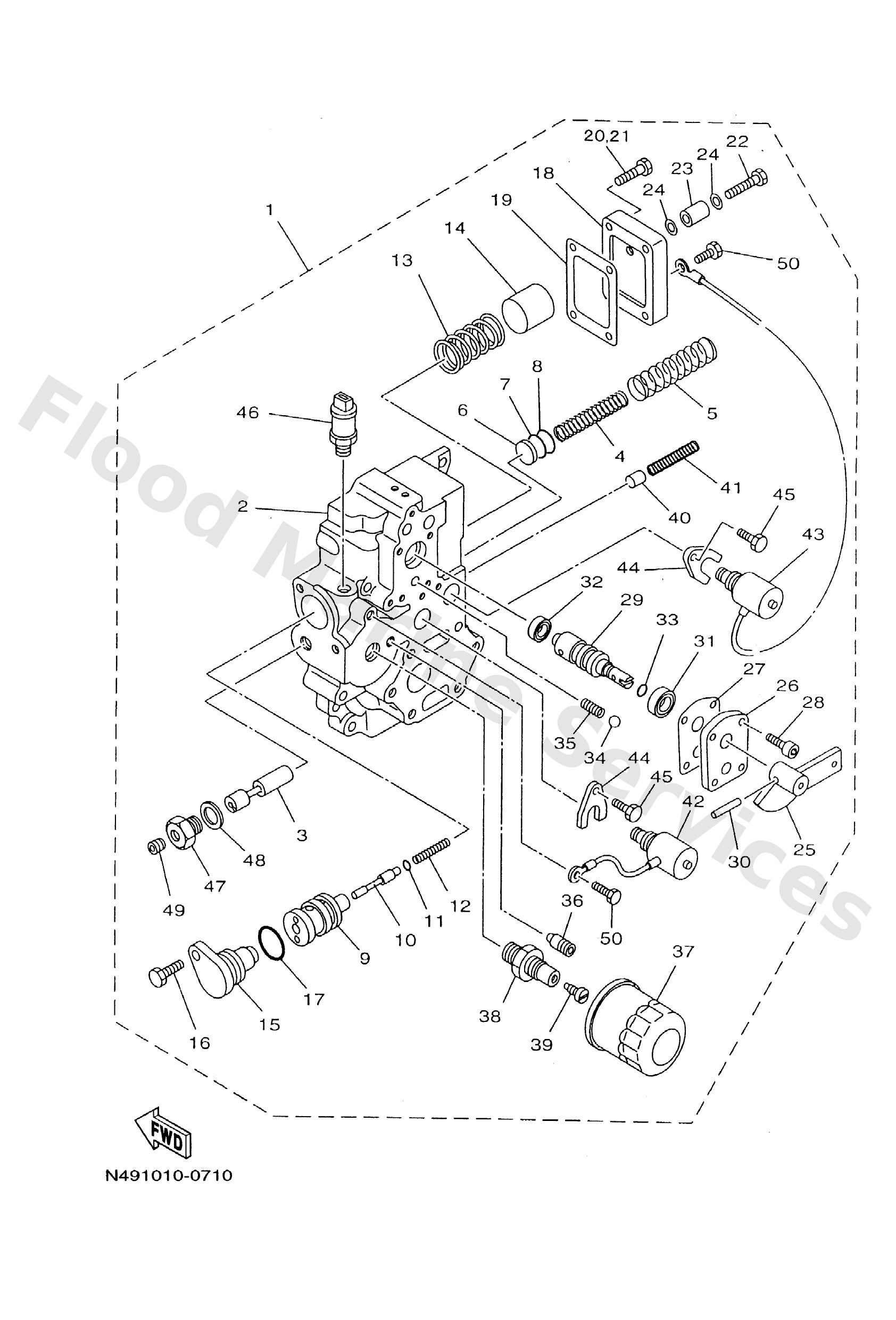

Diagram: SELECTOR VALVE (MGNV123-6)
Parts List
Reference
Description
Price
1
N4918210B0
Selector Valve assembly.
Loading…
↗
2
N4818201B0
Valve Body Comp.
Loading…
↗
3
N4818217B0
56-
Loading…
↗
4
N4918223B0
56-
Loading…
↗
5
N4918224B0
56-
Loading…
↗
6
N4817059B0
Washer,2
Loading…
↗
7
N4817058B0
Washer,1
Loading…
↗
8
N482471YB0
Liner
Loading…
↗
9
N4918263B0
56-
Loading…
↗
10
N4918245B0
56-
Loading…
↗
11
N4824629B0
Ring
Loading…
↗
12
N4818225B0
56-
Loading…
↗
13
N4818337B0
56-
Loading…
↗
14
N4818216B0
Piston,2
Loading…
↗
15
N4817076B0
Cover
Loading…
↗
16
71A1703100
Bolt, gear 1
Loading…
↗
17
N4812439B0
O-Ring
Loading…
↗
18
N4818231B0
56-
Loading…
↗
19
N4817935B0
Gasket,6
Loading…
↗
20
9701208025
Bolt, hexagon
Loading…
↗
21
9701208020
Bolt, hexagon
Loading…
↗
22
N4816739B0
Screw
Loading…
↗
23
N4818175B0
Spacer
Loading…
↗
24
N4817067B0
Washer, Seal 1
Loading…
↗
25
N4818191B0
Lever
Loading…
↗
26
N4818232B0
56-
Loading…
↗
27
N4817936B0
Gasket,7
Loading…
↗
