ME750TIH (2005)
SELECTOR VALVE ASSY (MGNV123-6)

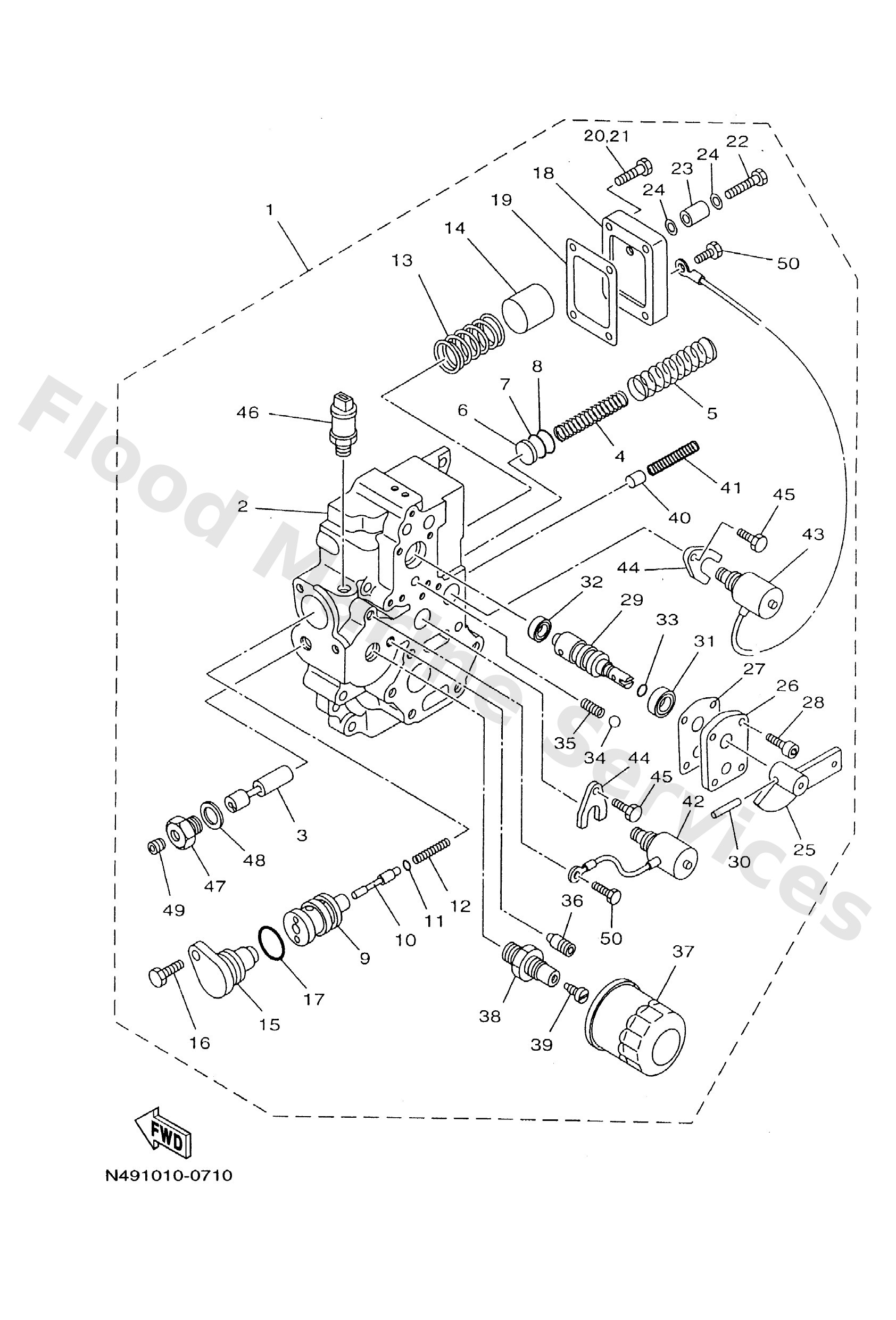

Diagram: SELECTOR VALVE ASSY (MGNV123-6)
Parts List
Reference
Description
Price
28
9131805014
Bolt, socket
Loading…
↗
29
N4818212B0
Stem,Valve
Loading…
↗
30
7051706900
Pin, special
Loading…
↗
31
N0217422N0
Bearing 1
Loading…
↗
32
N0217423N0
Bearing 2
Loading…
↗
33
N4813016B0
O-Ring
Loading…
↗
34
7051821800
Ball
Loading…
↗
35
N4818222B0
56-
Loading…
↗
36
N411342100
Strainer 2
Loading…
↗
37
5GH1344000
Element assembly, oil cleaner
Loading…
↗
38
N211705600
Bolt, Union 1
Loading…
↗
39
6884534100
Plug, drain
Loading…
↗
40
N4818246B0
56-
Loading…
↗
41
N2818123N0
Spring
Loading…
↗
42
N218612002
Solenoid Valve assembly
Loading…
↗
43
N218613002
Solenoid Valve assembly 2
Loading…
↗
44
N211721500
Plate, setting
Loading…
↗
45
9752206712
Bolt
Loading…
↗
46
N418368801
Sensor assembly
Loading…
↗
47
N4817078B0
Plug 1
Loading…
↗
48
N4817068B0
Washer, Seal 2
Loading…
↗
49
N4817079B0
Plug 2
Loading…
↗
50
N4814496B0
56-
Loading…
↗
