Yamaha Outboard Parts - SELECTOR VALVE ATTCHMENT PARTS (MGNV123-6) - ME750TIH (2005) | Flood Marine

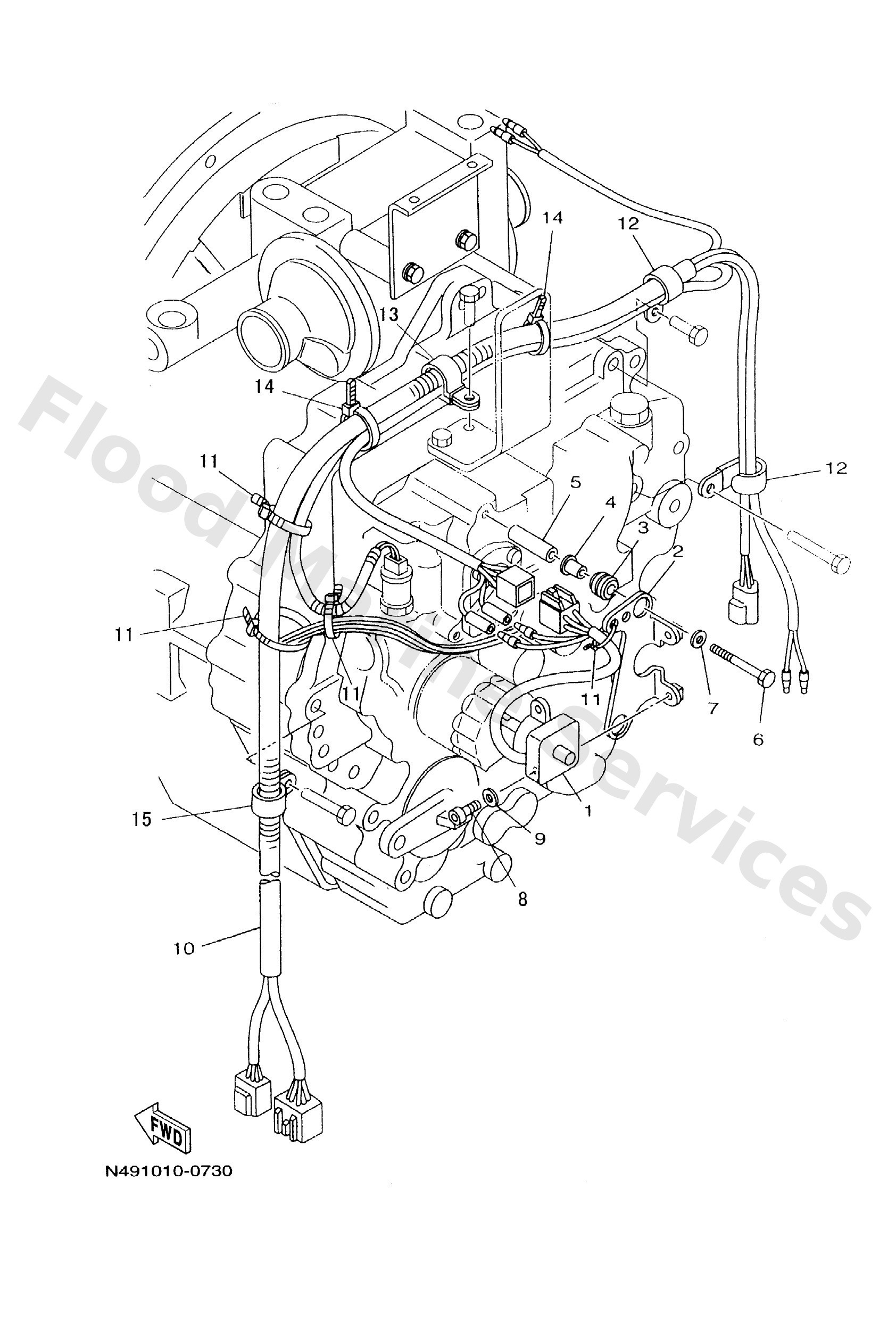

Diagram: SELECTOR VALVE ATTCHMENT PARTS (MGNV123-6)

Diagram

Parts List

Reference
Description
Price


1
N418254001
Neutral Switch assembly
Loading…

↗
2
N418255400
Stay, Neutral Switch
Loading…

↗
3
9048010M23
Grommet(6k7)
Loading…

↗
4
9038706M60
Collar (6h3)
Loading…

↗
5
N4818581B0
60-
Loading…

↗
6
N4814777B0
60-
Loading…

↗
7
72X45677N0
Washer
Loading…

↗
8
9131805014
Bolt, socket
Loading…

↗
10
N418358Y01
Wire Harness Comp.
Loading…

↗
11
N4812492B0
Clamp 2
Loading…

↗
12
N4912493B0
Clamp 3
Loading…

↗
13
9046108072
Clamp (727)
Loading…

↗
14
9046513M24
Band, switch cord
Loading…

↗
15
N4812491B0
Clamp 1
Loading…

↗
