Yamaha Outboard Parts - STARTER - 15FMH (2014) | Flood Marine

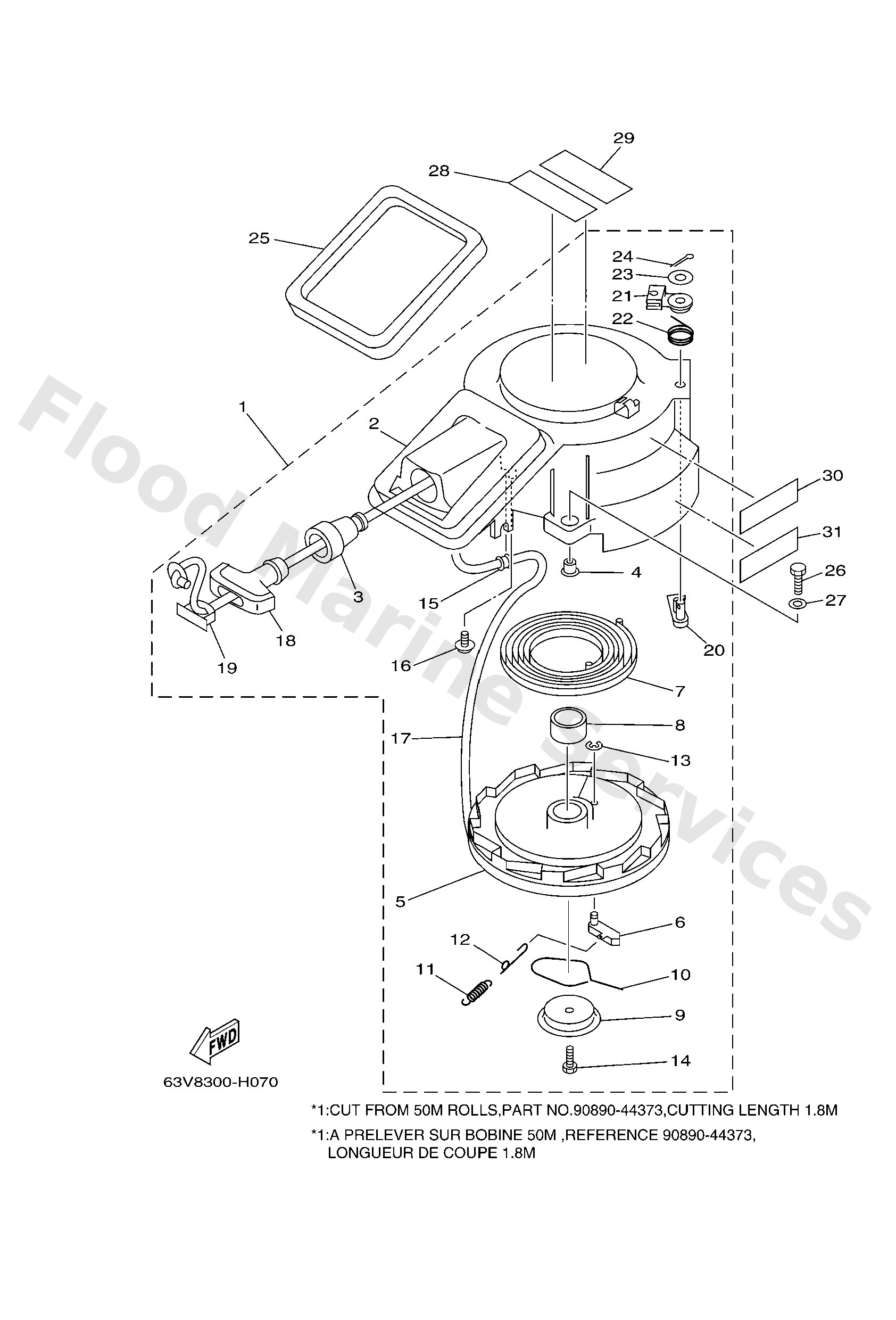

Diagram: STARTER

Diagram

Parts List

Reference
Description
Price


1
63V1571013
Starter assembly
Loading…

↗
2
63V1571102 Go to P/N ) PE0-OM-140015
Case, starter
Loading…

↗
3
63V1579501
Guide, rope
Loading…

↗
4
9038706M05
Collar(6h4)
Loading…

↗
5
63V1571400
Drum, sheave
Loading…

↗
6
63V1574100
Pawl, drive
Loading…

↗
7
63V1571300
Spring, starter
Loading…

↗
8
63V1575300
Bush
Loading…

↗
9
63V1571600 Go to P/N ) PE0-OM-140015
Plate, drive
Loading…

↗
10
63V1570501 Go to P/N ) PE0-OM-140015
Spring, drive pawl
Loading…

↗
11
63V1576701
Spring
Loading…

↗
12
63V1578401
Spring, return
Loading…

↗
13
63V1574400
Circlip
Loading…

↗
14
63V1576800 Go to P/N ) PE0-OM-140015
Screw
Loading…

↗
15
63V1576400
Collar 1
Loading…

↗
16
63V1579300
Screw
Loading…

↗
17
* *1
item_description
Loading…

↗
18
6G11575500
Handle, starter
Loading…

↗
19
6G11577900
Cover
Loading…

↗
20
63V1579400
Stopper
Loading…

↗
21
63V1574800
Plunger, starter stop
Loading…

↗
22
63V1573400
Spring, return
Loading…

↗
23
63V1572600
Washer, flat
Loading…

↗
24
9149016018
Pin, cotter (e57)
Loading…

↗
25
63V1576200
Seal, rubber 2
Loading…

↗
26
9709506020
Bolt(7u8)
Loading…

↗
27
9299506600
Washer, plain (646)
Loading…

↗
28
6AH8199540
Label, warning
Loading…

↗
29
6AH8199550
Label, warning
Loading…

↗
30
6AH8199440
Label, safety
Loading…

↗
31
6AH8199450
Label, safety
Loading…

↗
