15FMH (2023)
STARTER

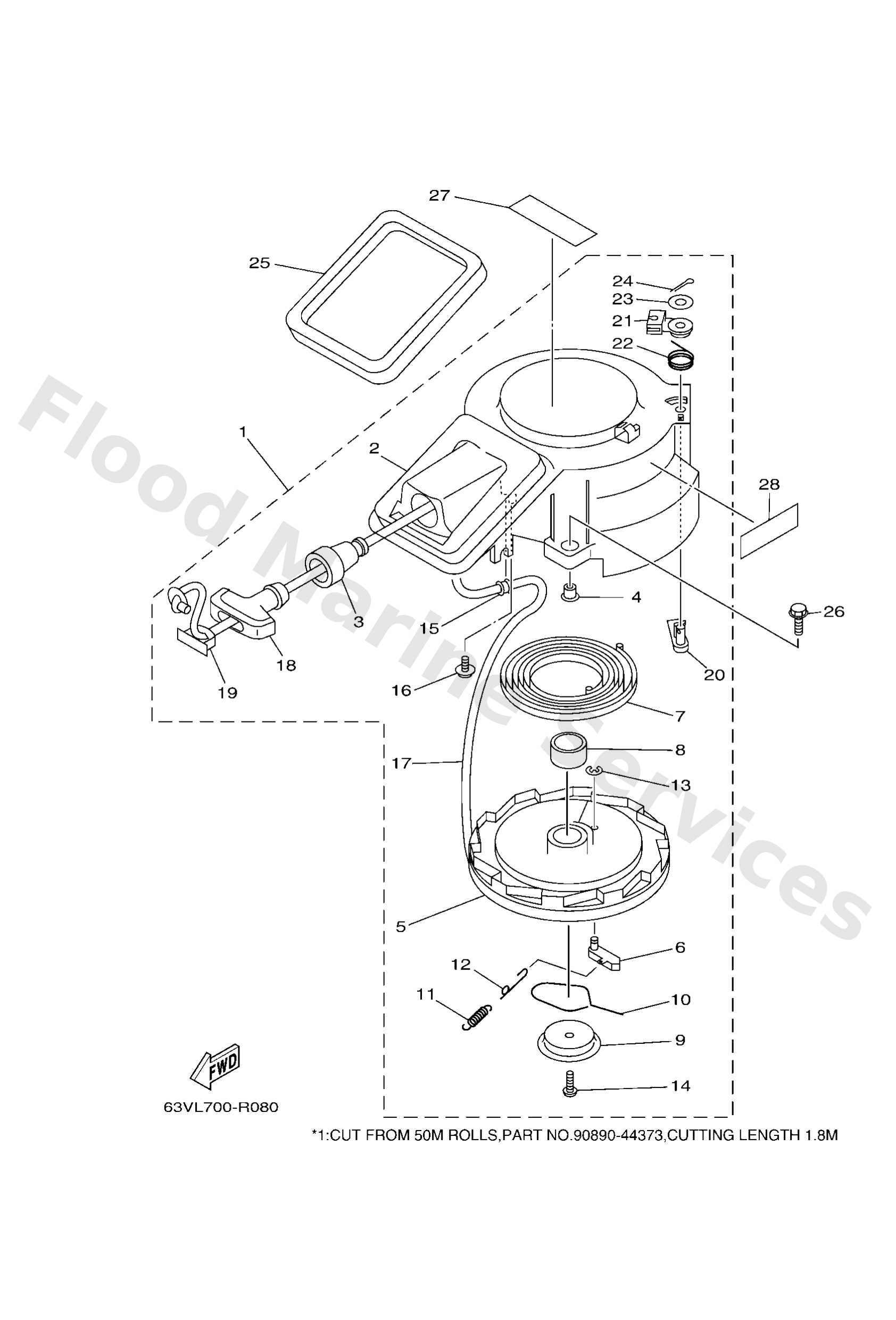

Diagram: STARTER
Parts List
Reference
Description
Price
1
63V1571021
WITH SAFETY DEVICE
Starter assembly
Loading…
↗
2
63V1571110
Case, starter
Loading…
↗
3
63V1579501
Guide, rope
Loading…
↗
4
9038706M05
Collar(6h4)
Loading…
↗
5
63V1571400
Drum, sheave
Loading…
↗
6
63V1574100
Pawl, drive
Loading…
↗
7
63V1571300
Spring, starter
Loading…
↗
8
63V1575300
Bush
Loading…
↗
9
63V1571610
Plate, drive
Loading…
↗
10
63V1570510
Spring, drive pawl
Loading…
↗
11
63V1576701
Spring
Loading…
↗
12
68T1578400
Spring, return
Loading…
↗
13
63V1574400
Circlip
Loading…
↗
14
68T1579300
Screw
Loading…
↗
15
63V1576400
Collar 1
Loading…
↗
16
63V1579300
Screw
Loading…
↗
17
*
*1
item_description
Loading…
↗
18
6G11575500
Handle, starter
Loading…
↗
19
6G11577900
Cover
Loading…
↗
20
63V1579400
Stopper
Loading…
↗
21
63V1574800
Plunger, starter stop
Loading…
↗
22
63V1573400
Spring, return
Loading…
↗
23
63V1572600
Washer, flat
Loading…
↗
24
9149016018
Pin, cotter (e57)
Loading…
↗
25
63V1576200
Seal, rubber 2
Loading…
↗
26
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
27
6EE8199540
Label, warning
Loading…
↗
28
6EE8199440
Label, safety
Loading…
↗
