20CMH (2002)
STARTER

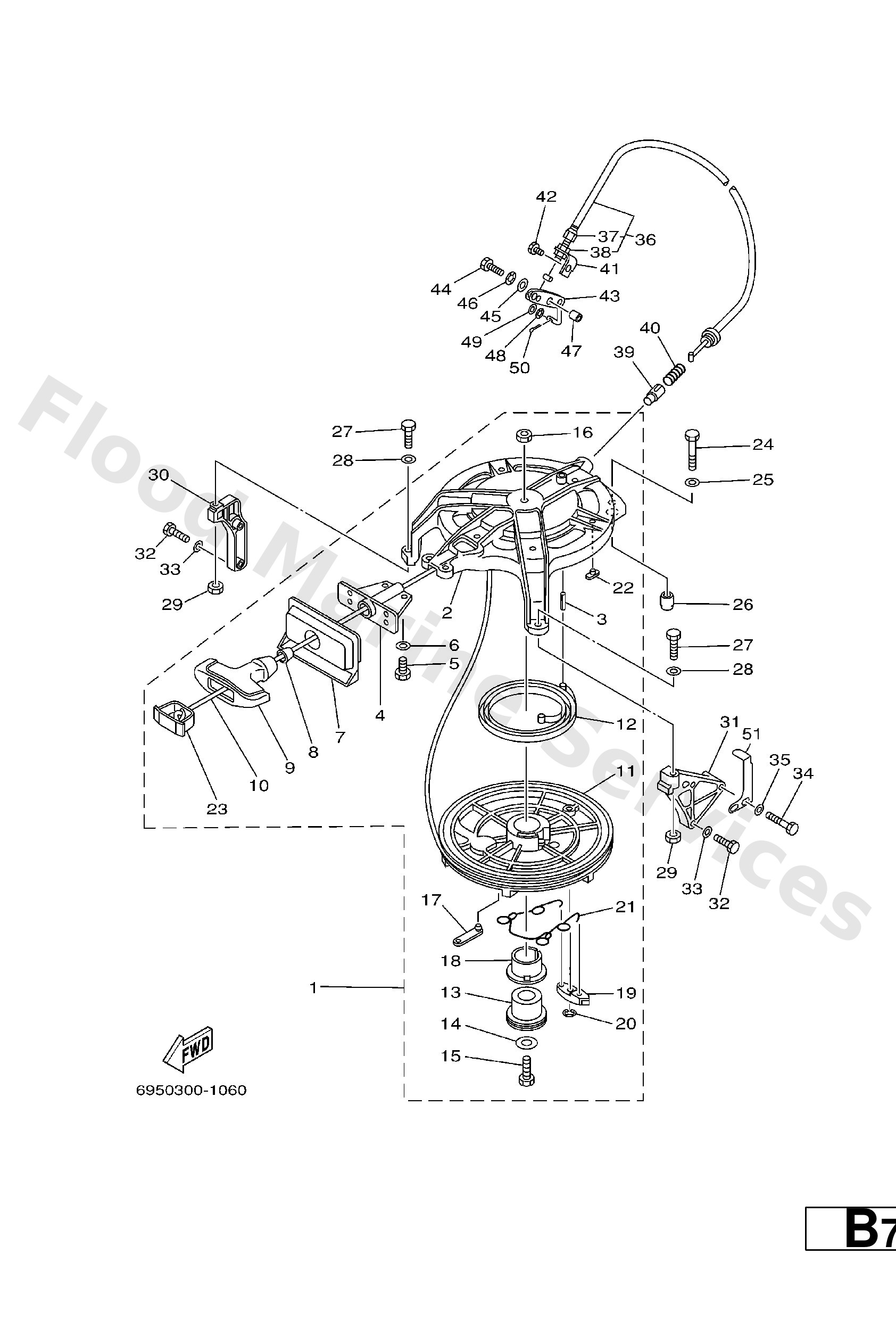

Diagram: STARTER
Parts List
Reference
Description
Price
1
6891571004
Starter assembly
Loading…
↗
2
676157110194
Case, Starter
Loading…
↗
3
9169040020
Pin, spring
Loading…
↗
4
689157580294
Guide, Rope
Loading…
↗
5
97095--06016
Bolt, hexagon deep recess
Loading…
↗
6
92995--06600
Washer, plain (646)
Loading…
↗
7
6891576201
Seal, Rubber 2
Loading…
↗
8
6891578900
Damper
Loading…
↗
9
689--15755--01
Handle, starter
Loading…
↗
10
*
item_description
Loading…
↗
11
676157140094
Drum, Sheave
Loading…
↗
12
9051009M00
Spring, starter (676)
Loading…
↗
13
6761571700
Shaft, Starter
Loading…
↗
14
9020108309
Washer, Plate
Loading…
↗
15
97013--08025
Bolt (682)
Loading…
↗
16
9530308600
Nut(6l2)
Loading…
↗
17
6761579901
Clip
Loading…
↗
18
9038635M01
Bushing (676)
Loading…
↗
19
676--15741--03
Pawl, drive
Loading…
↗
20
93430--06M02
Circlip (689)
Loading…
↗
21
6761570500
Spring, pawl drive
Loading…
↗
22
6761577300
Stay 3
Loading…
↗
23
6F5--15779--02
Cover
Loading…
↗
24
97095--08035
Bolt(70w)
Loading…
↗
25
92995--08600
Washer, plain (663)
Loading…
↗
26
99530--12016
Pin, dowel
Loading…
↗
27
97095--06030
Bolt(jf7)
Loading…
↗
29
95380--06600
Nut(661)
Loading…
↗
30
6H7--15771--01--94
Stay 1
Loading…
↗
31
656--15772--00--94
Stay 2
Loading…
↗
32
97013--06025
Bolt(62y)
Loading…
↗
33
92903--06600
Washer, plain (646)
Loading…
↗
34
97013--06045
Bolt, hexagon
Loading…
↗
36
6561577000
Cable Comp., Starter Stop
Loading…
↗
37
9012306049
Bolt
Loading…
↗
39
656--15748--00
Plunger, starter stop
Loading…
↗
40
90501--10227
Spring, comprreshion(656)
Loading…
↗
41
6561577400
Stay 4
Loading…
↗
42
97095--06010
Bolt
Loading…
↗
43
6561574900
Link comp, starter stop
Loading…
↗
44
97095--06020
Bolt(7u8)
Loading…
↗
46
90206--08010
Washer(656)
Loading…
↗
47
9038706568
Collar (3l6)
Loading…
↗
48
90206--05005
Washer, wave(656)
Loading…
↗
49
92903--05600
Washer, plain (646)
Loading…
↗
50
91490--16010
Pin, cotter
Loading…
↗
51
6898133201
Plate, timming
Loading…
↗
