20DMHO (2003)
STARTER

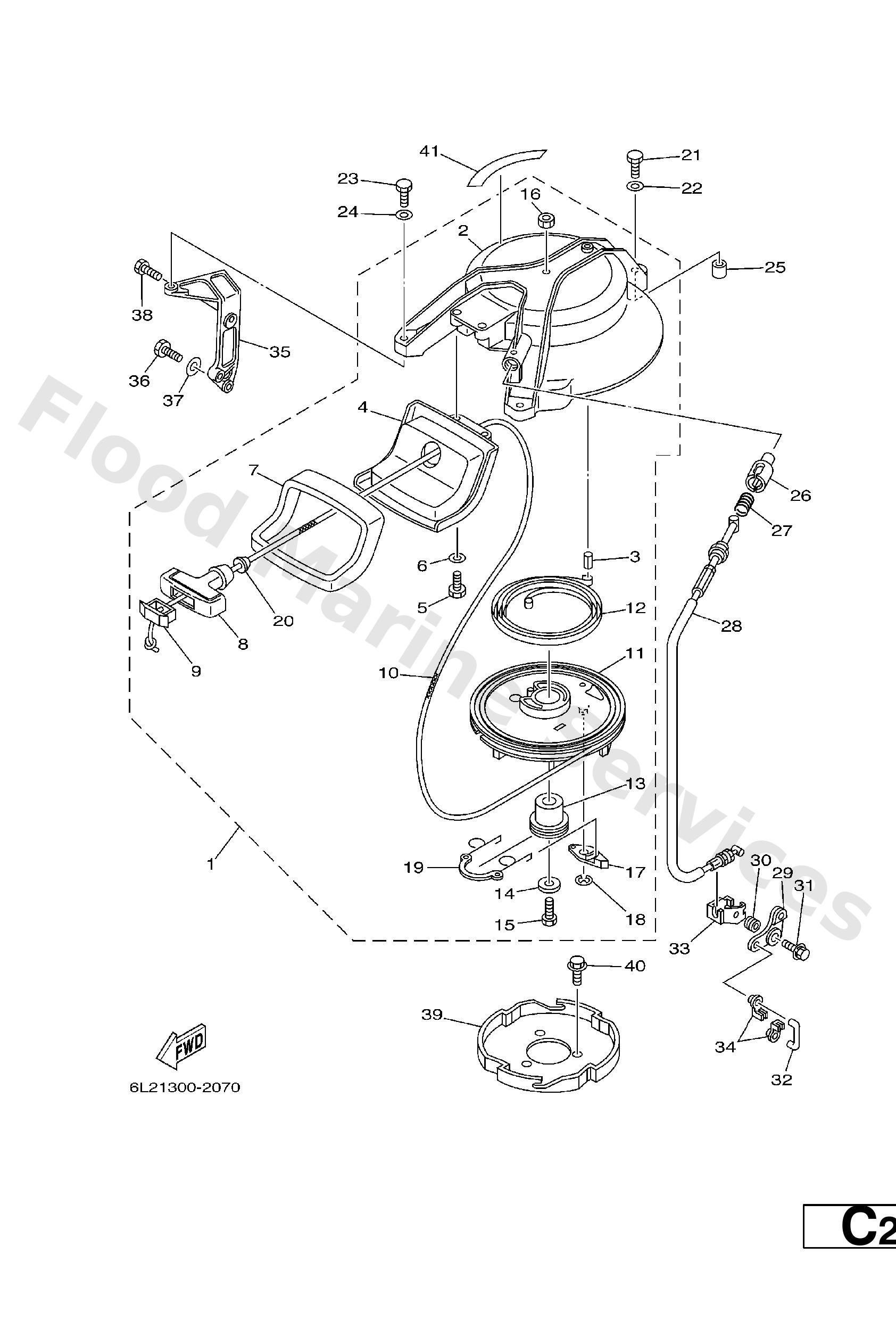

Diagram: STARTER
Parts List
Reference
Description
Price
1
6L2−15710−02
Starter assembly
Loading…
↗
2
6L2−15711−00−94
Case, starter
Loading…
↗
3
91690−40014
Pin, spring (6f2)
Loading…
↗
4
6L2−15758−01−94
Guide, rope
Loading…
↗
5
97095−06016
Bolt, hexagon deep recess
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
6L2−15762−00
Seal, rubber 2
Loading…
↗
8
689−15755−01
Handle, starter
Loading…
↗
9
6F5−15779−02
Cover
Loading…
↗
10
*
item_description
Loading…
↗
11
6J8−15714−00
Drum, sheave
Loading…
↗
12
90510−08M04
Spring, spiral (677)
Loading…
↗
13
677−15717−01
Shaft
Loading…
↗
14
90201−06060
Washer, plate
Loading…
↗
15
97013−06025
Bolt(62y)
Loading…
↗
16
95303−06700
Nut
Loading…
↗
17
676−15741−03
Pawl, drive
Loading…
↗
18
93430−06M02
Circlip (689)
Loading…
↗
19
6J8−15705−00
Spring, drive pawl
Loading…
↗
20
6A0−15789−00
Damper
Loading…
↗
21
97095−06035
Bolt(j52)
Loading…
↗
23
97095−06025
Bolt
Loading…
↗
25
99530−10014
Pin, dowel
Loading…
↗
26
656−15748−00
Plunger, starter stop
Loading…
↗
27
90501−10227
Spring, comprreshion(656)
Loading…
↗
28
6L2−15770−00
Cable comp., starter stop
Loading…
↗
29
6L2−15746−00
Arm
Loading…
↗
30
90387−06M51
Collar (6g0)
Loading…
↗
31
90119−06M53
Bolt, with washer(6l2)
Loading…
↗
32
6L2−15747−00
Link
Loading…
↗
33
6L2−15774−00
Stay 4
Loading…
↗
34
661−41262−02
Joint, choke lever
Loading…
↗
35
6L2−15772−00−94
Stay 2
Loading…
↗
36
97013−06020
Bolt(62y)
Loading…
↗
37
92903−06600
Washer, plain (646)
Loading…
↗
38
97095−06020
Bolt(7u8)
Loading…
↗
39
6L2−15723−01
Pulley, starter
Loading…
↗
40
90105−08M10
Bolt (6a0)
Loading…
↗
41
6L2−13437−21
Mark, caution
Loading…
↗
