25BMH (2002)
STARTER

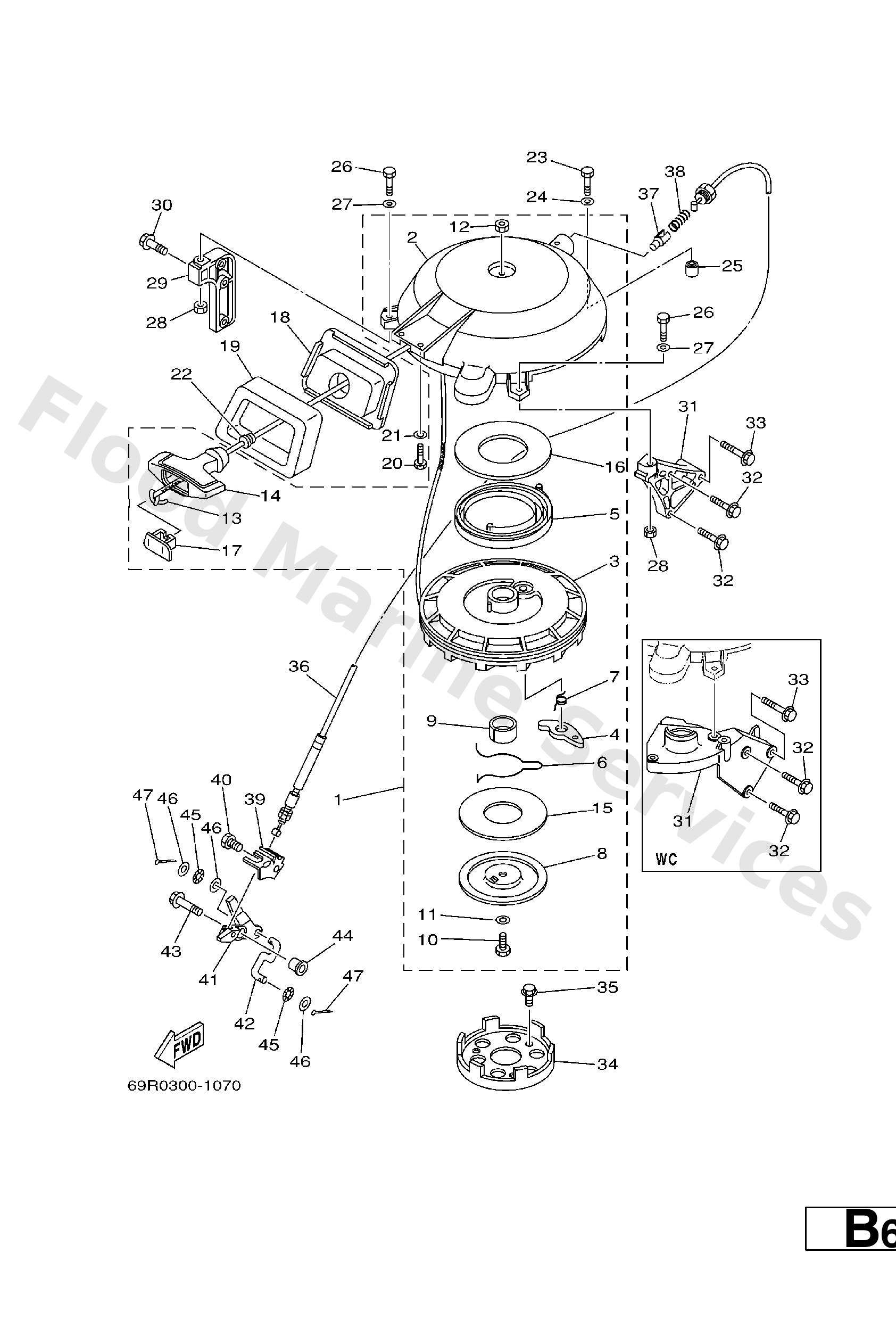

Diagram: STARTER
Parts List
Reference
Description
Price
1
61NW157111
Starter assembly
Loading…
↗
2
61N--15711--10
Case, starter
Loading…
↗
3
6G0--15714--01
Drum, sheave
Loading…
↗
4
6F5--15741--01
Powl, drive
Loading…
↗
5
6F5--15713--01
Spring, starter
Loading…
↗
6
61N--15715--00
Spring, drive plate
Loading…
↗
7
61N--15734--00
Spring, return
Loading…
↗
8
6F5--15716--01
Drive, plate
Loading…
↗
9
6G0--15754--00
Bushing 2
Loading…
↗
10
97313--08030
Bolt
Loading…
↗
11
6F5--15726--01
Washer, lock
Loading…
↗
12
95303--08700
Nut(661)
Loading…
↗
13
*
item_description
Loading…
↗
14
689--15755--01
Handle, starter
Loading…
↗
15
6F5--15764--00
Collar
Loading…
↗
16
6F5--15739--00
Washer, thrust 2
Loading…
↗
17
6F5--15779--02
Cover
Loading…
↗
18
61N15758014D
Guide, Rope
Loading…
↗
19
61N--15762--00
Seal, rubber 2
Loading…
↗
20
97095--06016
Bolt, hexagon deep recess
Loading…
↗
21
92995--06600
Washer, plain (646)
Loading…
↗
22
6A0--15789--00
Damper
Loading…
↗
23
97095--06035
Bolt(j52)
Loading…
↗
25
99530--10014
Pin, dowel
Loading…
↗
28
95380--06600
Nut(661)
Loading…
↗
29
6H7--15771--01--94
Stay 1
Loading…
↗
30
90119--06MA3
Bolt, with washer
Loading…
↗
31
656--15772--00--94
Stay 2
Loading…
↗
31
61T--15772--01--94
Stay 2
Loading…
↗
32
90119--06MA4
Bolt, with washer
Loading…
↗
33
90119--06025
Bolt, with washer
Loading…
↗
34
6F5--15723--01
Pully, starter
Loading…
↗
35
90105--08M10
Bolt (6a0)
Loading…
↗
36
61T--15770--00
Cable comp., starter stop
Loading…
↗
37
656--15748--00
Plunger, starter stop
Loading…
↗
38
90501--10227
Spring, comprreshion(656)
Loading…
↗
39
69P--15774--00
Stay 4
Loading…
↗
40
97095--06010
Bolt
Loading…
↗
41
69P--15746--00
Arm
Loading…
↗
42
689--15747--70
Link
Loading…
↗
43
90119--06M23
Bolt, with washer(61r)
Loading…
↗
44
90387--06013
Collar
Loading…
↗
45
90206--05005
Washer, wave(656)
Loading…
↗
46
92903--05600
Washer, plain (646)
Loading…
↗
47
91490--16010
Pin, cotter
Loading…
↗
