25BMH (2003)
STARTER

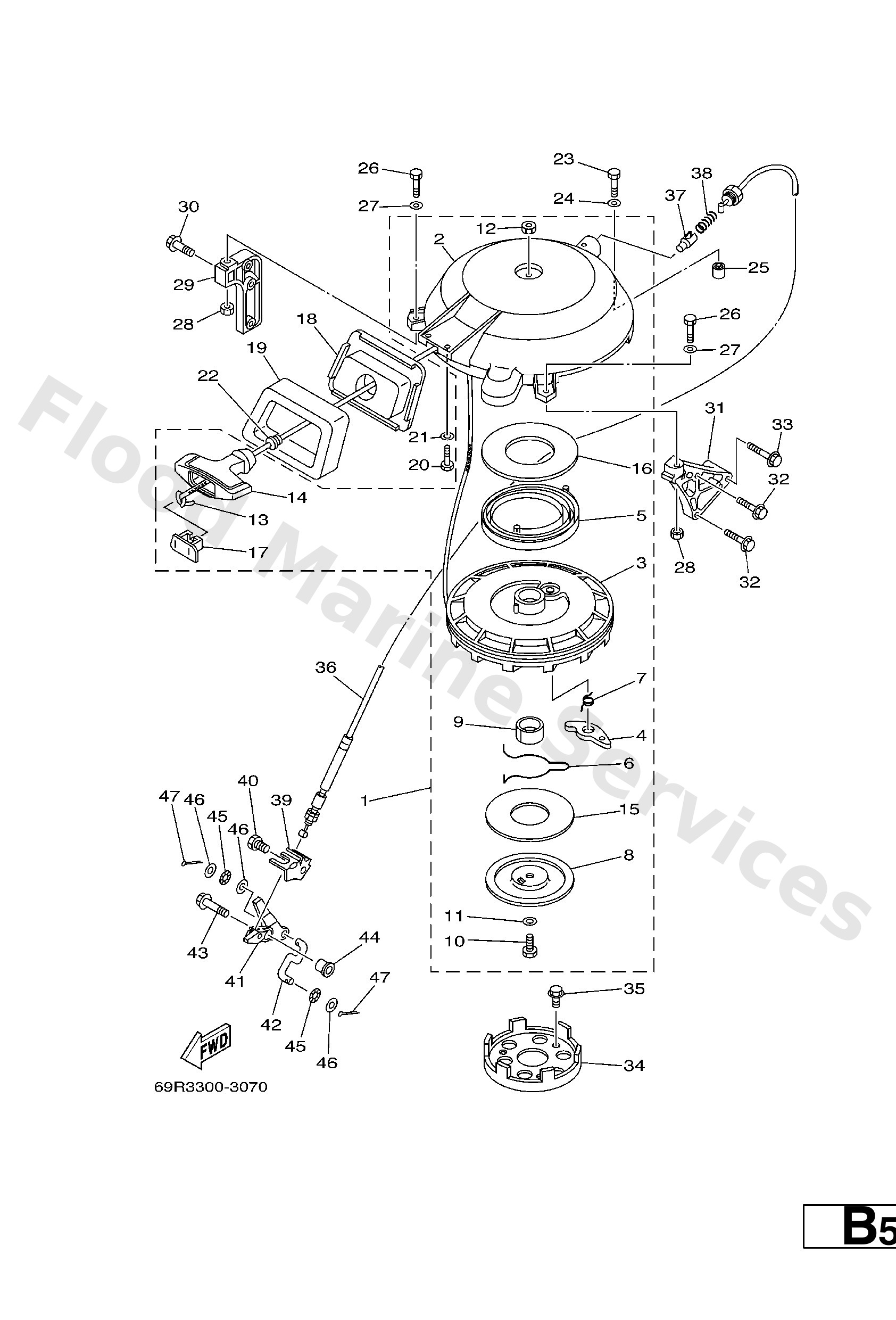

Diagram: STARTER
Parts List
Reference
Description
Price
1
61N−W1571−11
Starter assembly
Loading…
↗
2
61N−15711−10
Case, starter
Loading…
↗
3
6G0−15714−01
Drum, sheave
Loading…
↗
4
6F5−15741−01
Powl, drive
Loading…
↗
5
6F5−15713−01
Spring, starter
Loading…
↗
6
61N−15715−00
Spring, drive plate
Loading…
↗
7
61N−15734−00
Spring, return
Loading…
↗
8
6F5−15716−01
Drive, plate
Loading…
↗
9
6G0−15754−00
Bushing 2
Loading…
↗
10
97013−08030
Bolt
Loading…
↗
11
6F5−15726−01
Washer, lock
Loading…
↗
12
95303−08700
Nut(661)
Loading…
↗
13
*
item_description
Loading…
↗
14
689−15755−01
Handle, starter
Loading…
↗
15
6F5−15764−00
Collar
Loading…
↗
16
6F5−15739−00
Washer, thrust 2
Loading…
↗
17
6F5−15779−02
Cover
Loading…
↗
18
61N−15758−01−4D
Guide, Rope
Loading…
↗
19
61N−15762−00
Seal, rubber 2
Loading…
↗
20
97095−06016
Bolt, hexagon deep recess
Loading…
↗
21
92995−06600
Washer, plain (646)
Loading…
↗
22
6A0−15789−00
Damper
Loading…
↗
23
97095−06035
Bolt(j52)
Loading…
↗
25
99530−10014
Pin, dowel
Loading…
↗
28
95380−06600
Nut(661)
Loading…
↗
29
6H7−15771−01−94
Stay 1
Loading…
↗
30
90119−06MA3
Bolt, with washer
Loading…
↗
31
656−15772−00−94
Stay 2
Loading…
↗
33
90119−06025
Bolt, with washer
Loading…
↗
34
6F5−15723−01
Pully, starter
Loading…
↗
35
90105−08M10
Bolt (6a0)
Loading…
↗
36
61T−15770−00
Cable comp., starter stop
Loading…
↗
37
656−15748−00
Plunger, starter stop
Loading…
↗
38
90501−10227
Spring, comprreshion(656)
Loading…
↗
39
69P−15774−00
Stay 4
Loading…
↗
40
97095−06010
Bolt
Loading…
↗
41
69P−15746−00
Arm
Loading…
↗
42
689−15747−70
Link
Loading…
↗
43
90119−06M23
Bolt, with washer(61r)
Loading…
↗
44
90387−06013
Collar
Loading…
↗
45
90206−05005
Washer, wave(656)
Loading…
↗
46
92903−05600
Washer, plain (646)
Loading…
↗
47
91490−16010
Pin, cotter
Loading…
↗
