25VMH (2000)
STARTER

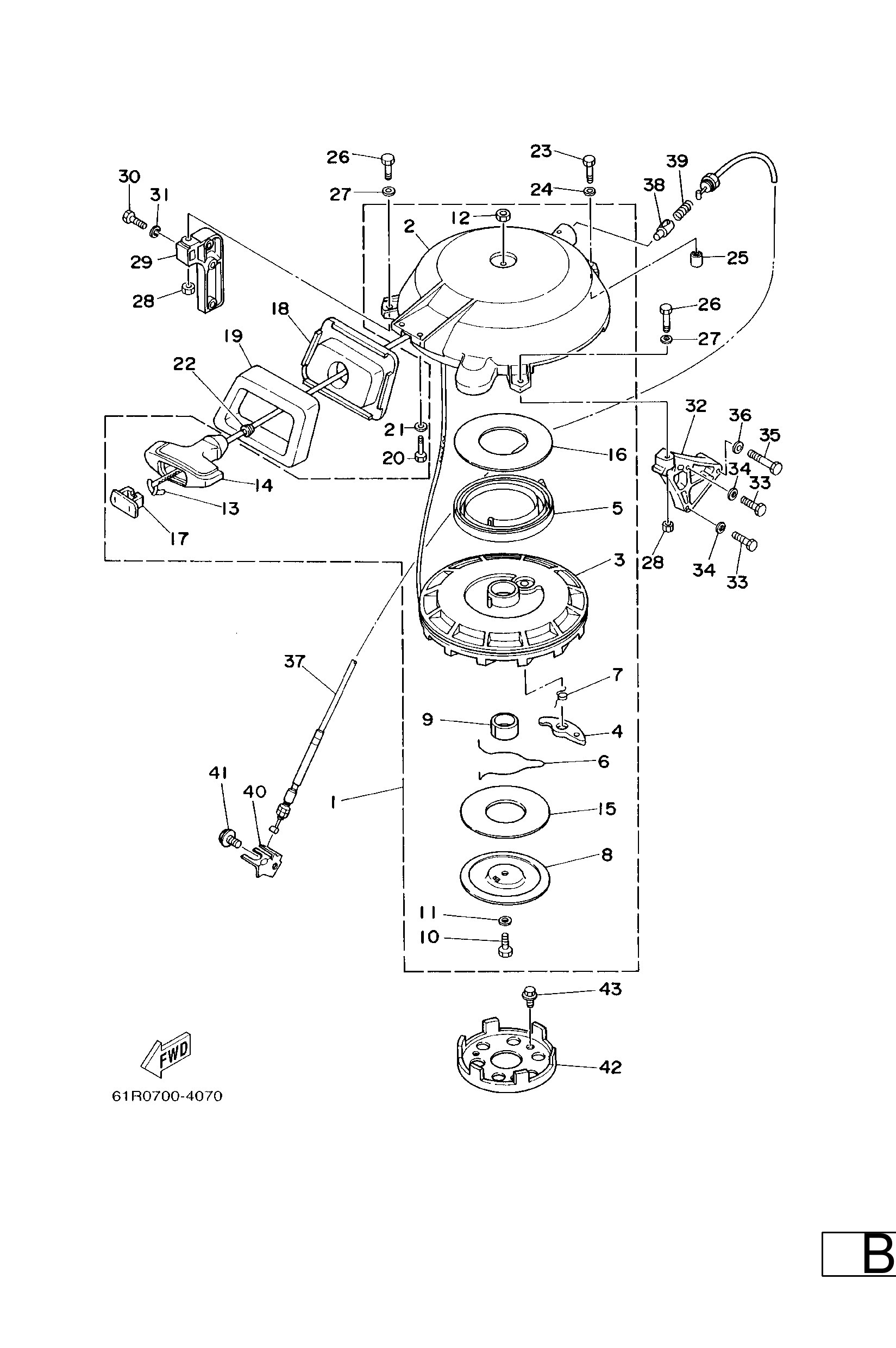

Diagram: STARTER
Parts List
Reference
Description
Price
1
61NW157110
Starter assembly
Loading…
↗
2
61N1571110
Case, starter
Loading…
↗
3
6G01571401
Drum, sheave
Loading…
↗
4
6F51574101
Powl, drive
Loading…
↗
5
6F51571301
Spring, starter
Loading…
↗
6
61N1571500
Spring, drive plate
Loading…
↗
7
61N1573400
Spring, return
Loading…
↗
8
6F51571601
Drive, plate
Loading…
↗
9
6G01575400
Bushing 2
Loading…
↗
10
9731308030
Bolt
Loading…
↗
11
6F51572601
Washer, lock
Loading…
↗
12
9530308700
Nut(661)
Loading…
↗
13
*
item_description
Loading…
↗
14
6891575501
Handle, starter
Loading…
↗
15
6F51576400
Collar
Loading…
↗
16
6F51573900
Washer, thrust 2
Loading…
↗
17
6F51577902
Cover
Loading…
↗
19
61N1576200
Seal, rubber 2
Loading…
↗
20
9709506016
Bolt, hexagon deep recess
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6A01578900
Damper
Loading…
↗
23
9709506035
Bolt(j52)
Loading…
↗
25
9953010014
Pin, dowel
Loading…
↗
28
9538006600
Nut(661)
Loading…
↗
29
6H7157710194
Stay 1
Loading…
↗
30
9701306025
Bolt(62y)
Loading…
↗
31
9290306600
Washer, plain (646)
Loading…
↗
32
656157720094
Stay 2
Loading…
↗
35
9701306045
Bolt, hexagon
Loading…
↗
37
61T1577000
Cable comp., starter stop
Loading…
↗
38
6561574800
Plunger, starter stop
Loading…
↗
39
9050110227
Spring, comprreshion(656)
Loading…
↗
40
61T157744094
Stay 4
Loading…
↗
41
9709506010
Bolt
Loading…
↗
42
6F51572301
Pully, starter
Loading…
↗
43
9010508M10
Bolt (6a0)
Loading…
↗
