3AMH (2002)
STARTER

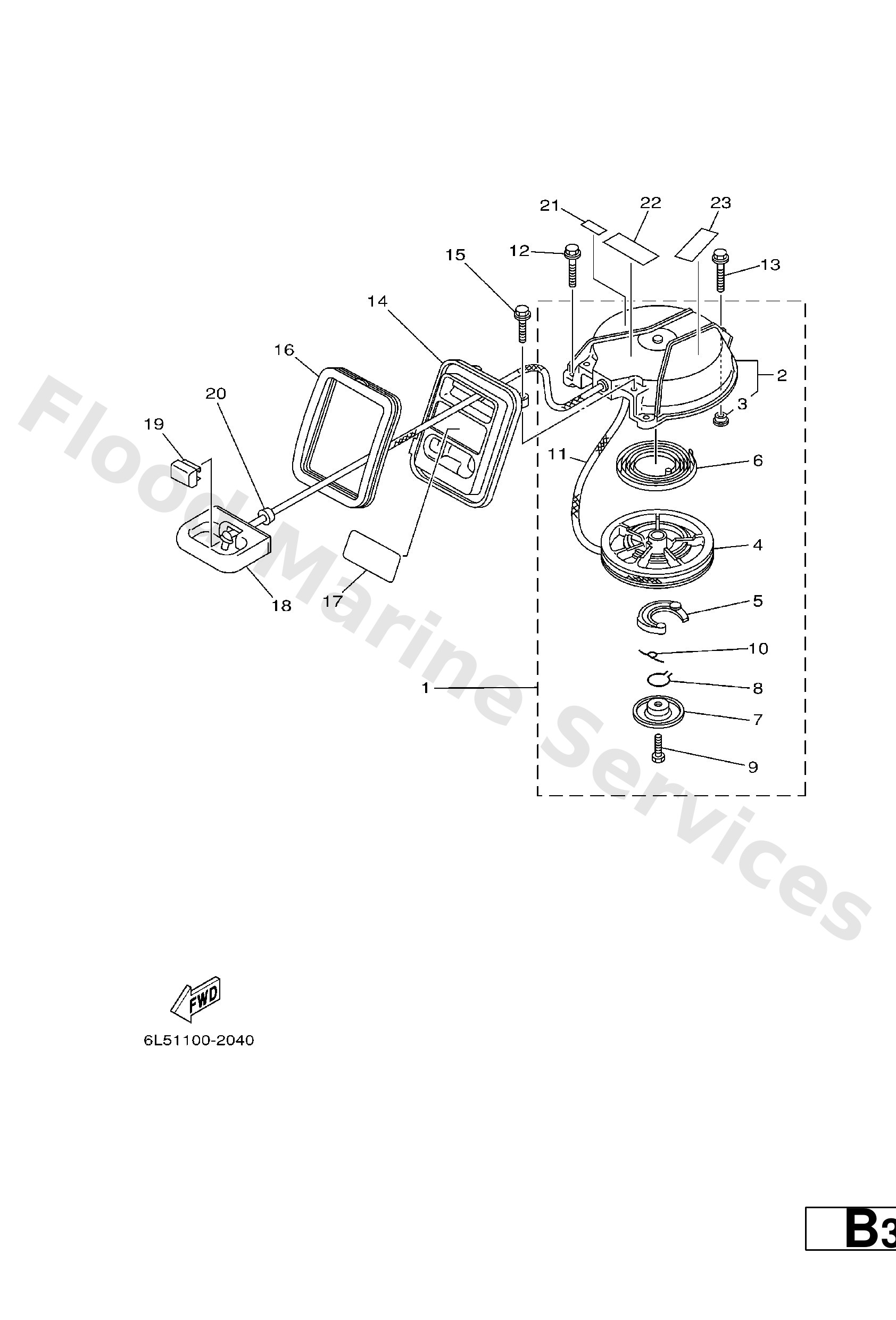

Diagram: STARTER
Parts List
Reference
Description
Price
1
6L5−15710−00
Starter assembly
Loading…
↗
2
6L5−15711−00
Case, starter
Loading…
↗
3
90387−06M70
Collar (6h5)
Loading…
↗
4
6L5−15714−00
Drum, sheave
Loading…
↗
5
6L5−15741−00
Pawl, drive
Loading…
↗
6
6L5−15713−00
Spring, starter
Loading…
↗
7
6L5−15716−00
Plate, drive
Loading…
↗
8
6A1−15705−00
Spring, drive pawl
Loading…
↗
9
97313−06012
Bolt(gh1)
Loading…
↗
10
6A1−15767−00
Spring, return
Loading…
↗
11
*
item_description
Loading…
↗
12
95895−06020
Bolt, flange(jk3)
Loading…
↗
13
95895−06035
Bolt, flange(4nx)
Loading…
↗
14
6L5−15758−00−98
Guide, rope
Loading…
↗
15
95895−06016
Bolt, flange deep recess
Loading…
↗
16
6L5−15761−00
Seal, rubber 1
Loading…
↗
17
6L5−42677−10
Graphic, front
Loading…
↗
18
6L5−15755−00
Handle, starter
Loading…
↗
19
6L5−15779−20
Cover
Loading…
↗
20
6L5−15789−00
Damper
Loading…
↗
21
6H8−42791−10
Mark 1
Loading…
↗
22
6A1−83625−41
Mark 5
Loading…
↗
23
6A1−83625−51
Mark 5
Loading…
↗
