3AMH (2007)
STARTER

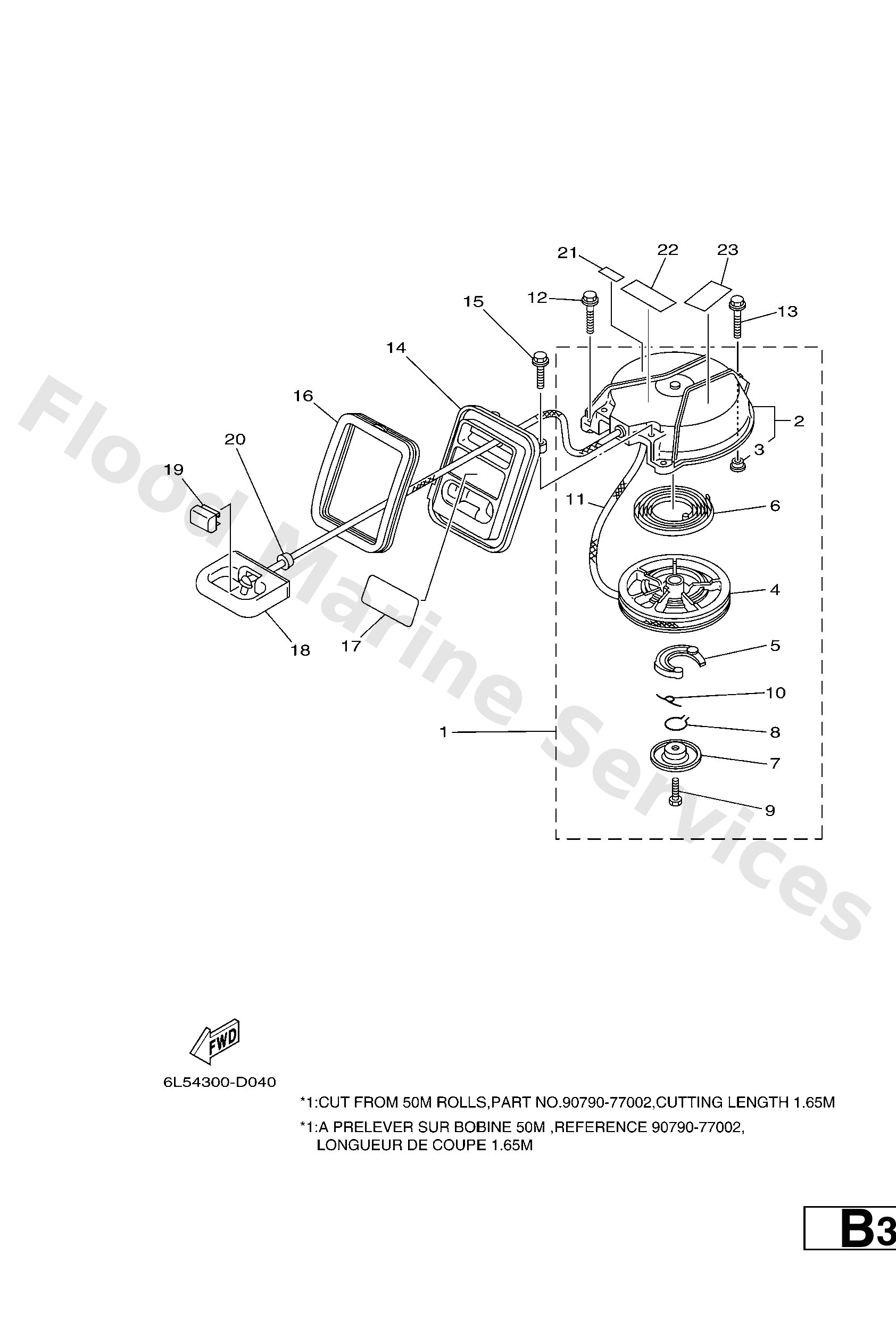

Diagram: STARTER
Parts List
Reference
Description
Price
1
6L51571000
Starter assembly
Loading…
↗
2
6L51571100
Case, starter
Loading…
↗
3
9038706M70
Collar (6h5)
Loading…
↗
4
6L51571400
Drum, sheave
Loading…
↗
5
6L51574100
Pawl, drive
Loading…
↗
6
6L51571300
Spring, starter
Loading…
↗
7
6L51571600
Plate, drive
Loading…
↗
8
6A11570500
Spring, drive pawl
Loading…
↗
9
9731306012
Bolt(gh1)
Loading…
↗
10
6A11576700
Spring, return
Loading…
↗
11
*
*1
item_description
Loading…
↗
12
9589506020
Bolt, flange(jk3)
Loading…
↗
13
9589506035
Bolt, flange(4nx)
Loading…
↗
14
6L5157580098
Guide, rope
Loading…
↗
15
9589506016
Bolt, flange deep recess
Loading…
↗
16
6L51576100
Seal, rubber 1
Loading…
↗
17
6L54267710
Graphic, front
Loading…
↗
18
6L51575500
Handle, starter
Loading…
↗
19
6L51577900
Cover
Loading…
↗
20
6L51578900
Damper
Loading…
↗
21
6H84279110
Mark 1
Loading…
↗
22
6A18362541
Mark 5
Loading…
↗
23
6A18362551
Mark 5
Loading…
↗
