4ACMH (2014)
STARTER

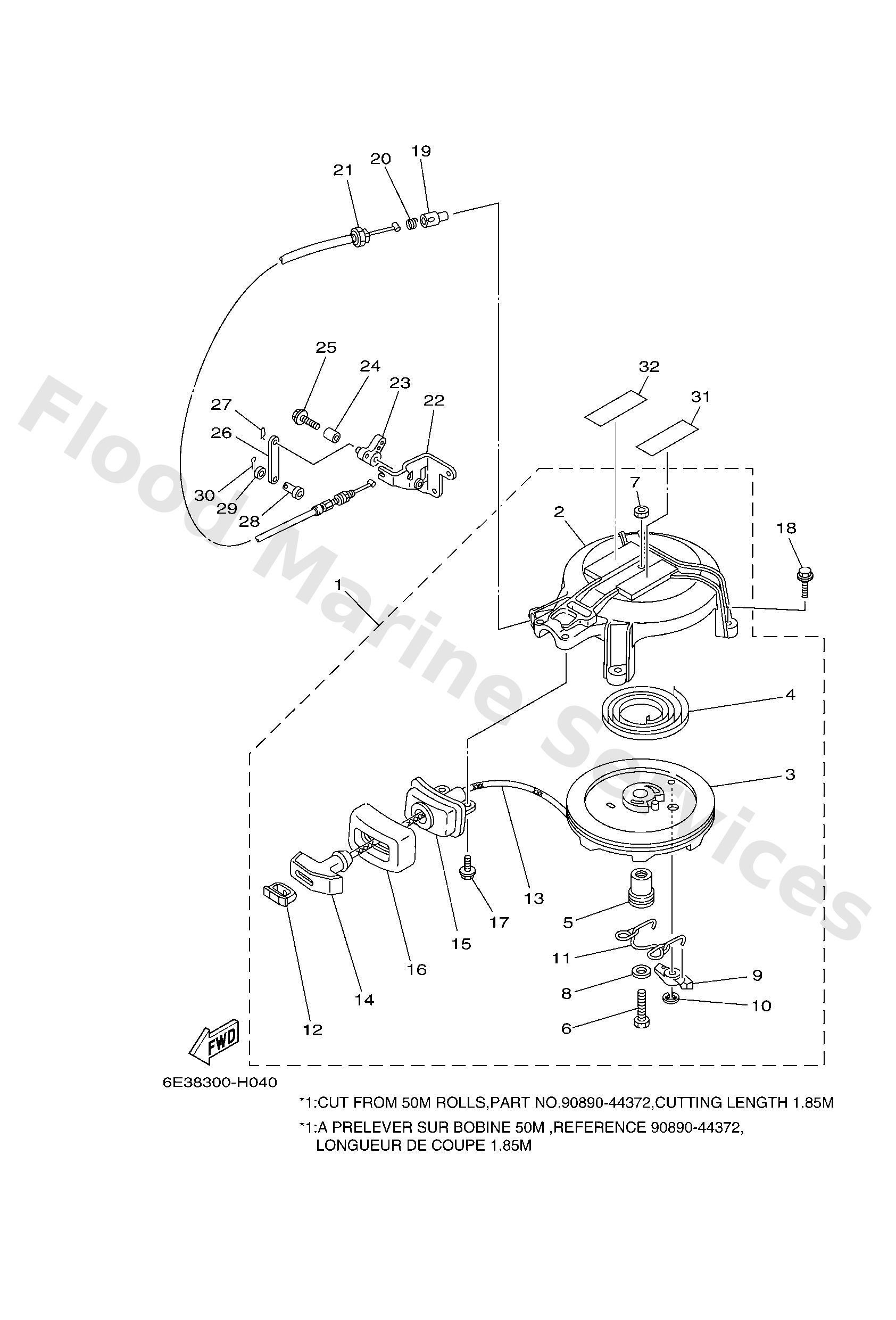

Diagram: STARTER
Parts List
Reference
Description
Price
1
6E4157107494
Starter assembly
Loading…
↗
1
6E0157107394
Starter assembly
Loading…
↗
2
6E41571172
Case, starter
Loading…
↗
3
6E01571401
Drum, sheave
Loading…
↗
4
9051008M03
Spring, spiral (6g1)
Loading…
↗
5
6E01571700
Shaft, starter
Loading…
↗
6
9731306035
Bolt(3rv)
Loading…
↗
7
9530306600
Nut(661)
Loading…
↗
8
9020106M30
Washer, plate (6a1)
Loading…
↗
9
6771574101
Pawl, drive
Loading…
↗
10
9343006M02
Circlip (689)
Loading…
↗
11
6E01570500
Spring drive pawl assembly
Loading…
↗
12
6G11577900
Cover
Loading…
↗
13
*
*1
item_description
Loading…
↗
14
6G11575500
Handle, starter
Loading…
↗
15
6E01575801
Guide, wire
Loading…
↗
15
6E31575801
Guide, wire
Loading…
↗
16
6E01576100
Seal, rubber 1
Loading…
↗
17
9010506M14
Bolt (6e0)
Loading…
↗
18
9589506020
Bolt, flange(jk3)
Loading…
↗
19
6561574800
Plunger, starter stop
Loading…
↗
20
9050110227
Spring, comprreshion(656)
Loading…
↗
21
6E41577070
Wire comp. starter stop
Loading…
↗
22
6E01577271
Stay 2
Loading…
↗
22
6E41577271
Stay 2
Loading…
↗
23
6E41574670
Arm
Loading…
↗
24
9038706504
Collar(650)
Loading…
↗
25
9011906M18
Bolt, with washer(61n)
Loading…
↗
26
6E41574770
Link
Loading…
↗
27
9046810005
Pin, hair 6264123500
Loading…
↗
28
9179005010
Pin (6e4)
Loading…
↗
29
9020205088
Washer, plate (666)
Loading…
↗
30
9149016010
Pin, cotter
Loading…
↗
31
6AH8199540
Label, warning
Loading…
↗
32
6AH8199550
Label, warning
Loading…
↗
