6CMH (2008)
STARTER

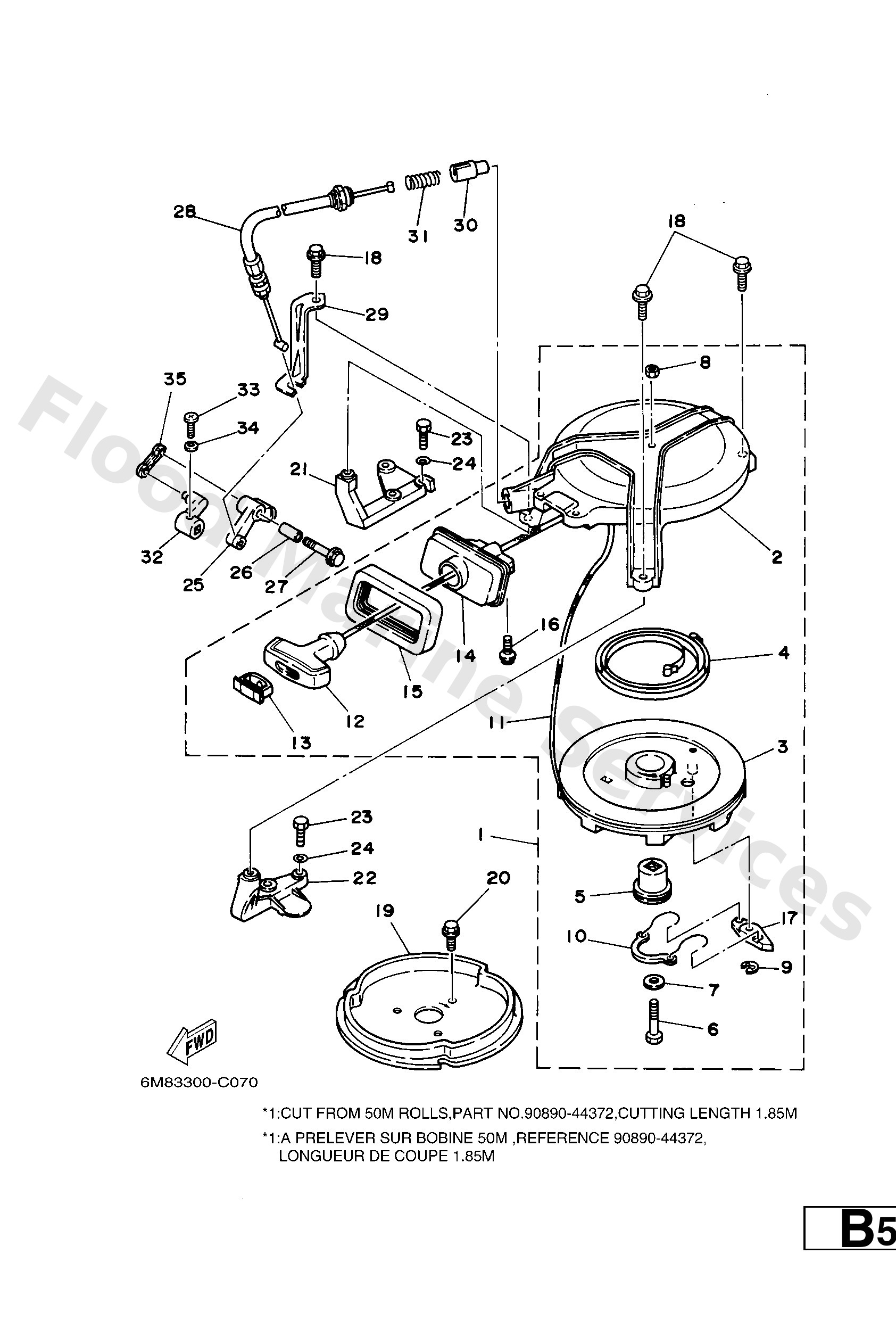

Diagram: STARTER
Parts List
Reference
Description
Price
1
6M8E571003
Starter assembly
Loading…
↗
2
6N0E57118094
Case, Starter
Loading…
↗
3
6M8E571400
Drum, sheave
Loading…
↗
4
9051008M03
Spring, spiral (6g1)
Loading…
↗
5
6G11571700
Shaft, starter
Loading…
↗
6
9701306035
Bolt(3rv)
Loading…
↗
7
9020106M30
Washer, plate (6a1)
Loading…
↗
8
9530306600
Nut(661)
Loading…
↗
9
9343006M02
Circlip (689)
Loading…
↗
10
6G11570500
Spring, drive pawl
Loading…
↗
11
*
*1
item_description
Loading…
↗
12
6G11575500
Handle, starter
Loading…
↗
13
6G11577900
Cover
Loading…
↗
14
6N0E575800
Guide, rope
Loading…
↗
15
6G11576200
Seal 2
Loading…
↗
16
9589506016
Bolt, flange deep recess
Loading…
↗
17
6771574101
Pawl, drive
Loading…
↗
18
9589506020
Bolt, flange(jk3)
Loading…
↗
19
6N0E57230094
Pulley, starter
Loading…
↗
20
9010506M29
Bolt (6g1)
Loading…
↗
21
6N0E57710094
Stay 1
Loading…
↗
22
6N0E57720094
Stay 2
Loading…
↗
23
9707506020
Bolt(7u8)
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
25
6G11574681
Arm
Loading…
↗
26
6G11576400
Collar 1
Loading…
↗
27
9589506025
Bolt, flange deep recess
Loading…
↗
28
6N0E577080
Cable comp., starter stop
Loading…
↗
29
6G11577481
Stay 4
Loading…
↗
30
6561574800
Plunger, starter stop
Loading…
↗
31
9050110227
Spring, comprreshion(656)
Loading…
↗
32
6G14412580
Lever, shift rod 2
Loading…
↗
33
9788005016
Screw, pan head(6b0)
Loading…
↗
34
9299005600
Washer, plain (646)
Loading…
↗
35
6G11574780
Link
