8CMH (2002)
STARTER

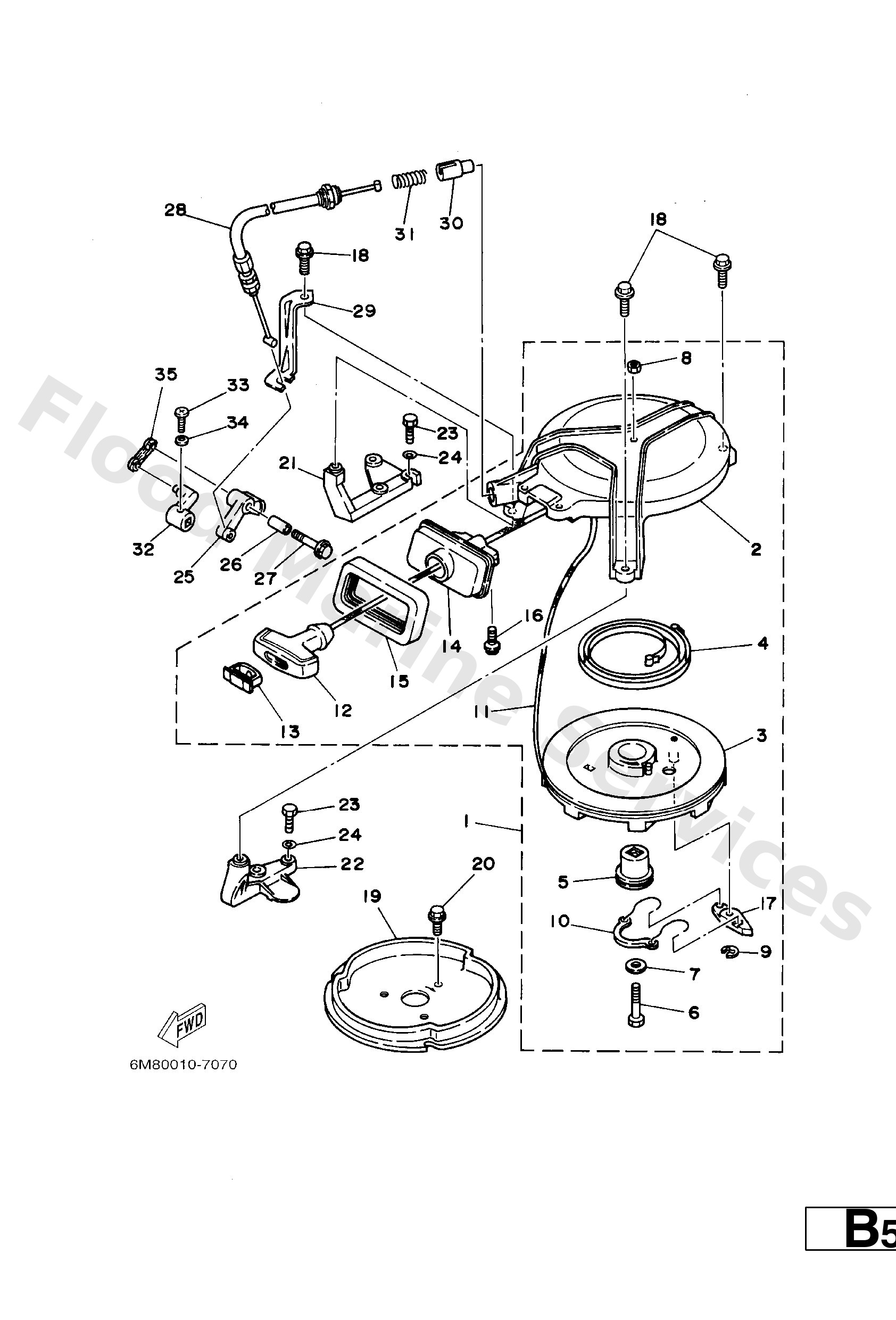

Diagram: STARTER
Parts List
Reference
Description
Price
1
6M8--E5710--03
Starter assembly
Loading…
↗
2
6N0--E5711--80--94
Case, Starter
Loading…
↗
3
6M8--E5714--00
Drum, sheave
Loading…
↗
4
90510--08M03
Spring, spiral (6g1)
Loading…
↗
5
6G1--15717--00
Shaft, starter
Loading…
↗
6
97013--06035
Bolt(3rv)
Loading…
↗
7
90201--06M30
Washer, plate (6a1)
Loading…
↗
8
95303--06600
Nut(661)
Loading…
↗
9
93430--06M02
Circlip (689)
Loading…
↗
10
6G1--15705--00
Spring, drive pawl
Loading…
↗
11
*
item_description
Loading…
↗
12
6G1--15755--00
Handle, starter
Loading…
↗
13
6G1--15779--00
Cover
Loading…
↗
14
6N0E575801
Guide, rope
Loading…
↗
15
6G1--15762--00
Seal 2
Loading…
↗
16
95895--06016
Bolt, flange deep recess
Loading…
↗
17
677--15741--01
Pawl, drive
Loading…
↗
18
95895--06020
Bolt, flange(jk3)
Loading…
↗
19
6N0--E5723--00--94
Pulley, starter
Loading…
↗
20
90105--06M29
Bolt (6g1)
Loading…
↗
21
6N0--E5771--00--94
Stay 1
Loading…
↗
22
6N0--E5772--00--94
Stay 2
Loading…
↗
23
97075--06020
Bolt(7u8)
Loading…
↗
24
92995--06600
Washer, plain (646)
Loading…
↗
25
6G1--15746--81
Arm
Loading…
↗
26
6G1--15764--00
Collar 1
Loading…
↗
27
95895--06025
Bolt, flange deep recess
Loading…
↗
28
6N0E577080
Cable comp., starter stop
Loading…
↗
29
6G1--15774--81
Stay 4
Loading…
↗
30
656--15748--00
Plunger, starter stop
Loading…
↗
31
90501--10227
Spring, comprreshion(656)
Loading…
↗
32
6G1--44125--80
Lever, shift rod 2
Loading…
↗
33
97880--05016
Screw, pan head(6b0)
Loading…
↗
34
92990--05600
Washer, plain (646)
Loading…
↗
35
6G1--15747--80
Link
Loading…
↗
