E60HMHD (2002)
STARTER

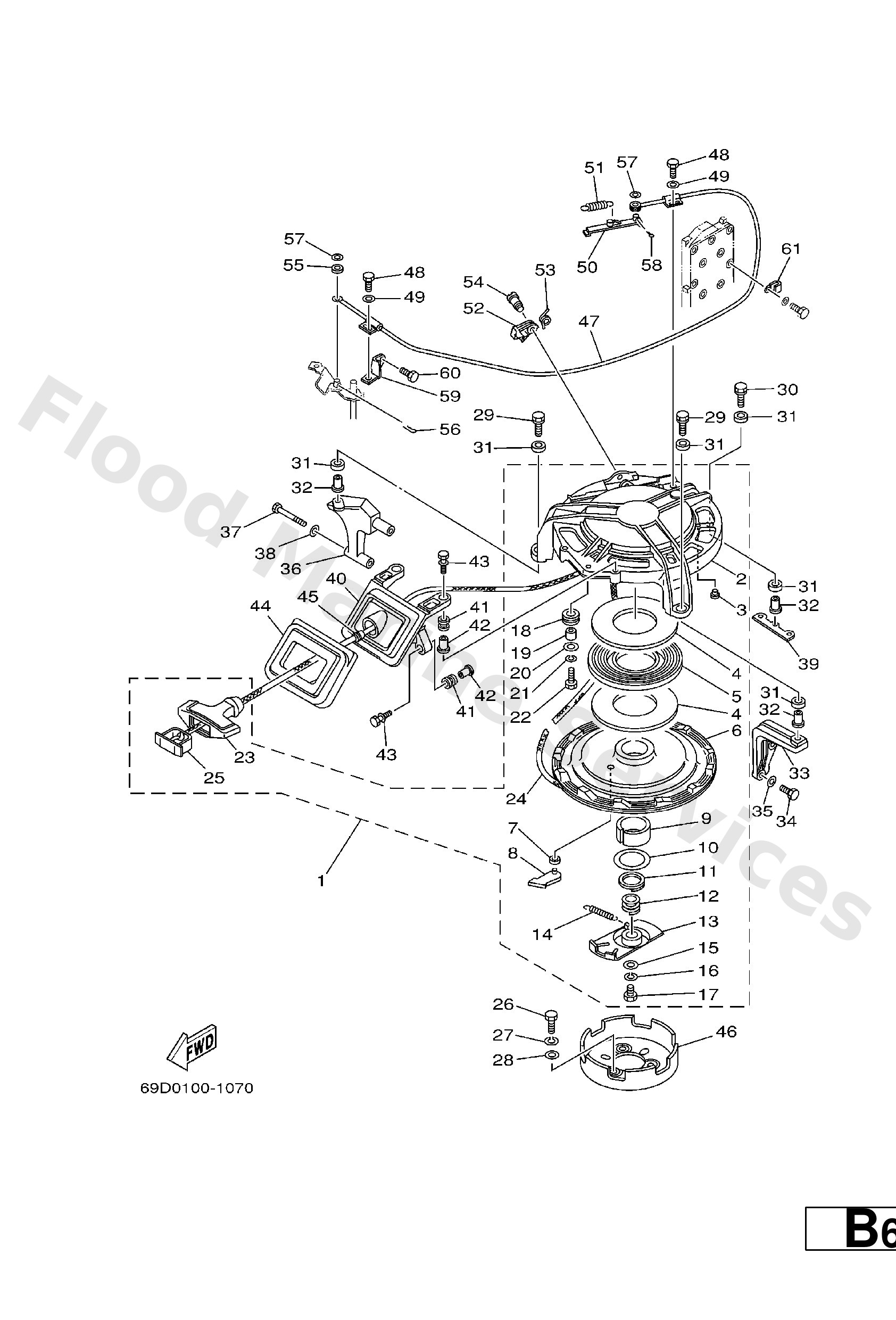

Diagram: STARTER
Parts List
Reference
Description
Price
1
692−W1571−02
Starter assembly
Loading…
↗
2
692−15711−00
Case, starter
Loading…
↗
3
648−15773−00
Stay 3
Loading…
↗
4
663−15739−00
Washer, thrust 2
Loading…
↗
5
663−15713−00
Spring, starter
Loading…
↗
6
663−15714−01
Drum, sheave
Loading…
↗
7
663−15764−00
Collar
Loading…
↗
8
663−15741−02
Pawl, drive
Loading…
↗
9
663−15754−00
Bushing
Loading…
↗
10
663−15726−01
Washer, flat 1
Loading…
↗
11
663−15744−00
Circlip
Loading…
↗
12
663−15715−00
Spring, drive plate
Loading…
↗
13
663−15716−01
Drive, plate
Loading…
↗
14
663−15734−01
Spring, return
Loading…
↗
15
663−15719−00
Washer, thrust
Loading…
↗
16
92903−06100
Washer(6a1)
Loading…
↗
17
97303−06016
Bolt, hexagon deep recess
Loading…
↗
18
663−15752−00
Roller, wire
Loading…
↗
19
663−15753−00
Bushing 1
Loading…
↗
20
663−15791−00
Washer, lock
Loading…
↗
22
97303−06025
Bolt, hexagon
Loading…
↗
23
689−15755−01
Handle, starter
Loading…
↗
24
*
item_description
Loading…
↗
25
6F5−15779−02
Cover
Loading…
↗
26
97013−08012
Bolt(62e)
Loading…
↗
27
92903−08100
Ybs67-8 washer, spring
Loading…
↗
28
92903−08600
Washer, plain (663)
Loading…
↗
29
90119−08M28
Bolt, with washer
Loading…
↗
30
90119−08M32
Bolt, with washer
Loading…
↗
31
90385−12M04
Bushing (6f5)
Loading…
↗
32
90387−08M05
Collar (663)
Loading…
↗
33
6K5−15771−00−94
Stay 1
Loading…
↗
34
97013−06025
Bolt(62y)
Loading…
↗
35
92903−06600
Washer, plain (646)
Loading…
↗
36
6K5−15772−00−94
Stay 2
Loading…
↗
37
97013−06055
Bolt(64d)
Loading…
↗
39
6K5−15773−01
Stay 3
Loading…
↗
40
6K5−15758−01−94
Guide wire
Loading…
↗
41
6A0−82317−00
Damper, ignition coil
Loading…
↗
42
624−42542−00
Collar
Loading…
↗
43
90119−06M65
Bolt, with washer
Loading…
↗
44
6K5−15762−00
Seal, rubber 2
Loading…
↗
45
697−15789−00
Damper
Loading…
↗
46
6K5−15723−00
Pulley, starter
Loading…
↗
47
6K5−15770−01
Cable comp., starter stop
Loading…
↗
48
97095−06012
Bolt(gh1)
Loading…
↗
49
92995−06600
Washer, plain (646)
Loading…
↗
50
663−15735−01
Guide, cam
Loading…
↗
51
90506−08M23
Spring, tension(6k5)
Loading…
↗
52
663−15794−00
Stopper
Loading…
↗
53
90508−12015
Spring torsion 616436420000
Loading…
↗
54
90149−05095
Screw(663)
Loading…
↗
55
663−15736−00
Ring, retaining 1
Loading…
↗
56
90468−18008
Clip 620436610000
Loading…
↗
57
92903−06200
Ybs66-6 washer, plain
Loading…
↗
58
91490−16012
Pin, cotter (e57)
Loading…
↗
59
6K5−15774−00
Stay 4
Loading…
↗
60
97013−06012
Bolt(gh1)
Loading…
↗
61
90465−06M90
Clamp
Loading…
↗
