E60HMHD (2009)
STARTER

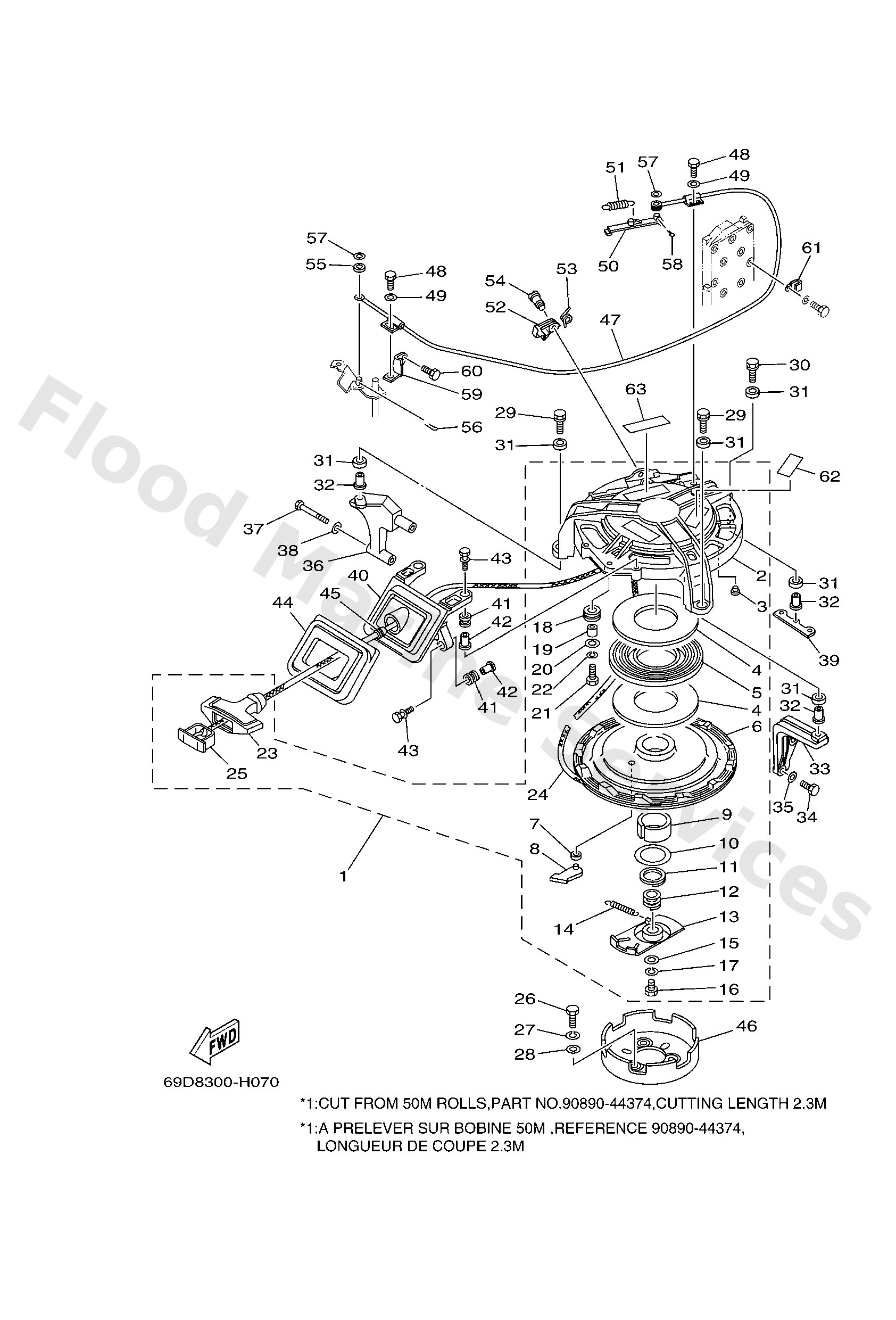

Diagram: STARTER
Parts List
Reference
Description
Price
1
692W157103
Starter assembly
Loading…
↗
2
6921571101
Case, starter
Loading…
↗
3
6481577300
Stay 3
Loading…
↗
4
6631573900
Washer, thrust 2
Loading…
↗
5
6631571300
Spring, starter
Loading…
↗
6
6631571401
Drum, sheave
Loading…
↗
7
6631576400
Collar
Loading…
↗
8
6631574102
Pawl, drive
Loading…
↗
9
6631575400
Bushing
Loading…
↗
10
6631572601
Washer, flat 1
Loading…
↗
11
6631574400
Circlip
Loading…
↗
12
6631571500
Spring, drive plate
Loading…
↗
13
6961571600
Drive, plate
Loading…
↗
14
6961573400
Spring, return
Loading…
↗
15
6631571900
Washer, thrust
Loading…
↗
16
9709506016
Bolt, hexagon deep recess
Loading…
↗
17
9299506100
Washer(6a1)
Loading…
↗
18
6631575200
Roller, wire
Loading…
↗
19
6F51575300
Bushing 1
Loading…
↗
20
6F51579100
Washer, lock
Loading…
↗
21
9701706025
Bolt, hexagon
Loading…
↗
23
6891575501
Handle, starter
Loading…
↗
24
*
*1
item_description
Loading…
↗
25
6F51577902
Cover
Loading…
↗
26
9701308012
Bolt(62e)
Loading…
↗
27
9290308100
Ybs67-8 washer, spring
Loading…
↗
28
9290308600
Washer, plain (663)
Loading…
↗
29
9011908087
Bolt, with washer
Loading…
↗
30
9011908M32
Bolt, with washer
Loading…
↗
31
9038512M04
Bushing (6f5)
Loading…
↗
32
9038708M05
Collar (663)
Loading…
↗
33
6K5157710094
Stay 1
Loading…
↗
34
9701306025
Bolt(62y)
Loading…
↗
35
9290306600
Washer, plain (646)
Loading…
↗
36
6K5157720094
Stay 2
Loading…
↗
37
9701306055
Bolt(64d)
Loading…
↗
39
6K51577301
Stay 3
Loading…
↗
40
6K5157580194
Guide wire
Loading…
↗
41
6A08231700
Damper, ignition coil
Loading…
↗
42
9038706119
Collar
Loading…
↗
43
9011906M65
Bolt, with washer
Loading…
↗
44
6K51576200
Seal, rubber 2
Loading…
↗
45
6971578900
Damper
Loading…
↗
46
6K51572300
Pulley, starter
Loading…
↗
47
6K51577001
Cable comp., starter stop
Loading…
↗
48
9709506012
Bolt(gh1)
Loading…
↗
49
9299506600
Washer, plain (646)
Loading…
↗
50
6631573501
Guide, cam
Loading…
↗
51
9050608M23
Spring, tension(6k5)
Loading…
↗
52
6631579400
Stopper
Loading…
↗
53
9050812015
Spring torsion 616436420000
Loading…
↗
54
9014905095
Screw(663)
Loading…
↗
55
6631573600
Ring, retaining 1
Loading…
↗
56
9046818008
Clip 620436610000
Loading…
↗
57
9290306200
Ybs66-6 washer, plain
Loading…
↗
58
9149016012
Pin, cotter (e57)
Loading…
↗
59
6K51577400
Stay 4
Loading…
↗
60
9701306012
Bolt(gh1)
Loading…
↗
61
9046506M90
Clamp
Loading…
↗
62
6AH8199540
Label, warning
Loading…
↗
63
6AH8199550
Label, warning
