E75BEHD (2025)
STARTER

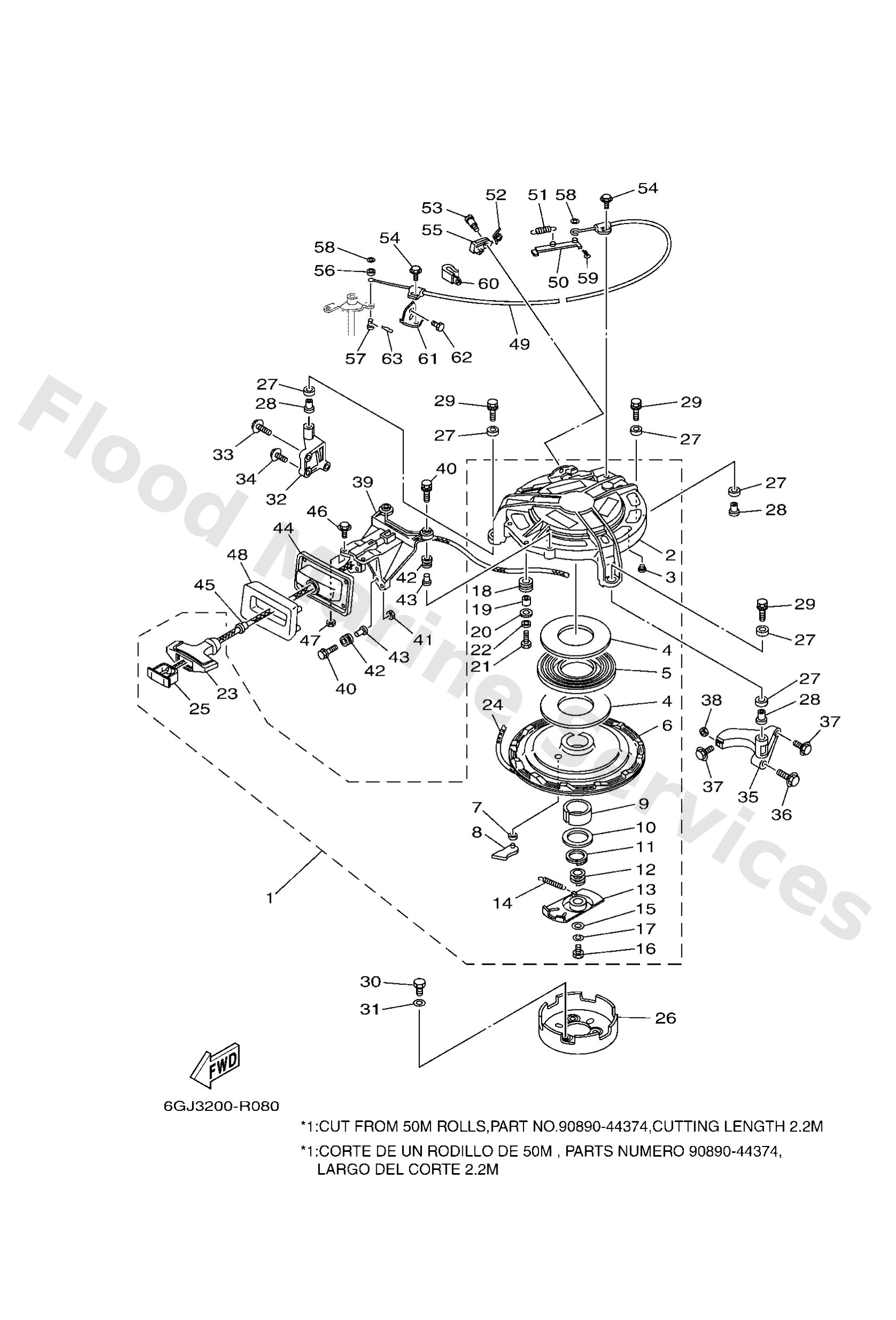

Diagram: STARTER
Parts List
Reference
Description
Price
1
692W157104
Starter assembly
Loading…
↗
2
6921571101
Case, starter
Loading…
↗
3
6481577300
Stay 3
Loading…
↗
4
6631573900
Washer, thrust 2
Loading…
↗
5
6631571300
Spring, starter
Loading…
↗
6
6631571402
Drum, sheave
Loading…
↗
7
6631576400
Collar
Loading…
↗
8
6631574102
Pawl, drive
Loading…
↗
9
6631575400
Bushing
Loading…
↗
10
6631572601
Washer, flat 1
Loading…
↗
11
6631574400
Circlip
Loading…
↗
12
6631571500
Spring, drive plate
Loading…
↗
13
6961571600
Drive, plate
Loading…
↗
14
6961573400
Spring, return
Loading…
↗
15
6631571900
Washer, thrust
Loading…
↗
16
9709506016
Bolt, hexagon deep recess
Loading…
↗
17
9299506100
Washer(6a1)
Loading…
↗
18
6631575200
Roller, wire
Loading…
↗
19
6F51575300
Bushing 1
Loading…
↗
20
6F51579100
Washer, lock
Loading…
↗
21
9701706025
Bolt, hexagon
Loading…
↗
23
6891575502
Handle, starter
Loading…
↗
24
*
*1
item_description
Loading…
↗
25
6F51577902
Cover
Loading…
↗
26
6K51572300
Pulley, starter
Loading…
↗
27
9038512M04
Bushing (6f5)
Loading…
↗
28
9038708M05
Collar (663)
Loading…
↗
29
9011908188
Bolt, with washer
Loading…
↗
30
9701308016
Bolt, hexagon
Loading…
↗
31
9290308600
Washer, plain (663)
Loading…
↗
32
6921577100
Stay 1
Loading…
↗
33
9751306535
Bolt(3rv)
Loading…
↗
34
9751306525
Bolt, with washer(61b)
Loading…
↗
35
6921577200
Stay 2
Loading…
↗
36
9751308540
Bolt, with washer
Loading…
↗
37
9751306530
Bolt, with washer(63m)
Loading…
↗
38
9530306600
Nut(661)
Loading…
↗
39
6971578700
Stay
Loading…
↗
40
9011906292
Bolt, with washer
Loading…
↗
42
6A08231701
Damper, ignition coil
Loading…
↗
43
9038706119
Collar
Loading…
↗
44
69215758018D
Guide, rope
Loading…
↗
45
6971578901
Damper
Loading…
↗
46
97E9506620
Bolt, hexagon w/w deep recess
Loading…
↗
48
6971576200
Seal 2
Loading…
↗
49
6921577001
Cable comp., starter stop
Loading…
↗
50
6631573501
Guide, cam
Loading…
↗
51
9050608M23
Spring, tension(6k5)
Loading…
↗
52
9050812015
Spring torsion 616436420000
Loading…
↗
53
9014905095
Screw(663)
Loading…
↗
54
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
55
6631579400
Stopper
Loading…
↗
56
6631573601
Ring, retaining 1
Loading…
↗
57
9024006M18
Pin, clevis(692)
Loading…
↗
58
9299006200
Ybs66-6 washer, plain
Loading…
↗
59
9149016012
Pin, cotter (e57)
Loading…
↗
60
9046506M90
Clamp
Loading…
↗
61
6631577201
Stay 2
Loading…
↗
62
9701308012
Bolt(62e)
Loading…
↗
63
9046818008
Clip 620436610000
