E8DMH (2003)
STARTER

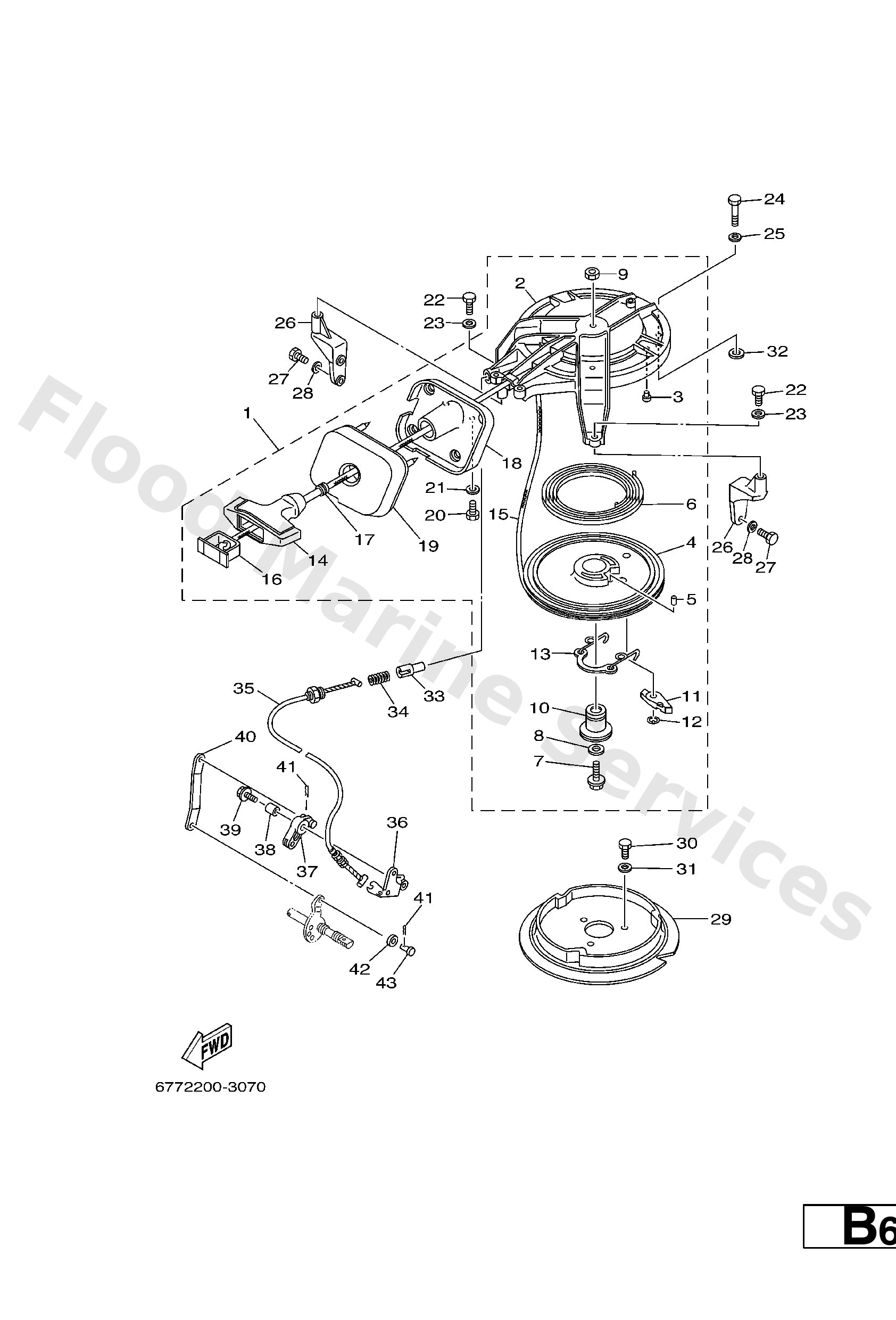

Diagram: STARTER
Parts List
Reference
Description
Price
1
677−15710−05−94
Starter assembly
Loading…
↗
2
682−15711−71−94
Case, Starter
Loading…
↗
3
648−15773−00
Stay 3
Loading…
↗
4
677−15714−00−94
Drum, sheave
Loading…
↗
5
91690−40020
Pin, spring
Loading…
↗
6
90510−08M04
Spring, spiral (677)
Loading…
↗
7
90119−06M34
Bolt,with washer (6k8)
Loading…
↗
8
90201−06060
Washer, plate
Loading…
↗
9
95303−06600
Nut(661)
Loading…
↗
10
677−15717−01
Shaft
Loading…
↗
11
677−15741−01
Pawl, drive
Loading…
↗
12
93430−06M02
Circlip (689)
Loading…
↗
13
677−15705−02
Spring, pawl drive
Loading…
↗
14
689−15755−01
Handle, starter
Loading…
↗
15
*
item_description
Loading…
↗
16
6F5−15779−02
Cover
Loading…
↗
17
6A0−15789−00
Damper
Loading…
↗
18
677−15758−01−94
Guide, Rope
Loading…
↗
19
677−15762−00
Seal 2
Loading…
↗
20
97095−06016
Bolt, hexagon deep recess
Loading…
↗
21
92995−06600
Washer, plain (646)
Loading…
↗
22
97095−06020
Bolt(7u8)
Loading…
↗
24
97095−06035
Bolt(j52)
Loading…
↗
26
6K3−15771−00−94
Stay 1
Loading…
↗
27
97095−06018
Bolt (fj0)
Loading…
↗
29
6E7−15723−00−94
Pully, starter
Loading…
↗
30
97095−06012
Bolt(gh1)
Loading…
↗
32
90201−10120
Washer, plate
Loading…
↗
33
656−15748−00
Plunger, starter stop
Loading…
↗
34
90501−10227
Spring, comprreshion(656)
Loading…
↗
35
677−15770−01
Starter stop wire comp.
Loading…
↗
36
677−15772−00
Stay 2
Loading…
↗
37
677−15746−00
Arm
Loading…
↗
38
90387−06504
Collar(650)
Loading…
↗
39
90119−06M87
Bolt, with washer(61n)
Loading…
↗
40
677−15747−00
Link
Loading…
↗
41
90468−10005
Pin, hair 6264123500
Loading…
↗
42
90202−05088
Washer, plate (666)
Loading…
↗
43
647−41652−00
Set pin,vagneto control lever2
Loading…
↗
