F15AEP (2002)
STARTER

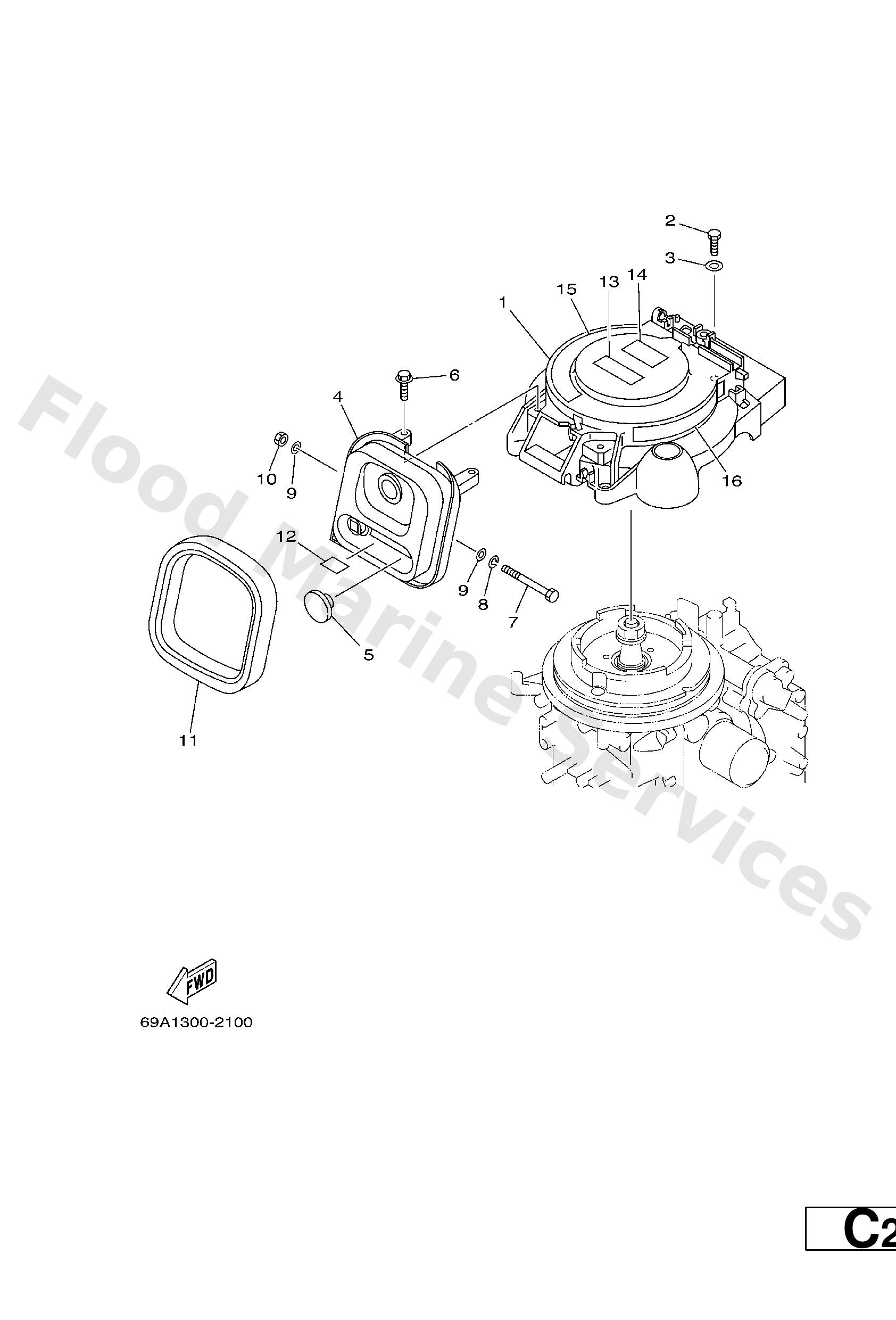

Diagram: STARTER
Parts List
Reference
Description
Price
1
66M−15711−10
Case, starter
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
66M−15758−10
Guide, Rope
Loading…
↗
5
6G1−42725−00
Grommet
Loading…
↗
6
90119−06M59
Bolt, with washer
Loading…
↗
7
97095−06090
Bolt(62y)
Loading…
↗
8
92995−06100
Washer(6a1)
Loading…
↗
9
90201−06M05
Washer, plate(6e3)
Loading…
↗
10
95380−06700
Nut
Loading…
↗
11
66M−15762−00
Seal, Rubber 2
Loading…
↗
12
66M−84342−00
Seat, Emblem
Loading…
↗
13
6A1−83625−41
Mark 5
Loading…
↗
14
6A1−83625−51
Mark 5
Loading…
↗
15
66M−14427−60
Label, Instruction
Loading…
↗
16
6G8−13437−63
Mark, caution
Loading…
↗
