F15AEP (2004)
STARTER

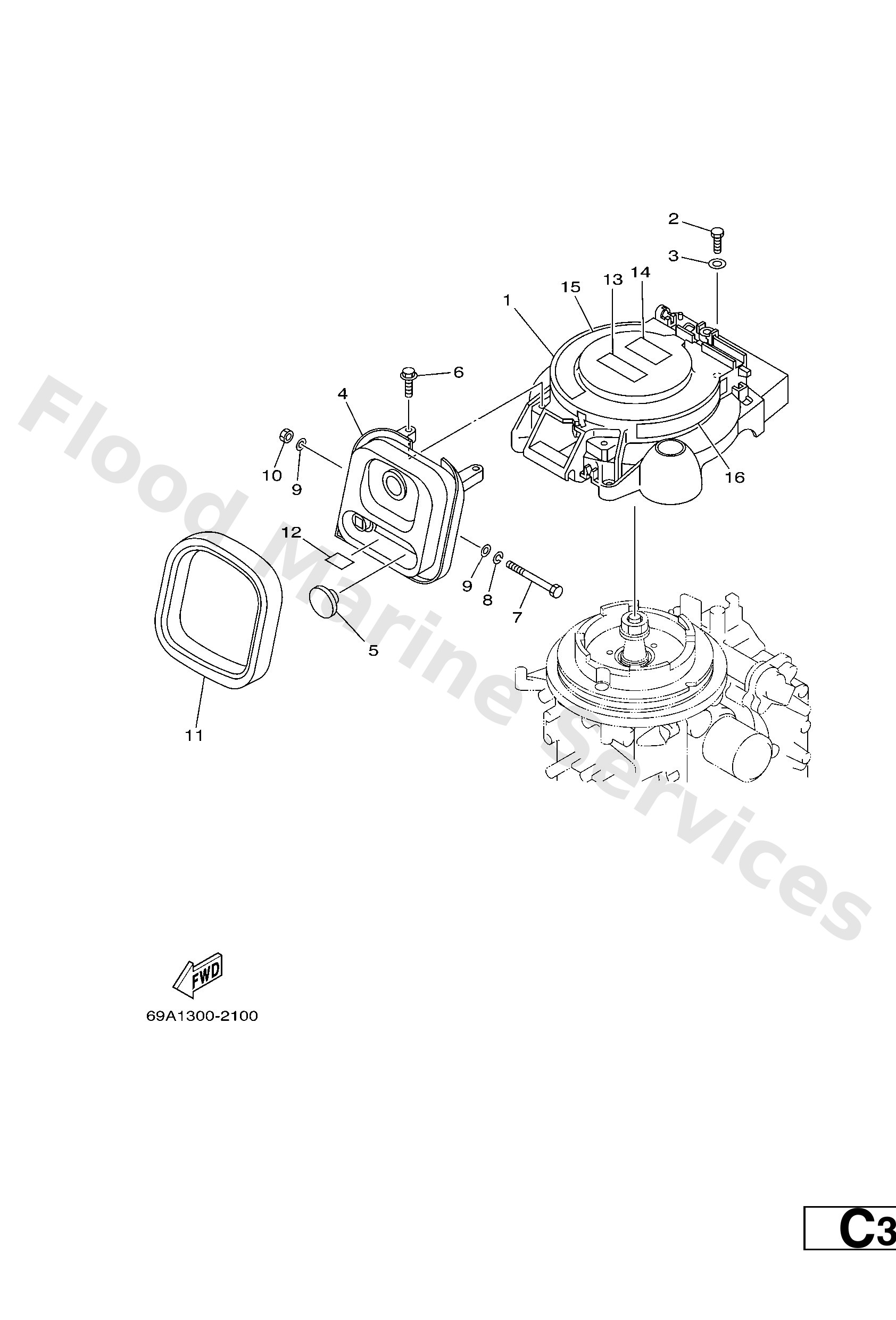

Diagram: STARTER
Parts List
Reference
Description
Price
1
66M1571110
Case, starter
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
66M1575810
Guide, Rope
Loading…
↗
5
6G14272500
Grommet
Loading…
↗
6
9011906M59
Bolt, with washer
Loading…
↗
7
9709506090
Bolt(62y)
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
9020106M05
Washer, plate(6e3)
Loading…
↗
10
9538006700
Nut
Loading…
↗
11
66M1576200
Seal, Rubber 2
Loading…
↗
12
66M8434200
Seat, Emblem
Loading…
↗
13
6A18362541
Mark 5
Loading…
↗
14
6A18362551
-
Loading…
↗
15
66M1442760
Label, Instruction
Loading…
↗
16
6G81343764
Mark, caution
Loading…
↗
