F2.5AMH (2012)
STARTER

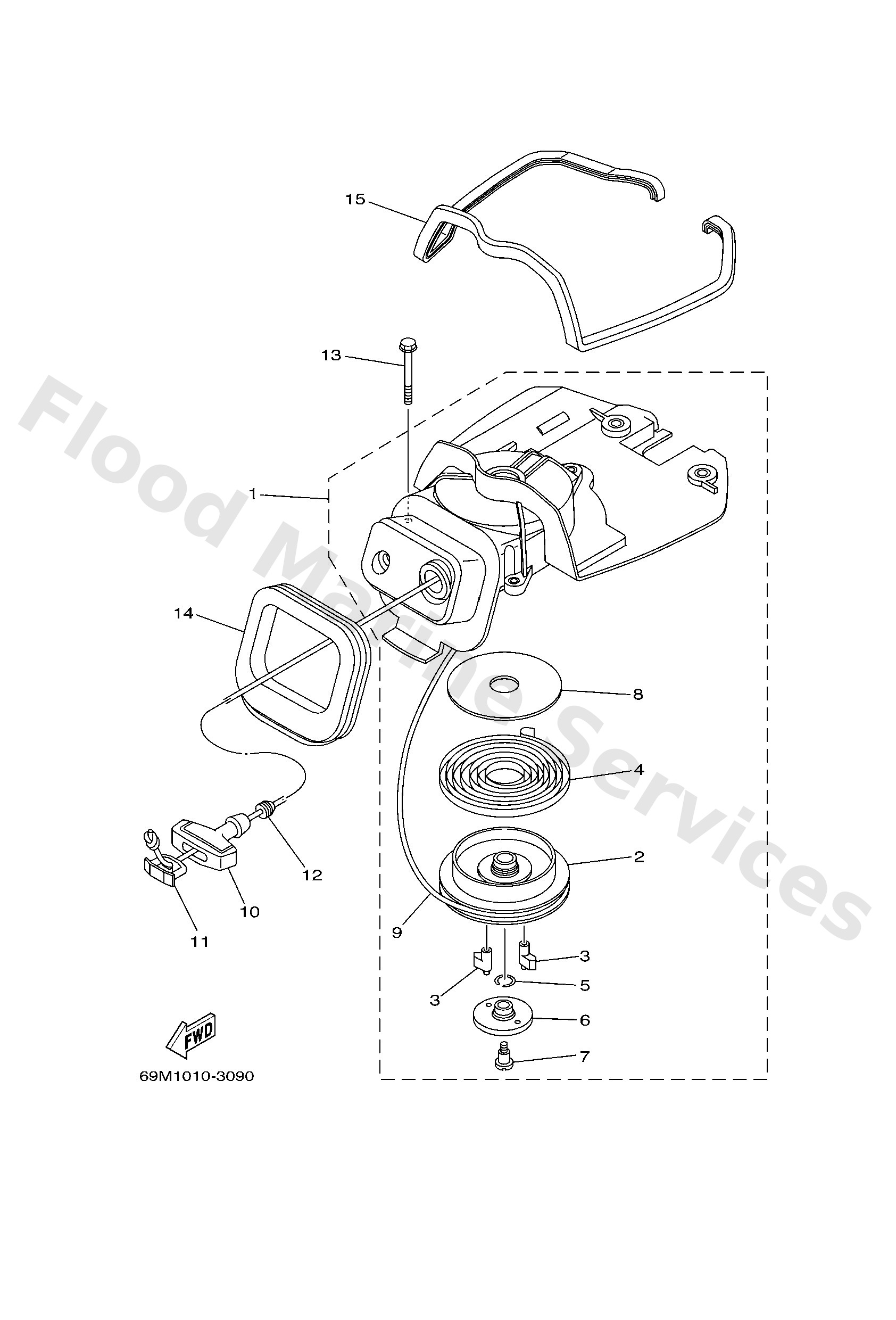

Diagram: STARTER
Parts List
Reference
Description
Price
1
69M1571000
Starter assembly
Loading…
↗
2
69M1571400
Drum, sheave
Loading…
↗
3
69M1574100
Pawl, drive
Loading…
↗
4
67D1571300
Spring, starter
Loading…
↗
5
67D1570500
Spring, drive pawl
Loading…
↗
6
69M1573500
Guide, cam
Loading…
↗
7
69M1579300
Screw
Loading…
↗
8
69M1573900
Washer, thrust
Loading…
↗
9
69M1575100
Wire, starter (1.5m)
Loading…
↗
10
6G11575500
Handle, starter
Loading…
↗
11
6G11577900
Cover
Loading…
↗
12
69ME578900
Damper
Loading…
↗
13
9759506560
Bolt, hexagon w/w deep recess
Loading…
↗
14
69M1576200
Seal, rubber 2
Loading…
↗
15
69M2418200
Damper, locating 2
Loading…
↗
