F2.5BMH (2022)
STARTER

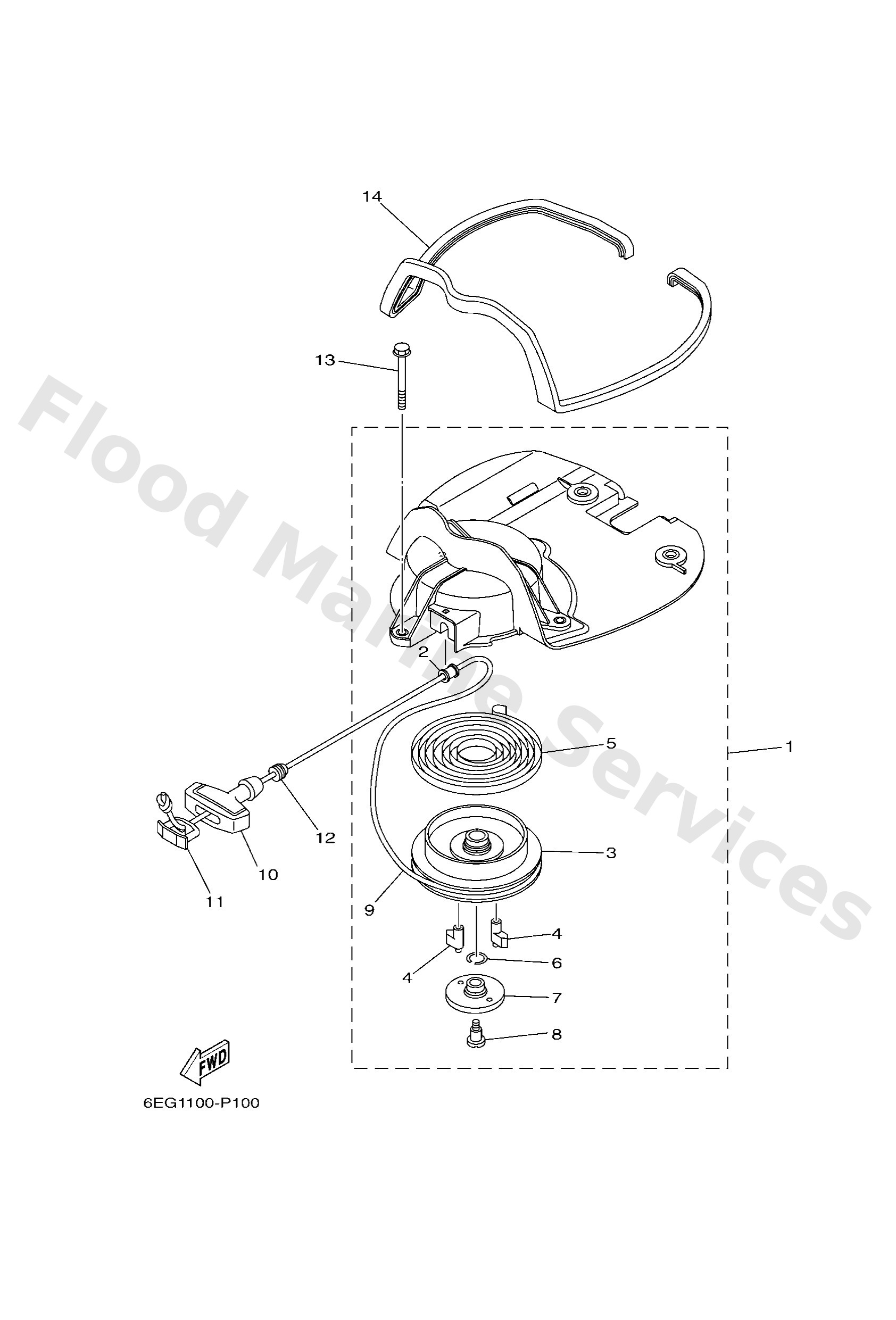

Diagram: STARTER
Parts List
Reference
Description
Price
1
6EGE571000
Starter assembly
Loading…
↗
2
63V1576400
Collar 1
Loading…
↗
3
69ME571400
Drum, sheave
Loading…
↗
4
69M1574100
Pawl, drive
Loading…
↗
5
67D1571300
Spring, starter
Loading…
↗
6
6BX1570500
Spring, drive pawl
Loading…
↗
7
69M1573500
Guide, cam
Loading…
↗
8
69M1579300
Screw
Loading…
↗
9
6EGE575100
Wire, starter (l:1
Loading…
↗
10
6G11575500
Handle, starter
Loading…
↗
11
6G11577900
Cover
Loading…
↗
12
6EGE578900
Damper
Loading…
↗
13
97E9506560
Bolt, hexagon w/w deep recess
Loading…
↗
14
6EGF418200
Damper, locating 2
Loading…
↗
