F25GET (2025)
STARTER

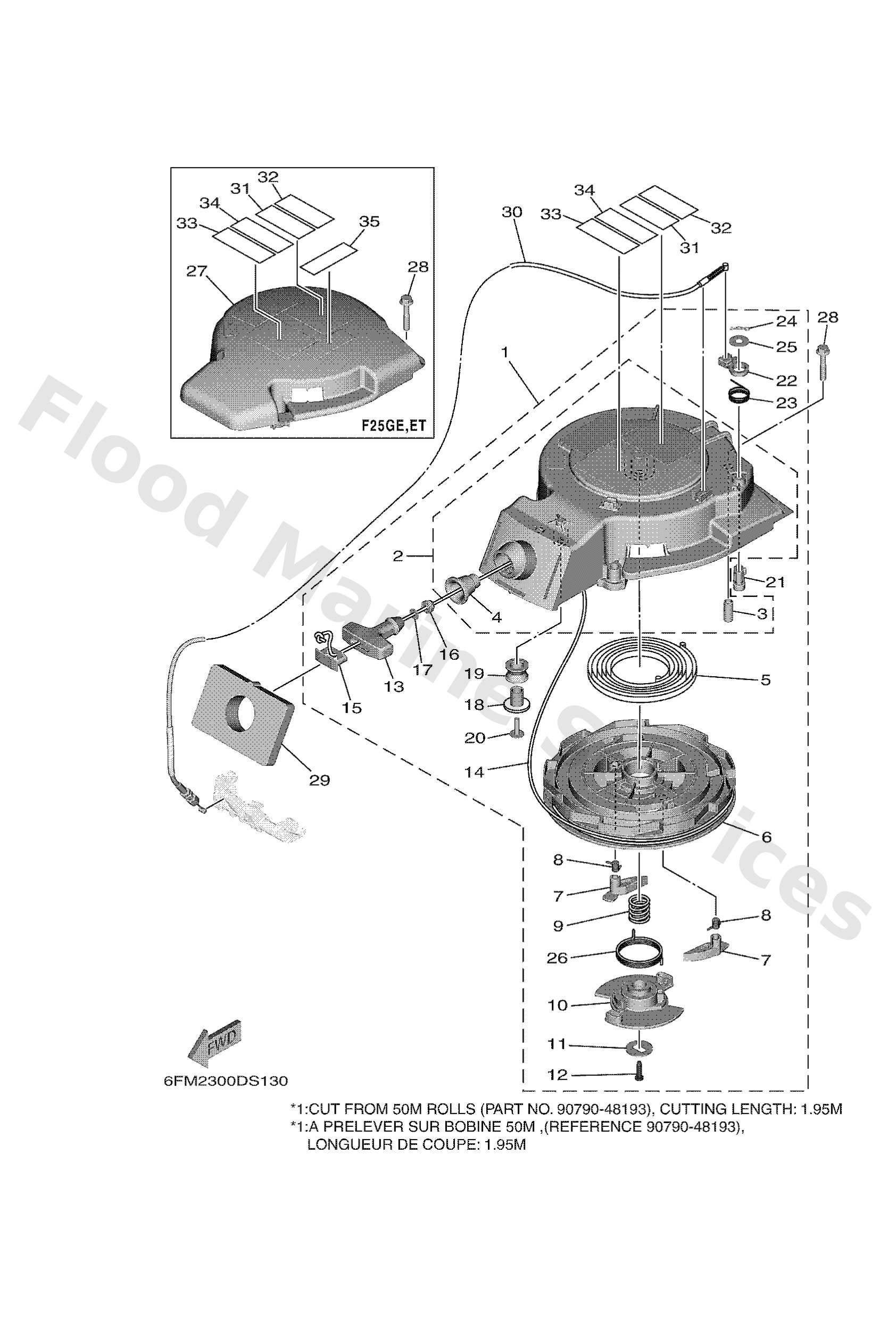

Diagram: STARTER
Parts List
Reference
Description
Price
1
6FM1571006
Starter assembly
Loading…
↗
2
6FM1571110
Case, starter
Loading…
↗
3
6FM1576410
Collar 1
Loading…
↗
4
68T1579500
Guide, rope
Loading…
↗
5
6FM1571300
Spring, starter
Loading…
↗
6
6FM1571401
Drum, sheave
Loading…
↗
7
6FM1574101
Pawl, drive
Loading…
↗
8
6FM1573401
Spring, return
Loading…
↗
9
6FM1570501
Spring, drive pawl
Loading…
↗
10
6FM1573501
Guide, cam
Loading…
↗
11
6FM1572600
Washer, flat
Loading…
↗
12
6FM1579300
Screw
Loading…
↗
13
6G11575500
Handle, starter
Loading…
↗
14
*
*1
item_description
Loading…
↗
15
6G11577900
Cover
Loading…
↗
16
6A01578901
Damper
Loading…
↗
17
6FM1572101
Shim
Loading…
↗
18
6FM1575300
Bush
Loading…
↗
19
6FM1575200
Roller, wire
Loading…
↗
20
6FM1576800
Bolt
Loading…
↗
21
63V1579400
Stopper
Loading…
↗
22
6FM1574800
Plunger, starter stop
Loading…
↗
23
63V1573400
Spring, return
Loading…
↗
24
6FM1579901
Clip
Loading…
↗
25
63V1572600
Washer, flat
Loading…
↗
26
6FM1576700
Spring
Loading…
↗
27
6FM8133700
Cover, flywheel
Loading…
↗
28
9010506035
Bolt, flange
Loading…
↗
28
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
29
6FM1576200
Seal, rubber 2
Loading…
↗
30
6FM1577008
Cable comp., starter stop
Loading…
↗
31
6EE8199541
Label, Warning
Loading…
↗
32
6EE8199551
Label, Warning
Loading…
↗
33
6EE8199441
Label, Safety
Loading…
↗
34
6EE8199451
Label, Safety
Loading…
↗
35
6AG8199601
Mark
Loading…
↗
