F40TRD (2005)
STARTER

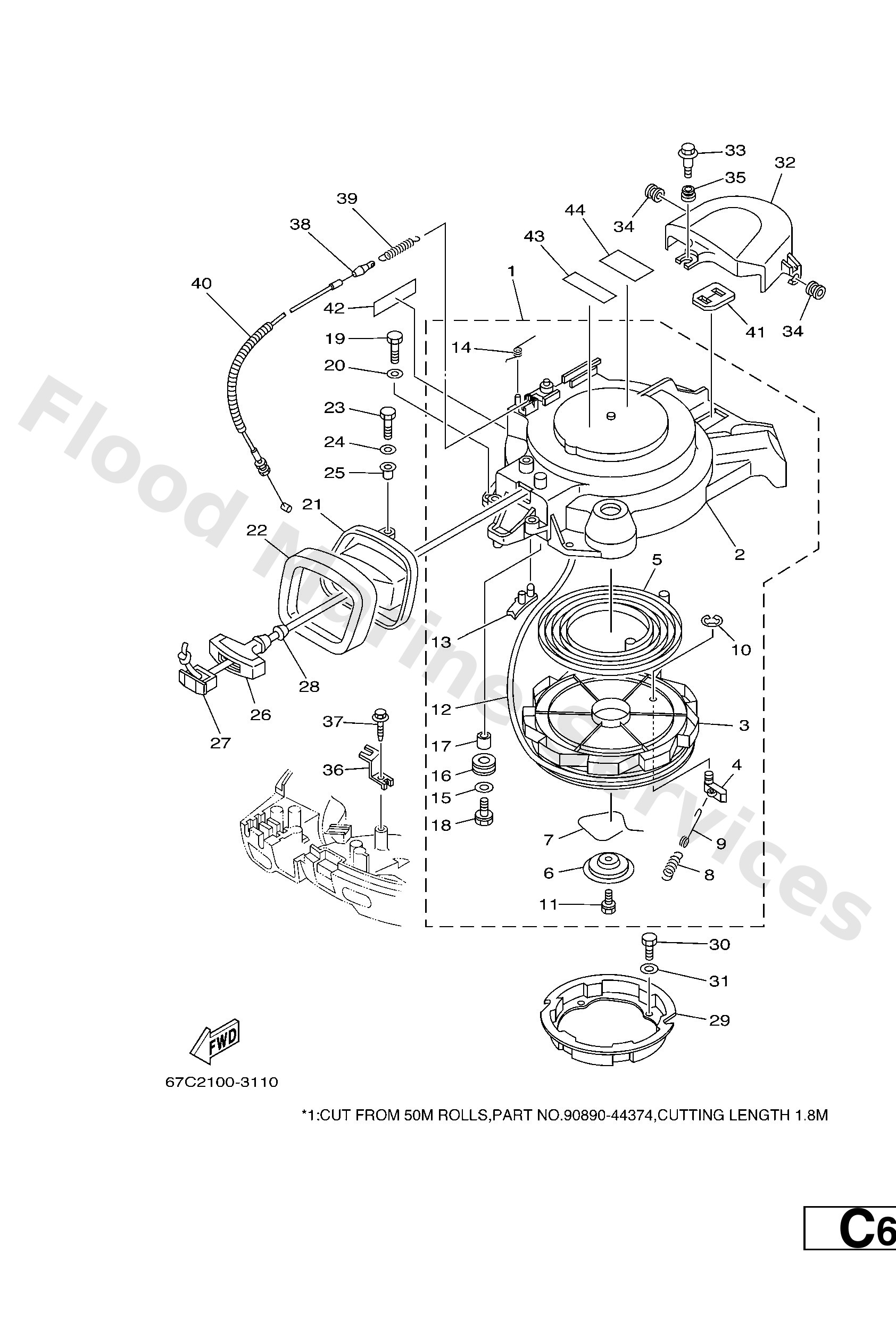

Diagram: STARTER
Parts List
Reference
Description
Price
1
67C1571000
Starter assembly
Loading…
↗
2
67C1571100
Case, starter
Loading…
↗
3
66T1571400
Drum, sheave
Loading…
↗
4
63V1574100
Pawl, drive
Loading…
↗
5
66T1571300
Spring, starter
Loading…
↗
6
66T1571600
Plate, drive
Loading…
↗
7
66T1570500
Spring, drive pawl
Loading…
↗
8
66T1576700
Spring
Loading…
↗
9
66T1578400
Spring, return
Loading…
↗
10
63V1574400
Circlip
Loading…
↗
11
63V1576800
Screw
Loading…
↗
12
*
*1
item_description
Loading…
↗
13
66T1579400
Stopper
Loading…
↗
14
66T1573400
Spring, return
Loading…
↗
15
6F51579100
Washer, lock
Loading…
↗
16
6F51575200
Roller, wire
Loading…
↗
17
6F51575300
Bushing 1
Loading…
↗
18
9752306425
Bolt, With Washer
Loading…
↗
19
9709506025
Bolt
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
67C1575800
Guide, rope
Loading…
↗
22
67C1576200
Seal, rubber 2
Loading…
↗
25
9038706M89
Collar
Loading…
↗
26
6891575501
Handle, starter
Loading…
↗
27
6F51577902
Cover
Loading…
↗
28
6A01578900
Damper
Loading…
↗
29
67C1572300
Pulley, starter
Loading…
↗
30
9709506010
Bolt
Loading…
↗
32
67C4629700
Cover, dust
Loading…
↗
33
9010906MA1
Bolt
Loading…
↗
34
9048010M16
Grommet(6j8)
Loading…
↗
35
9048012072
Grommet(53y)
Loading…
↗
36
66M1577400
Stay 4
Loading…
↗
37
9010906M86
Bolt
Loading…
↗
38
67C1577000
Cable comp., starter stop
Loading…
↗
39
66T1573100
Retainer, spring
Loading…
↗
40
9044610M86
Hose
Loading…
↗
41
65W8163910
Plate, Armature Fitting
Loading…
↗
42
62Y1343741
FOR USA
Mark, Caution
Loading…
↗
42
62Y1343751
FOR CAN
Mark, Caution
Loading…
↗
43
6A18362541
Mark 5
Loading…
↗
44
6A18362551
FOR CAN
Mark 5
Loading…
↗
