F4AMH (2002)
STARTER

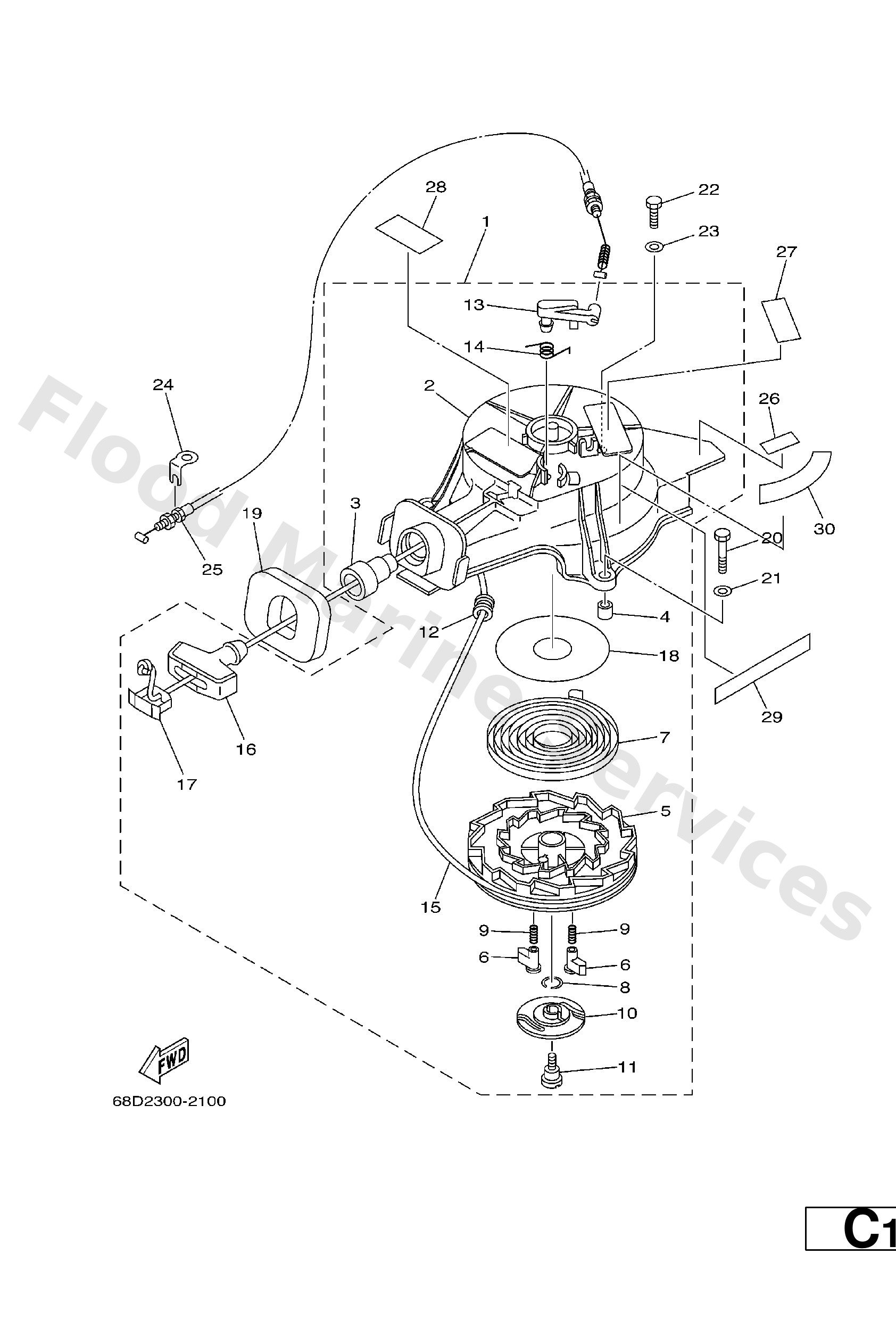

Diagram: STARTER
Parts List
Reference
Description
Price
1
67D1571000
Starter assembly
Loading…
↗
2
67D1571100
Case, Starter
Loading…
↗
3
63V1579501
Guide, rope
Loading…
↗
4
67D1576400
Collar 1
Loading…
↗
5
67D1571400
Drum, sheave
Loading…
↗
6
67D1574100
Pawl, drive
Loading…
↗
7
67D1571300
Spring, starter
Loading…
↗
8
67D1570500
Spring, drive pawl
Loading…
↗
9
67D1576700
Spring
Loading…
↗
10
67D1573500
Guide, cam
Loading…
↗
11
67D1579300
Screw
Loading…
↗
12
63V1576400
Collar 1
Loading…
↗
13
67D1579400
Stopper
Loading…
↗
14
67D1573400
Spring, return
Loading…
↗
15
*
item_description
Loading…
↗
16
6G11575500
Handle, starter
Loading…
↗
17
6G11577900
Cover
Loading…
↗
18
67D1573900
Washer, thrust
Loading…
↗
19
67D1576200
Seal, Rubber 2
Loading…
↗
20
9709506035
Bolt(j52)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
9709506020
Bolt(7u8)
Loading…
↗
24
67D1577200
Stay 2
Loading…
↗
25
67D1577000
Cable comp., starter stop
Loading…
↗
26
67D4279110
Mark 1
Loading…
↗
27
6A18362541
Mark 5
Loading…
↗
28
6A18362551
Mark 5
Loading…
↗
29
67D1343760
Mark, caution
Loading…
↗
30
67D1442760
-
