F4BMH (2025)
STARTER

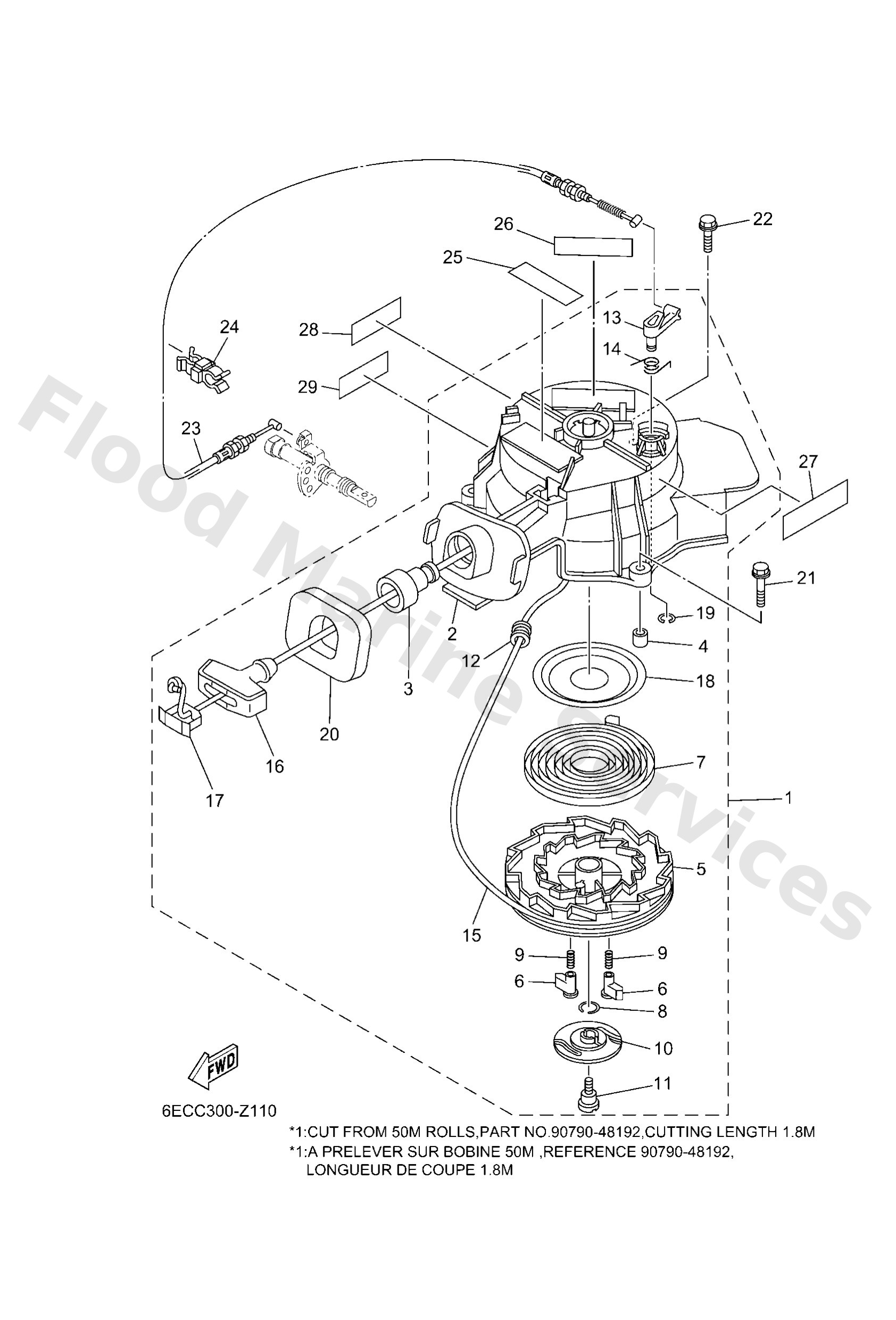

Diagram: STARTER
Parts List
Reference
Description
Price
1
6EE1571000
Starter assembly
Loading…
↗
2
6EE1571100
Case, Starter
Loading…
↗
3
63V1579501
Guide, rope
Loading…
↗
4
67D1576400
Collar 1
Loading…
↗
5
6EE1571400
Drum, Sheave
Loading…
↗
6
67D1574100
Pawl, drive
Loading…
↗
7
67D1571300
Spring, starter
Loading…
↗
8
6BX1570500
Spring, drive pawl
Loading…
↗
9
67D1576700
Spring
Loading…
↗
10
67D1573500
Guide, cam
Loading…
↗
11
67D1579300
Screw
Loading…
↗
12
68T1576400
Collar 1
Loading…
↗
13
67D1579401
Stopper
Loading…
↗
14
67D1573400
Spring, return
Loading…
↗
15
*
*1
item_description
Loading…
↗
16
6G11575500
Handle, starter
Loading…
↗
17
6G11577900
Cover
Loading…
↗
18
67D1573900
Washer, thrust
Loading…
↗
19
67D1574400
Circlip
Loading…
↗
20
6BX1576200
Seal, rubber 2
Loading…
↗
21
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
22
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
23
6EE1577000
Cable comp., starter stop
Loading…
↗
24
9046407008
Clamp
Loading…
↗
25
6EE8199541
Label, Warning
Loading…
↗
26
6EE8199551
Label, Warning
Loading…
↗
27
6EE1442760
Label, instruction
Loading…
↗
28
6EE8199441
-
Loading…
↗
29
6EE8199451
-
Loading…
↗
