F5AMH (2012)
STARTER

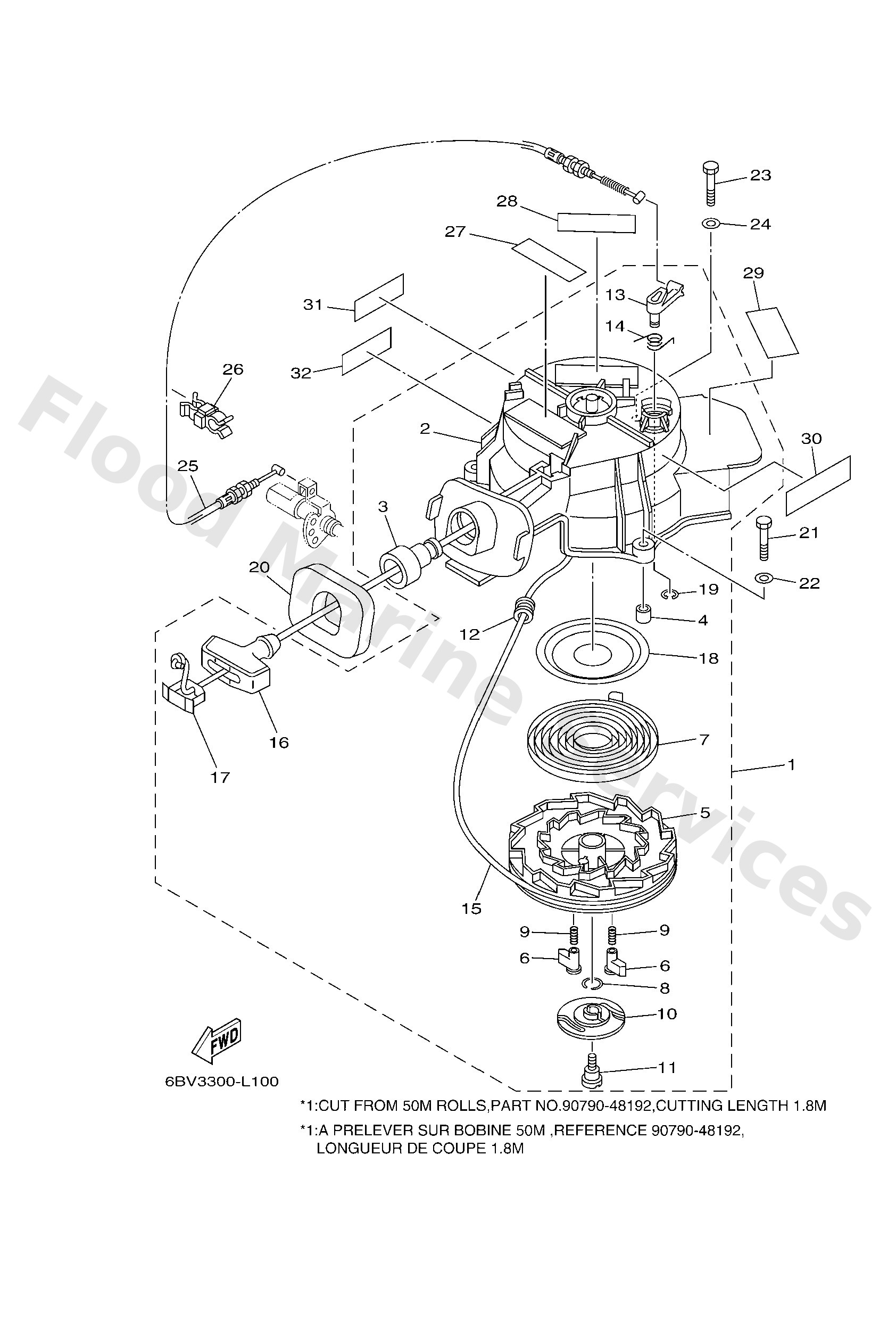

Diagram: STARTER
Parts List
Reference
Description
Price
1
6BX1571000
Starter assembly
Loading…
↗
2
6BX1571100
Case, starter
Loading…
↗
3
63V1579501
Guide, rope
Loading…
↗
4
67D1576400
Collar 1
Loading…
↗
5
67D1571400
Drum, sheave
Loading…
↗
6
67D1574100
Pawl, drive
Loading…
↗
7
67D1571300
Spring, starter
Loading…
↗
8
6BX1570500
Spring, drive pawl
Loading…
↗
9
67D1576700
Spring
Loading…
↗
10
67D1573500
Guide, cam
Loading…
↗
11
67D1579300
Screw
Loading…
↗
12
63V1576400
Collar 1
Loading…
↗
13
67D1579401
Stopper
Loading…
↗
14
67D1573400
Spring, return
Loading…
↗
15
*
*1
item_description
Loading…
↗
16
6G11575500
Handle, starter
Loading…
↗
17
6G11577900
Cover
Loading…
↗
18
67D1573900
Washer, thrust
Loading…
↗
19
67D1574400
Circlip
Loading…
↗
20
6BX1576200
Seal, rubber 2
Loading…
↗
21
9709506035
Bolt(j52)
Loading…
↗
22
9299506600
Washer, plain (646)
Loading…
↗
23
9709506020
Bolt(7u8)
Loading…
↗
25
6BXE577000
Wire comp starter
Loading…
↗
26
9046407008
Clamp
Loading…
↗
27
6AH8199540
Label, warning
Loading…
↗
28
6AH8199550
Label, warning
Loading…
↗
29
6BXE343760
Mark, caution
Loading…
↗
30
6BXE442760
Label, instruction
Loading…
↗
31
6AH8199440
Label, safety
Loading…
↗
32
6AH8199450
Label, safety
