F8CMH (2003)
STARTER

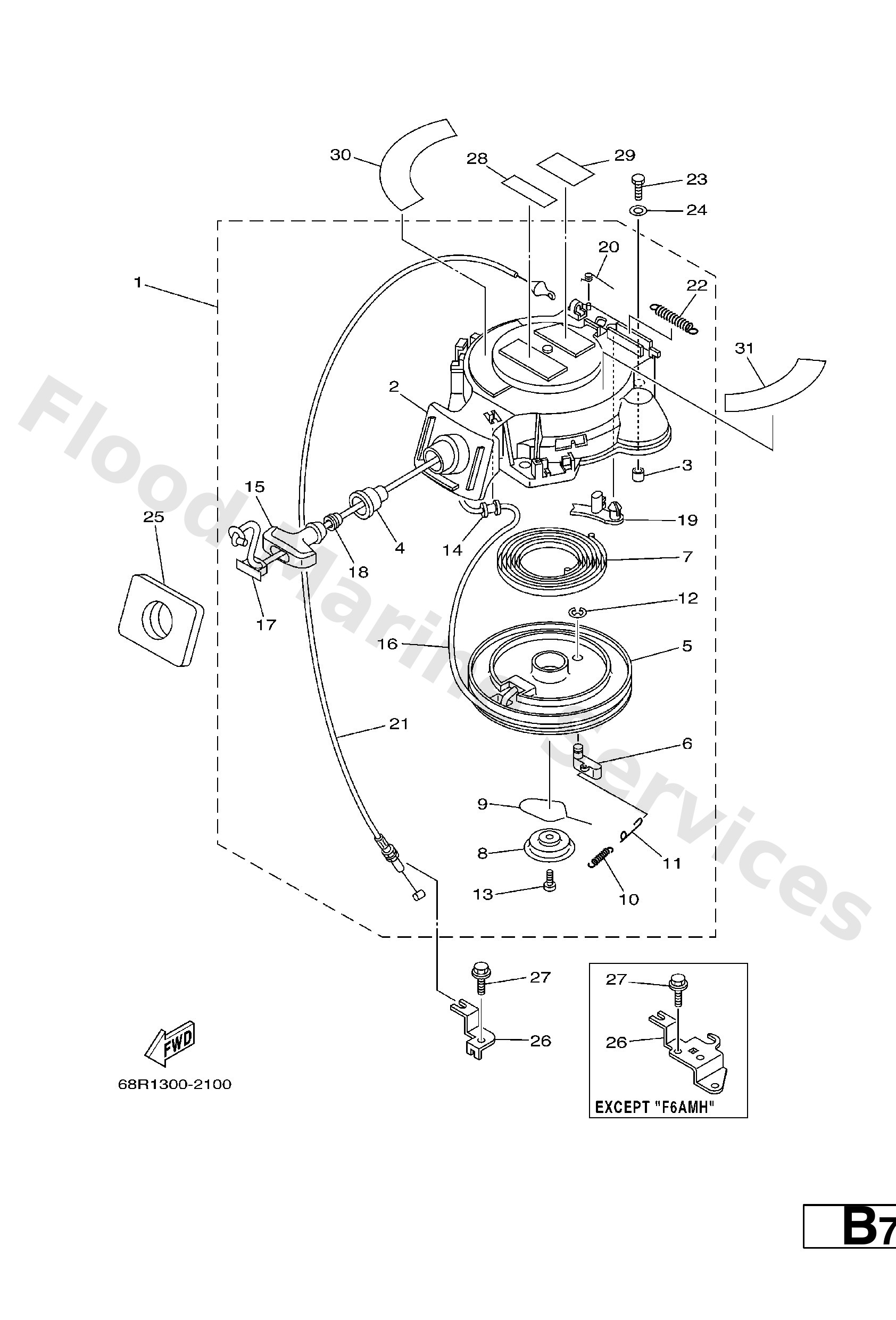

Diagram: STARTER
Parts List
Reference
Description
Price
1
68T−15710−01
Starter assembly
Loading…
↗
2
68T−15711−01
Case, Starter
Loading…
↗
3
67D−15764−00
Collar 1
Loading…
↗
4
68T−15795−00
Guide, rope
Loading…
↗
5
63V−15714−00
Drum, sheave
Loading…
↗
6
63V−15741−00
Pawl, drive
Loading…
↗
7
63V−15713−00
Spring, starter
Loading…
↗
8
68T−15716−00
Plate, drive
Loading…
↗
9
63V−15705−01
Spring, drive pawl
Loading…
↗
10
63V−15767−01
Spring
Loading…
↗
11
68T−15784−00
Spring, return
Loading…
↗
12
63V−15744−00
Circlip
Loading…
↗
13
68T−15793−00
Screw
Loading…
↗
14
68T−15764−00
Collar 1
Loading…
↗
15
6G1−15755−00
Handle, starter
Loading…
↗
16
*
item_description
Loading…
↗
17
6G1−15779−00
Cover
Loading…
↗
18
6A0−15789−00
Damper
Loading…
↗
19
66T−15794−00
Stopper
Loading…
↗
20
66T−15734−00
Spring, return
Loading…
↗
21
68T−15770−00
Cable comp., starter stop
Loading…
↗
22
66T−15731−00
Retainer, spring
Loading…
↗
23
97095−06020
Bolt(7u8)
Loading…
↗
24
92995−06600
Washer, plain (646)
Loading…
↗
25
68T−15762−00
Seal, rubber 2
Loading…
↗
26
68T−15774−00
Stay 4
Loading…
↗
26
68T−15774−10
Stay 4
Loading…
↗
27
90109−06M86
Bolt
Loading…
↗
28
6A1−83625−41
Mark 5
Loading…
↗
29
6A1−83625−51
15 −
Loading…
↗
30
68T−13437−61
Mark, Caution
Loading…
↗
31
68T−85711−60
Mark, caution
Loading…
↗
