F9.9HMH (2012)
STARTER

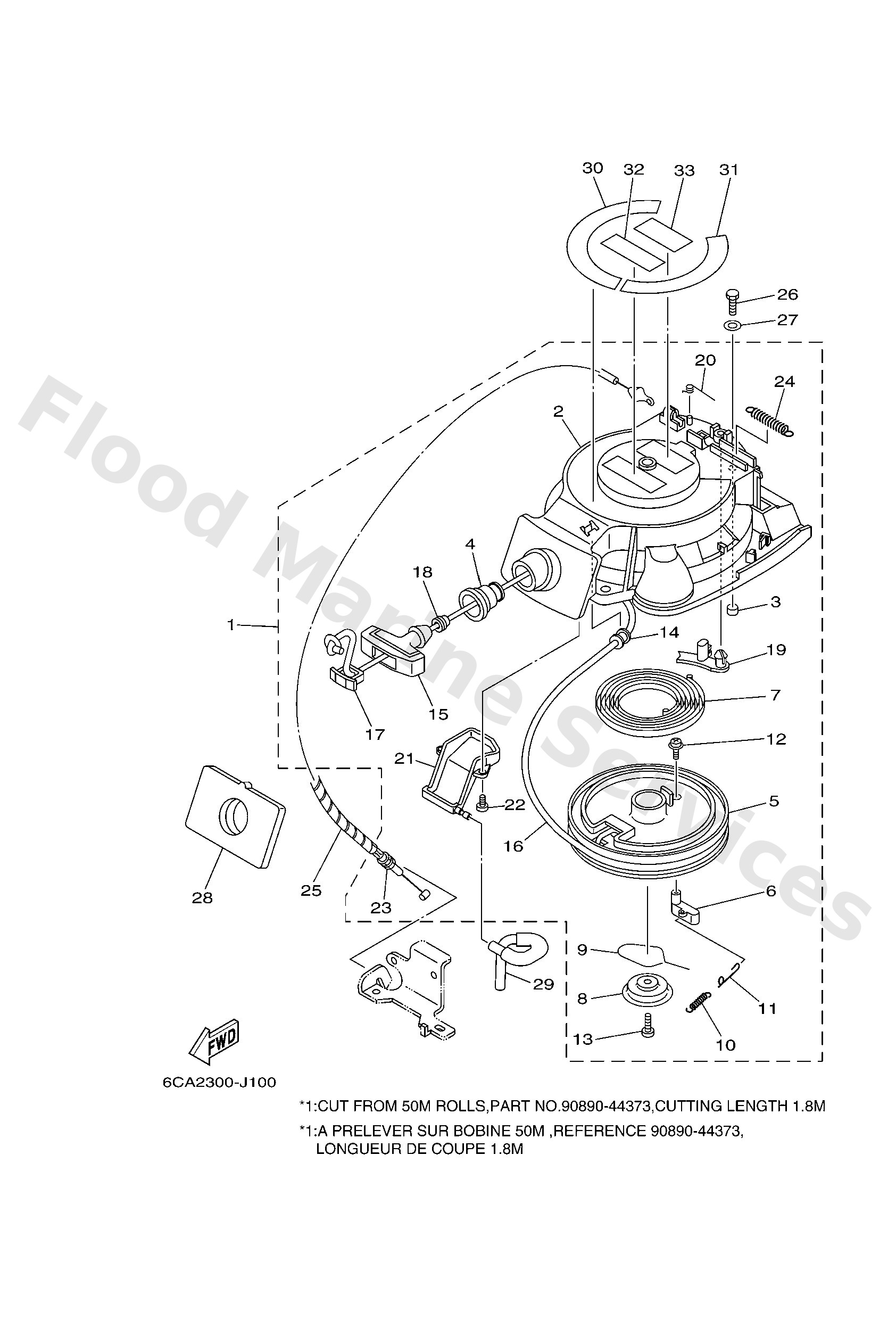

Diagram: STARTER
Parts List
Reference
Description
Price
1
6AH1571001
Starter assembly
Loading…
↗
2
6AH1571100
Case, starter
Loading…
↗
3
67D1576400
Collar 1
Loading…
↗
4
6AH1579500
Guide, rope
Loading…
↗
5
63V1571400
Drum, sheave
Loading…
↗
6
6AH1574110
Pawl, drive
Loading…
↗
7
63V1571300
Spring, starter
Loading…
↗
8
68T1571600
Plate, drive
Loading…
↗
9
63V1570501
Spring, drive pawl
Loading…
↗
10
63V1576701
Spring
Loading…
↗
11
68T1578400
Spring, return
Loading…
↗
12
63V1579300
Screw
Loading…
↗
13
68T1579300
Screw
Loading…
↗
14
68T1576400
Collar 1
Loading…
↗
15
6891575501
Handle, starter
Loading…
↗
16
*
*1
item_description
Loading…
↗
17
6F51577902
Cover
Loading…
↗
18
6A01578900
Damper
Loading…
↗
19
66T1579400
Stopper
Loading…
↗
20
66T1573400
Spring, return
Loading…
↗
21
6AH1578200
Cover, sheave
Loading…
↗
22
6AH1579300
Screw
Loading…
↗
23
6AH1577000
Cable comp., starter stop
Loading…
↗
24
66T1573100
Retainer, spring
Loading…
↗
25
9044606M90
Hose
Loading…
↗
26
9709506020
Bolt(7u8)
Loading…
↗
27
9299506600
Washer, plain (646)
Loading…
↗
28
6AH1576200
Seal, rubber 2
Loading…
↗
29
6AH2431600
Pipe 6
Loading…
↗
30
6AH1442760
Label, instruction
Loading…
↗
31
6AH1343760
Mark, caution
Loading…
↗
32
6AH8199540
Label, warning
Loading…
↗
33
6AH8199550
Label, warning
Loading…
↗
