F9.9JE (2020)
STARTER

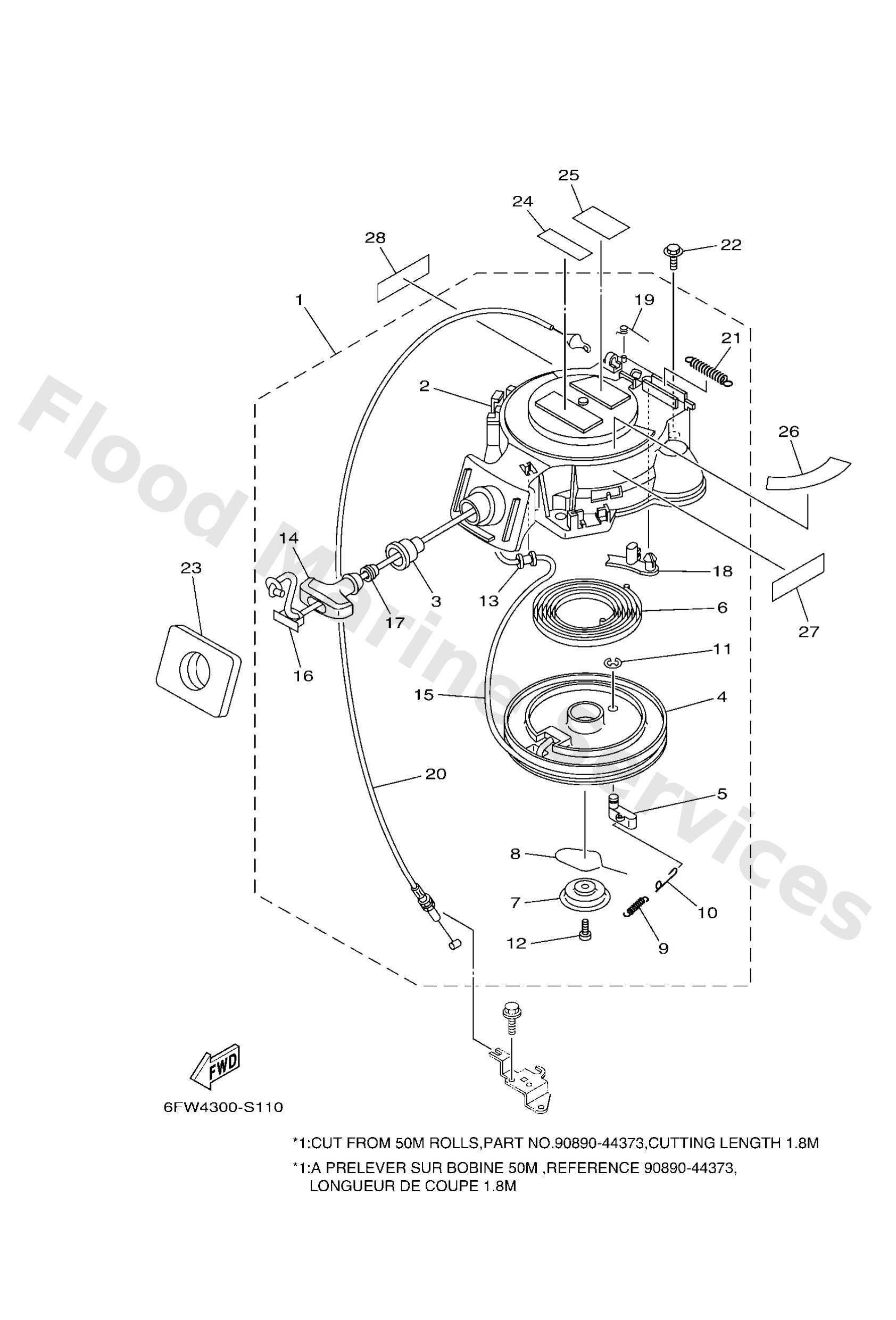

Diagram: STARTER
Parts List
Reference
Description
Price
1
68T1571013
Starter assembly
Loading…
↗
2
68T1571103
Case, starter
Loading…
↗
3
68T1579500
Guide, rope
Loading…
↗
4
63V1571400
Drum, sheave
Loading…
↗
5
63V1574100
Pawl, drive
Loading…
↗
6
63V1571300
Spring, starter
Loading…
↗
7
68T1571600
Plate, drive
Loading…
↗
8
63V1570501
Spring, drive pawl
Loading…
↗
9
63V1576701
Spring
Loading…
↗
10
68T1578400
Spring, return
Loading…
↗
11
63V1574400
Circlip
Loading…
↗
12
68T1579300
Screw
Loading…
↗
13
68T1576400
Collar 1
Loading…
↗
14
6G11575500
Handle, starter
Loading…
↗
15
*
*1
item_description
Loading…
↗
16
6G11577900
Cover
Loading…
↗
17
6A01578900
Damper
Loading…
↗
18
68T1579400
Stopper
Loading…
↗
19
66T1573400
Spring, return
Loading…
↗
20
68T1577000
Cable comp., starter stop
Loading…
↗
21
66T1573100
Retainer, spring
Loading…
↗
22
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
23
68T1576200
Seal, rubber 2
Loading…
↗
24
6EE8199540
Label, warning
Loading…
↗
25
6EE8199550
Label, warning
Loading…
↗
26
68T8571160
Mark, caution
Loading…
↗
27
6EE8199440
Label, safety
Loading…
↗
28
6EE8199450
Label, safety
Loading…
↗
