FT9.9DMH (2004)
STARTER

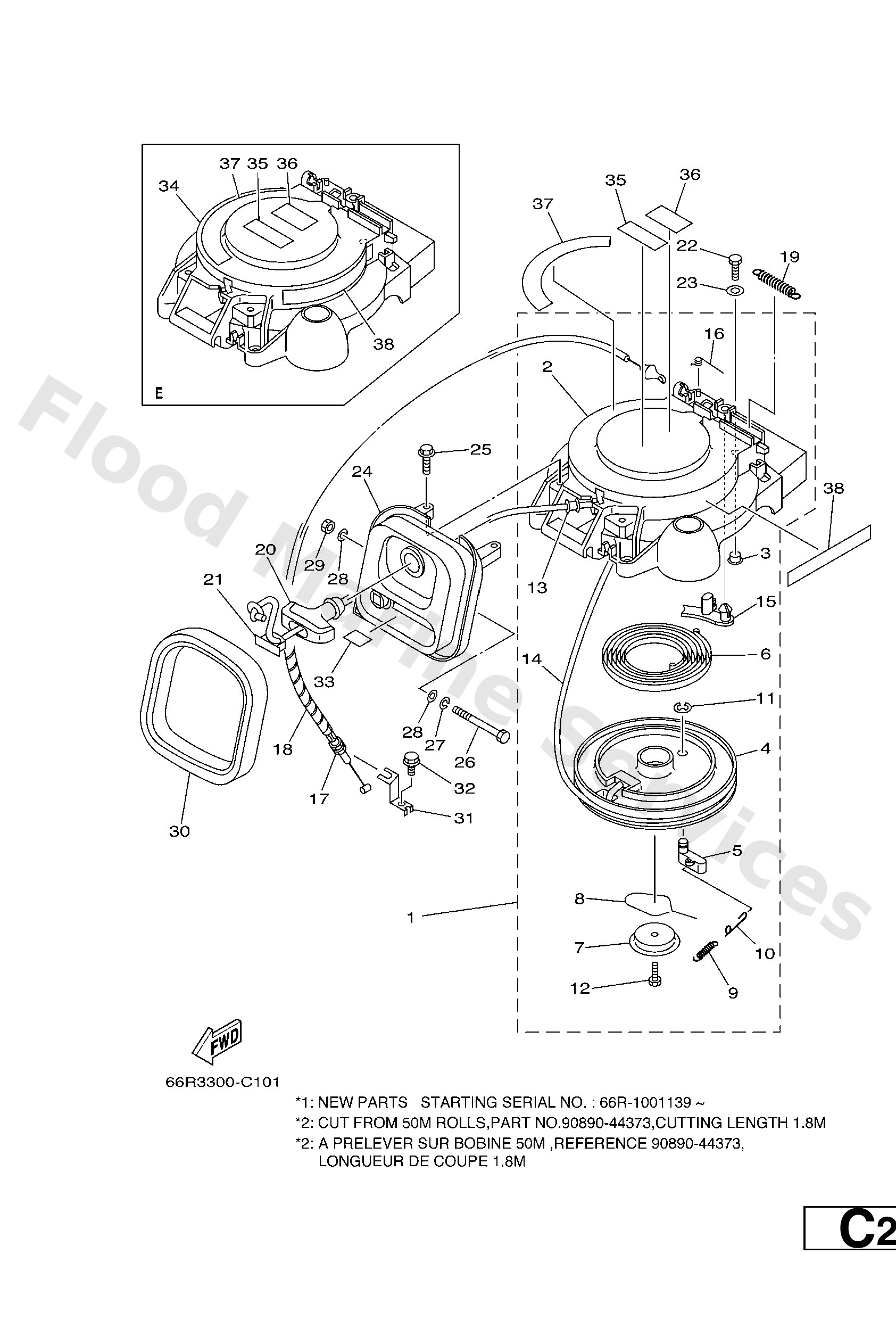

Diagram: STARTER
Parts List
Reference
Description
Price
1
66M1571002
NEW PARTS *1
Starter assembly
Loading…
↗
1
66M1571001
Starter assembly
Loading…
↗
2
66M1571101
Case, starter
Loading…
↗
3
9038706M05
Collar(6h4)
Loading…
↗
4
63V1571400
Drum, sheave
Loading…
↗
5
63V1574100
Pawl, drive
Loading…
↗
6
63V1571300
Spring, starter
Loading…
↗
7
63V1571600
Plate, drive
Loading…
↗
8
63V1570501
Spring, drive pawl
Loading…
↗
9
63V1576701
Spring
Loading…
↗
10
63V1578401
Spring, return
Loading…
↗
11
63V1574400
Circlip
Loading…
↗
12
63V1576800
Screw
Loading…
↗
13
63V1576400
Collar 1
Loading…
↗
14
*
*2
item_description
Loading…
↗
15
66T1579400
Stopper
Loading…
↗
16
66T1573400
Spring, return
Loading…
↗
17
66M1577000
Cable comp., starter stop
Loading…
↗
18
9044606M90
Hose
Loading…
↗
19
66T1573100
Retainer, spring
Loading…
↗
20
6G11575500
Handle, starter
Loading…
↗
21
6G11577900
Cover
Loading…
↗
22
9709506020
Bolt(7u8)
Loading…
↗
23
9299506600
Washer, plain (646)
Loading…
↗
24
66M1575800
Guide, Rope
Loading…
↗
24
66M1575810
Guide, Rope
Loading…
↗
25
9011906M59
Bolt, with washer
Loading…
↗
26
9709506090
Bolt(62y)
Loading…
↗
27
9299506100
Washer(6a1)
Loading…
↗
28
9020106M05
Washer, plate(6e3)
Loading…
↗
29
9538006700
Nut
Loading…
↗
30
66M1576200
Seal, Rubber 2
Loading…
↗
31
66M1577400
Stay 4
Loading…
↗
32
9010906M86
Bolt
Loading…
↗
33
66M8434200
Seat, Emblem
Loading…
↗
34
66M1571110
Case, starter
Loading…
↗
35
6A18362541
Mark 5
Loading…
↗
36
6A18362551
-
Loading…
↗
37
66M1442760
Label, Instruction
Loading…
↗
38
6G81343764
Mark, caution
Loading…
↗
