150FETO (2005)
STARTING MOTOR

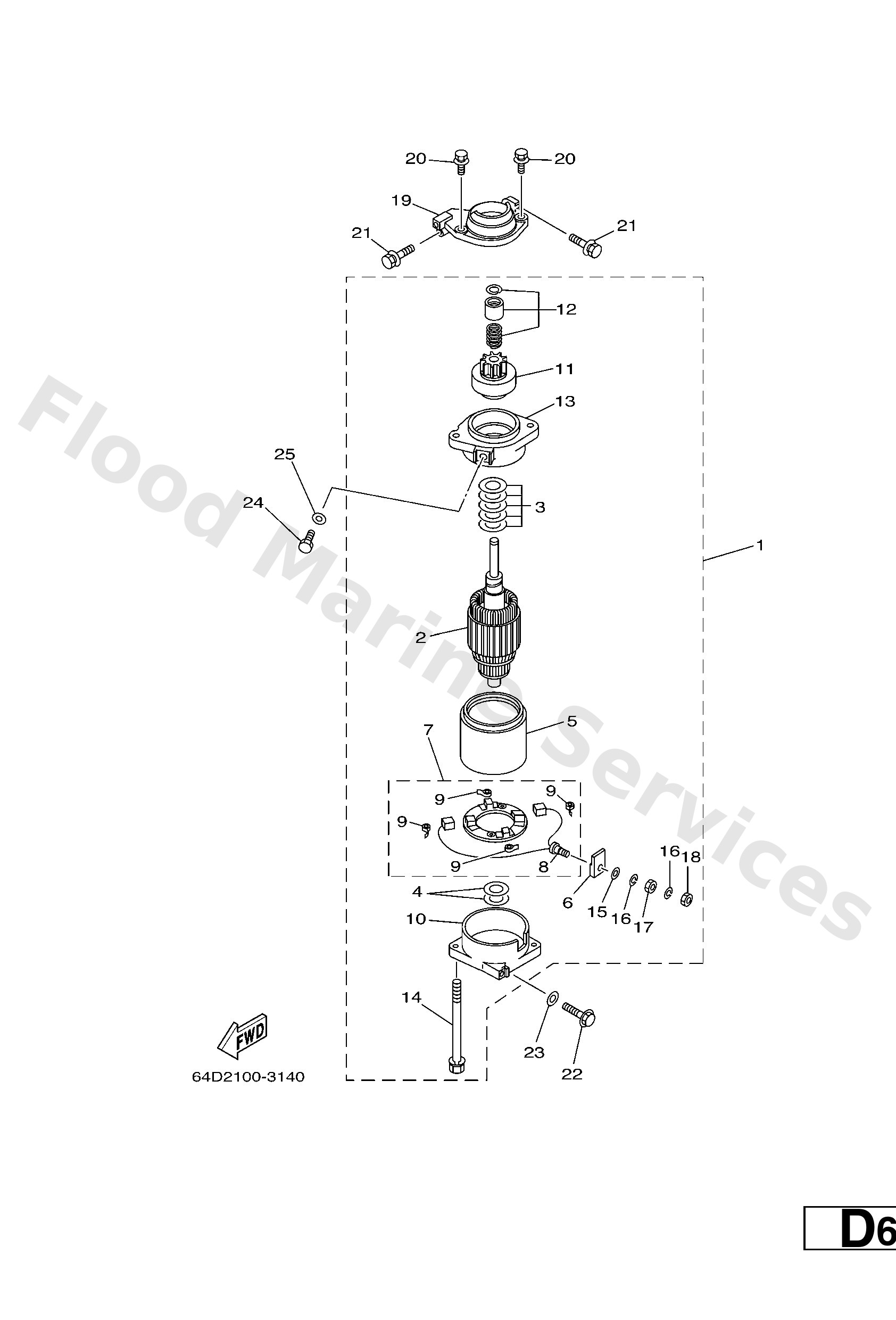

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6N78180010
Starting motor assembly
Loading…
↗
2
6N78185010
Armature assembly
Loading…
↗
3
61A8180900
Washer kit
Loading…
↗
4
61A8182400
Washer 2
Loading…
↗
5
6N78181000
Stator assembly
Loading…
↗
6
6K78182G10
Bush, terminal
Loading…
↗
7
6N78184000
Brush holder assembly
Loading…
↗
8
6N78180100
Brush set
Loading…
↗
9
6N78181300
Spring, brush
Loading…
↗
10
6N78182010
Rear bracket assembly
Loading…
↗
11
6N78180700
Gear assembly, starting motor
Loading…
↗
12
6N78185700
Pinion stopper set
Loading…
↗
13
6N78183000
Front bracket assembly
Loading…
↗
14
6K78182610
Bolt
Loading…
↗
15
6E58182E10
Washer, spring
Loading…
↗
16
6E58182F10
Washer,plain
Loading…
↗
17
6E58182A10
Nut
Loading…
↗
18
6E58182K10
Nut
Loading…
↗
19
6R3818220094
Bracket, starting motor
Loading…
↗
20
9011908M76
Bolt, with washer(6e5)
Loading…
↗
21
9011908M77
Bolt, with washer(6e5)
Loading…
↗
22
9011908M57
Bolt, with washer
Loading…
↗
23
9299008600
Washer, plain (663)
Loading…
↗
24
9709508016
Bolt, hexagon deep recess
Loading…
↗
25
9299508600
Washer, plain (663)
Loading…
↗
