15FWC (2002)
STARTING MOTOR

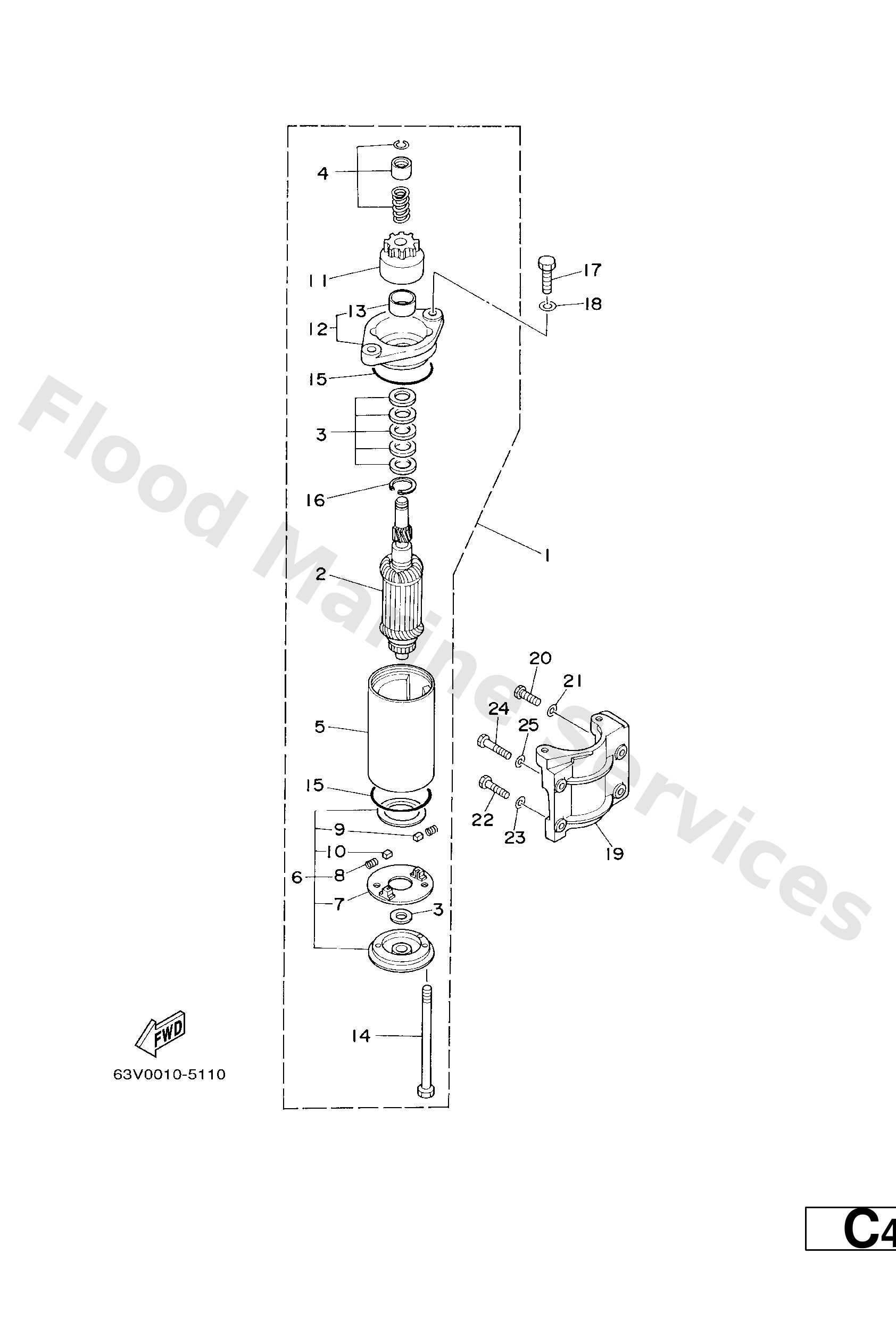

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6L28180011
Starting motor assembly
Loading…
↗
2
6L28185011
Armature assembly
Loading…
↗
3
6828180910
Washer kit
Loading…
↗
4
6L28183310
Ring, stop
Loading…
↗
5
6828181011
Stator assembly
Loading…
↗
6
6L28182010
Rear bracket assembly
Loading…
↗
7
6L28184010
Brush holder assembly
Loading…
↗
8
6828181310
Spring, brush
Loading…
↗
9
6L28181110
Brush 1
Loading…
↗
10
6L28181210
Brush 2
Loading…
↗
11
6828183210
Pinion assembly
Loading…
↗
12
6828183010
Front Bracket assembly
Loading…
↗
13
6828183100
Metal, front
Loading…
↗
14
6828182610
Bolt
Loading…
↗
15
6828184710
O-ring
Loading…
↗
16
6828183410
Ring
Loading…
↗
17
97013--08025
Bolt (682)
Loading…
↗
18
92903--08600
Washer, plain (663)
Loading…
↗
19
682818224394
Bracket, Starting Motor
Loading…
↗
20
97075--06020
Bolt(7u8)
Loading…
↗
21
92995--06600
Washer, plain (646)
Loading…
↗
22
97075--06025
Bolt
Loading…
↗
24
97075--06030
Bolt(jf7)
Loading…
↗
