250AETO (2005)
STARTING MOTOR

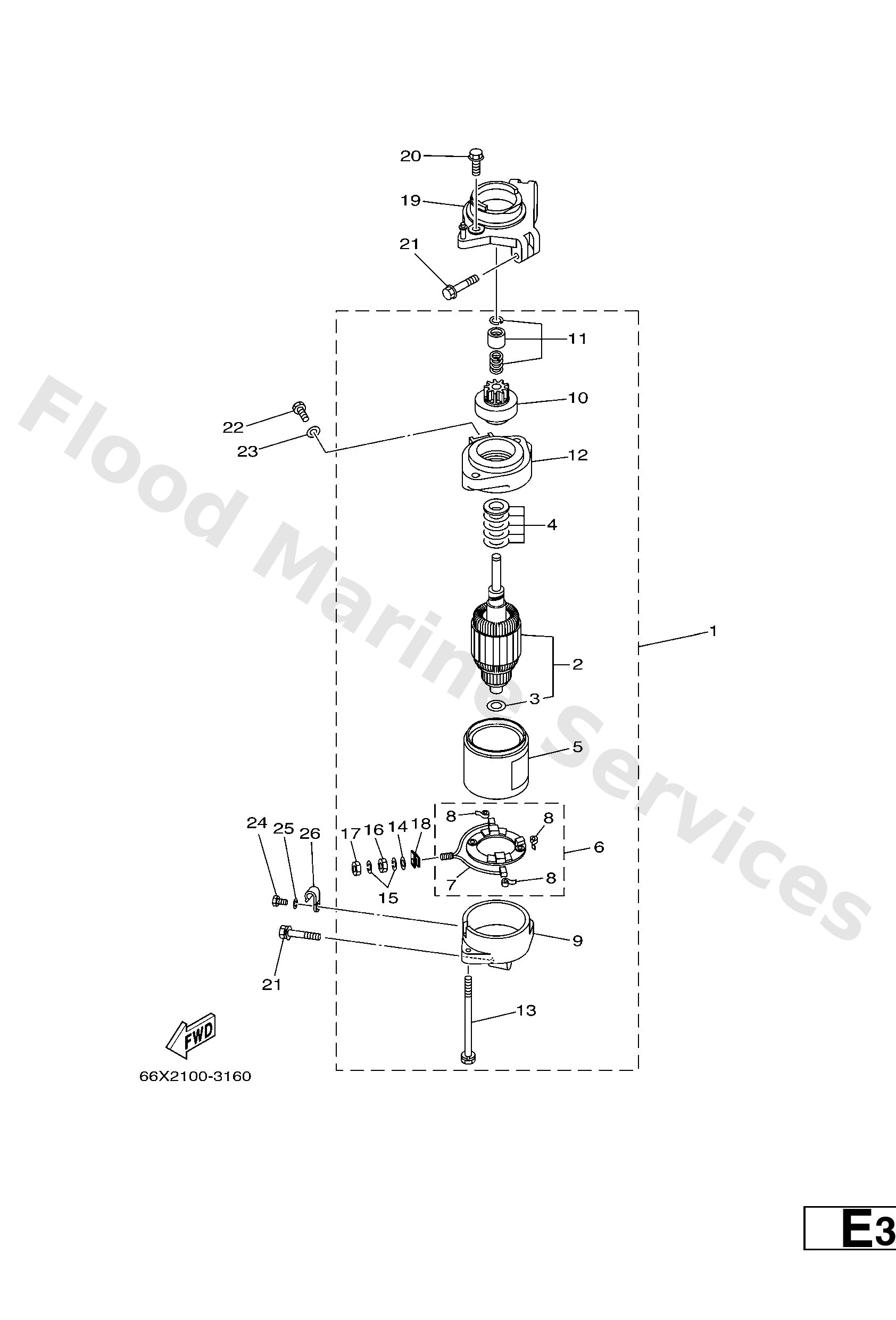

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
69L8180000
Starting motor assembly
Loading…
↗
2
61A8185001
Armature assembly
Loading…
↗
3
61A8182400
Washer 2
Loading…
↗
4
61A8180900
Washer kit
Loading…
↗
5
6K78181000
Stator assembly
Loading…
↗
6
61A8184000
Brush holder assembly
Loading…
↗
7
6K78180110
Brush Set
Loading…
↗
8
6E58181310
Spring, Brush
Loading…
↗
9
61A8182000
Rear Bracket assembly
Loading…
↗
10
61A8180700
Gear assembly, Starting Motor
Loading…
↗
11
61H8185700
Retainer
Loading…
↗
12
61A8183000
Front Bracket assembly
Loading…
↗
13
6K78182610
Bolt
Loading…
↗
14
6E58182E10
Washer, spring
Loading…
↗
15
6E58182F10
Washer,plain
Loading…
↗
16
6E58182A10
Nut
Loading…
↗
17
6E58182K10
Nut
Loading…
↗
18
6K78182G10
Bush, terminal
Loading…
↗
19
61A818220094
Bracket, starting motor
Loading…
↗
20
9011908M76
Bolt, with washer(6e5)
Loading…
↗
21
9011908M77
Bolt, with washer(6e5)
Loading…
↗
22
9709508016
Bolt, hexagon deep recess
Loading…
↗
23
9299508600
Washer, plain (663)
Loading…
↗
24
9709506012
Bolt(gh1)
Loading…
↗
25
9299506600
Washer, plain (646)
Loading…
↗
26
9046506M86
Clamp
Loading…
↗
