250BETO (2002)
STARTING MOTOR

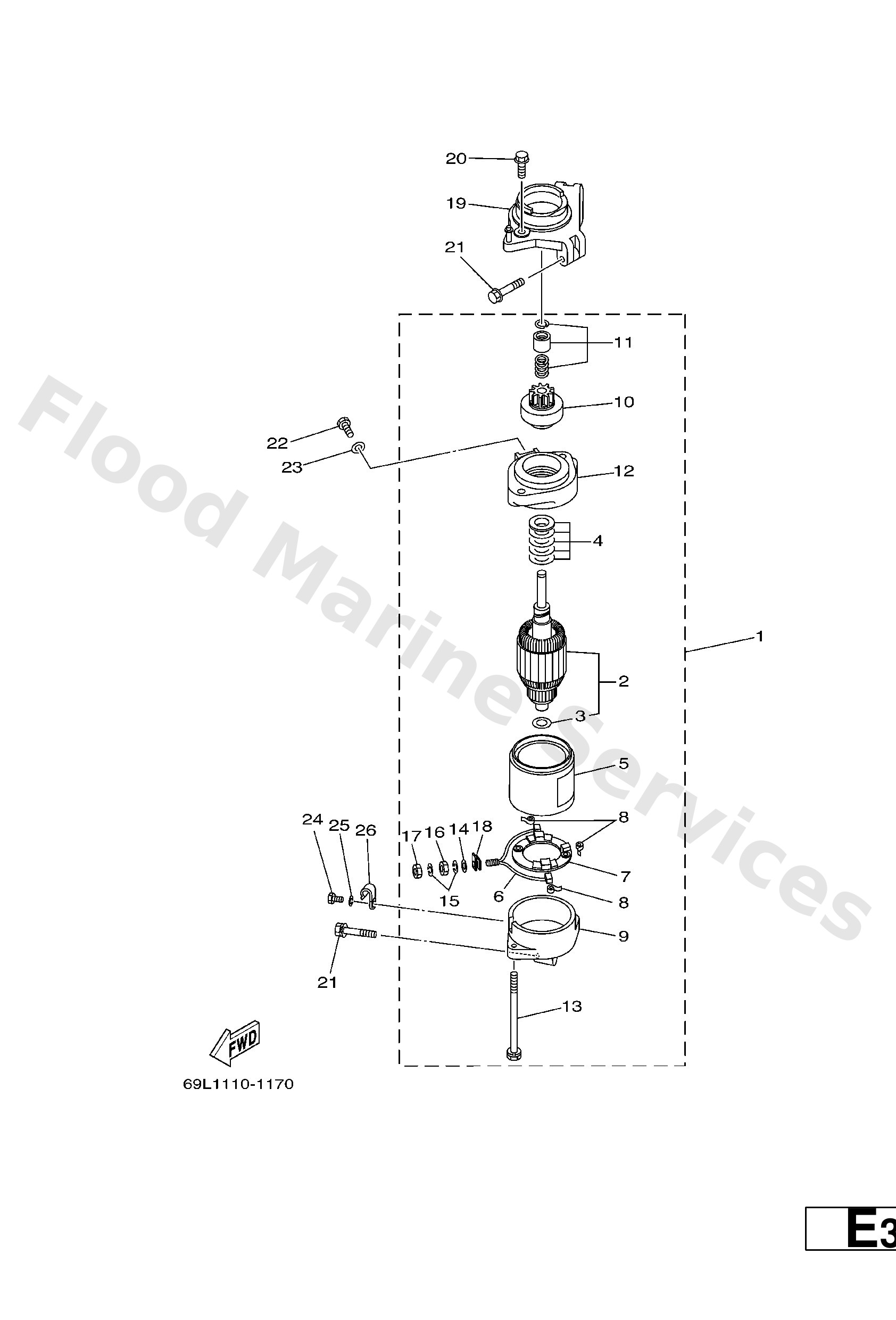

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
61A--81800--01
Starting motor assembly
Loading…
↗
2
61A--81850--01
Armature assembly
Loading…
↗
3
61A--81824--00
Washer 2
Loading…
↗
4
61A--81809--00
Washer kit
Loading…
↗
5
6K7--81810--10
Stator assembly
Loading…
↗
6
6K7--81801--10
Brush Set
Loading…
↗
7
61A--81840--00
Brush holder assembly
Loading…
↗
8
6E5--81813--10
Spring, Brush
Loading…
↗
9
61A--81820--00
Rear Bracket assembly
Loading…
↗
10
61A--81807--00
Gear assembly, Starting Motor
Loading…
↗
11
61H--81857--00
Retainer
Loading…
↗
12
61A--81830--00
Front Bracket assembly
Loading…
↗
13
6K7--81826--10
Bolt
Loading…
↗
14
6E5--8182E--10
Washer, spring
Loading…
↗
15
6E5--8182F--10
Washer,plain
Loading…
↗
16
6E5--8182A--10
Nut
Loading…
↗
17
6E5--8182K--10
Nut
Loading…
↗
18
6K7--8182G--10
Bush, terminal
Loading…
↗
19
61A--81822--00--94
Bracket, starting motor
Loading…
↗
20
90119--08M76
Bolt, with washer(6e5)
Loading…
↗
21
90119--08M77
Bolt, with washer(6e5)
Loading…
↗
22
97095--08016
Bolt, hexagon deep recess
Loading…
↗
23
92995--08600
Washer, plain (663)
Loading…
↗
24
97095--06012
Bolt(gh1)
Loading…
↗
25
92995--06600
Washer, plain (646)
Loading…
↗
26
90465--06M86
Clamp
Loading…
↗
