25BMH (2002)
STARTING MOTOR

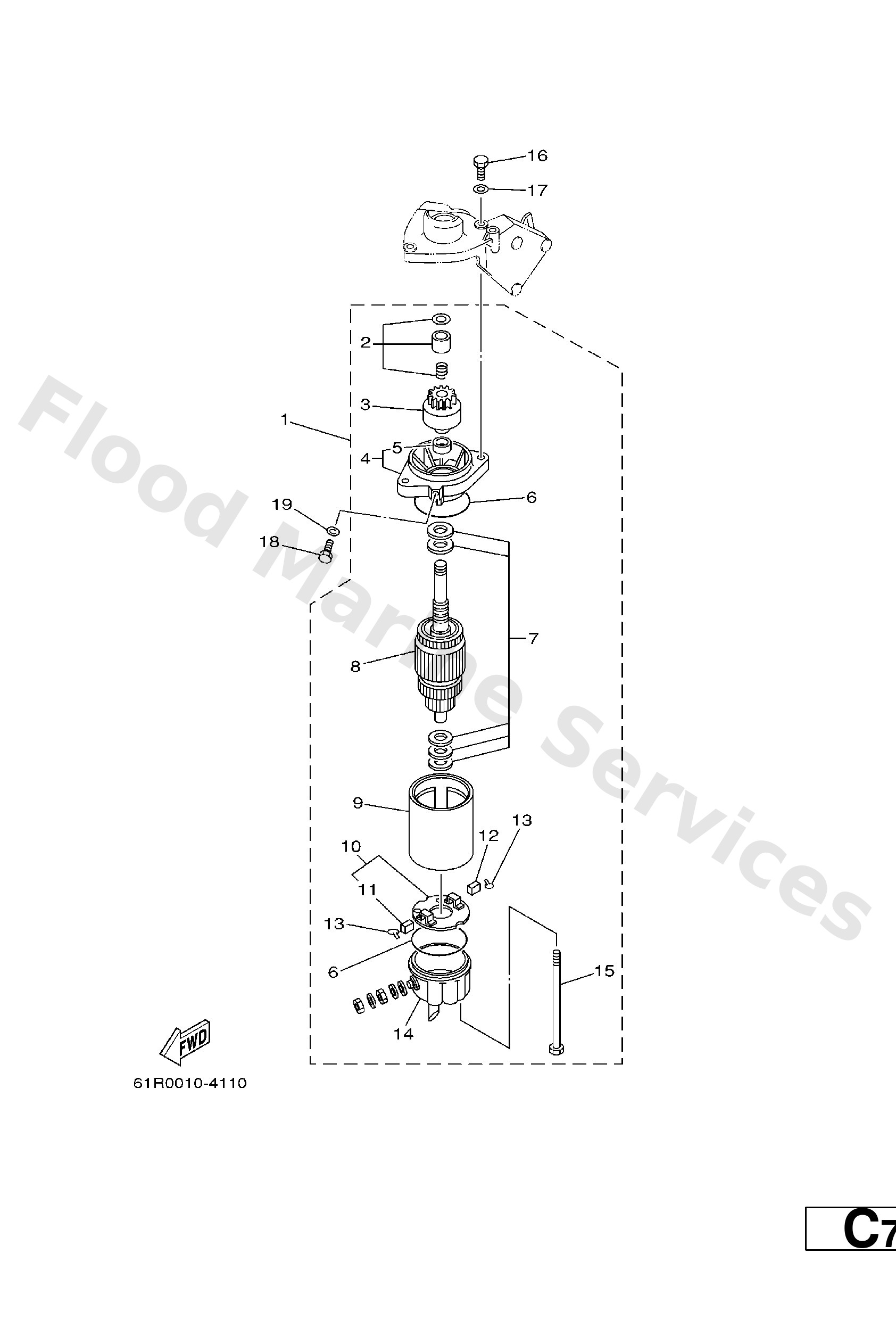

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
689--81800--13
Starting motor assembly
Loading…
↗
2
689--81857--11
Pinion stopper set
Loading…
↗
3
689--81807--12
Pinion assembly
Loading…
↗
4
689--81830--11
Front cover ass'y
Loading…
↗
5
689--81831--00
Metal, front
Loading…
↗
6
689--81847--11
O-ring
Loading…
↗
7
689--81809--11
Washer kit
Loading…
↗
8
689--81850--12
Armature assembly
Loading…
↗
9
689--81810--11
Stator ass'y
Loading…
↗
10
689--81840--11
Brush holder assembly
Loading…
↗
11
689--81812--11
Brush 2
Loading…
↗
12
689--81811--11
Brush 1
Loading…
↗
13
689--81813--10
Spring, brush
Loading…
↗
14
689--81820--11
Rear cover ass'y
Loading…
↗
15
689--81826--10
Bolt
Loading…
↗
16
97013--08030
Bolt
Loading…
↗
17
92903--08600
Washer, plain (663)
Loading…
↗
18
97013--08012
Bolt(62e)
Loading…
↗
