30DMHO (2002)
STARTING MOTOR

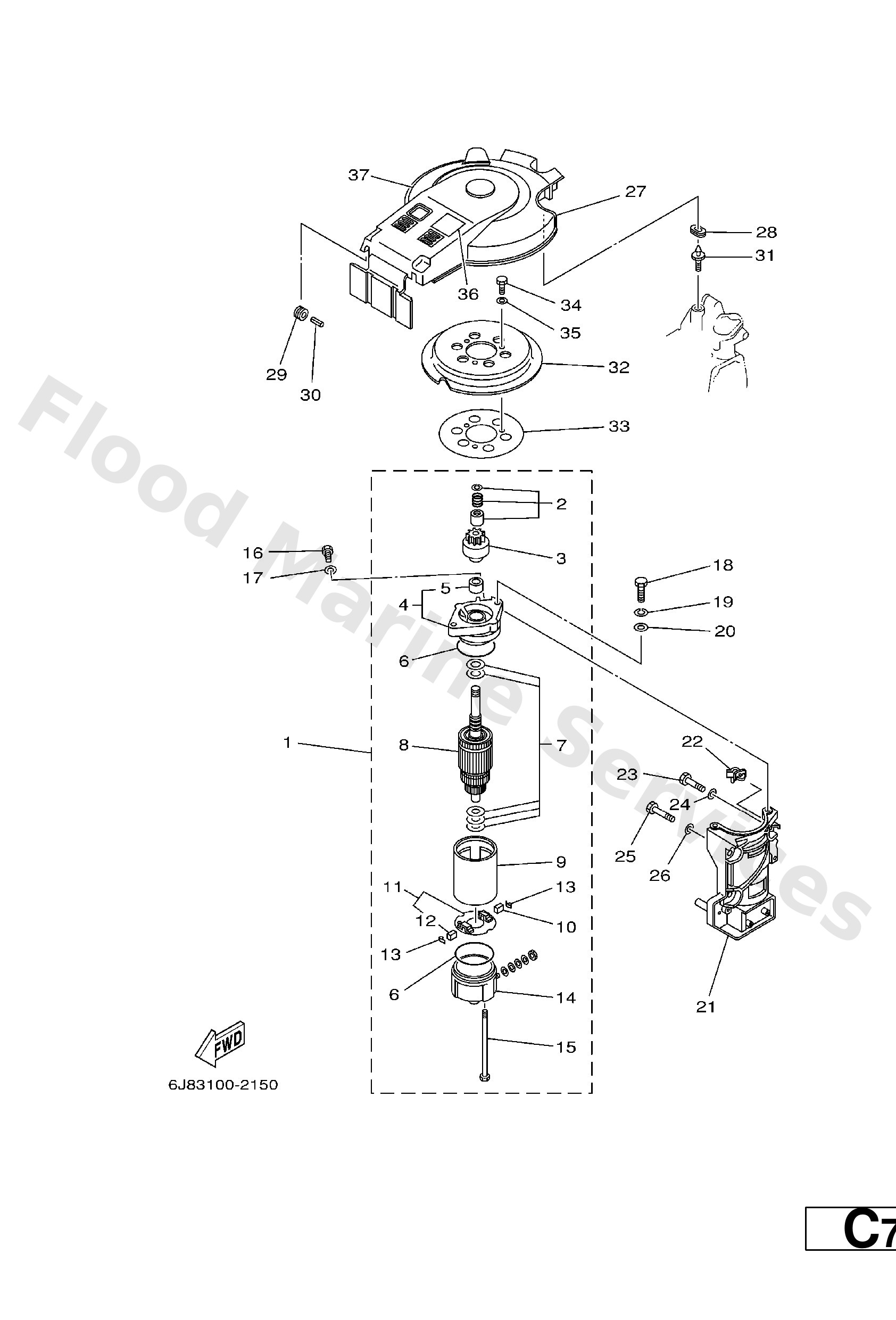

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6F58180011
Starting motor assembly
Loading…
↗
2
6898185711
Pinion stopper set
Loading…
↗
3
6898180712
Pinion assembly
Loading…
↗
4
6F58183011
Front cover assembly
Loading…
↗
5
6898183100
Metal, front
Loading…
↗
6
6898184711
O-ring
Loading…
↗
7
6898180911
Washer kit
Loading…
↗
8
6898185012
Armature assembly
Loading…
↗
9
6898181011
Stator ass'y
Loading…
↗
10
6898181111
Brush 1
Loading…
↗
11
6898184011
Brush holder assembly
Loading…
↗
12
6898181211
Brush 2
Loading…
↗
13
6898181310
Spring, brush
Loading…
↗
14
6898182011
Rear cover ass'y
Loading…
↗
15
6898182610
Bolt
Loading…
↗
16
9701308016
Bolt, hexagon
Loading…
↗
17
9290308600
Washer, plain (663)
Loading…
↗
18
9701308030
Bolt
Loading…
↗
19
9290308100
Ybs67-8 washer, spring
Loading…
↗
21
6J8818220194
Bracket, starting motor
Loading…
↗
22
9046403M15
Clamp(6j8)
Loading…
↗
23
9701308035
Bolt
Loading…
↗
25
9701308055
Bolt, hexagon
Loading…
↗
27
6J88133710
Cover, flywheel
Loading…
↗
28
9048014M17
Grommet(6j8)
Loading…
↗
29
9048010M16
Grommet(6j8)
Loading…
↗
30
9169050022
Pin, spring (676)
Loading…
↗
31
6J88133800
Clamp, lead
Loading…
↗
32
6J815723E1
Pulley, starter
Loading…
↗
33
6J881365A0
Gasket, hole cover
Loading…
↗
34
9701308014
Bolt(692)
Loading…
↗
36
6J81442700
Label, Instruction
Loading…
↗
37
6J81343781
Mark, caution
Loading…
↗
