30DMHO (2003)
STARTING MOTOR

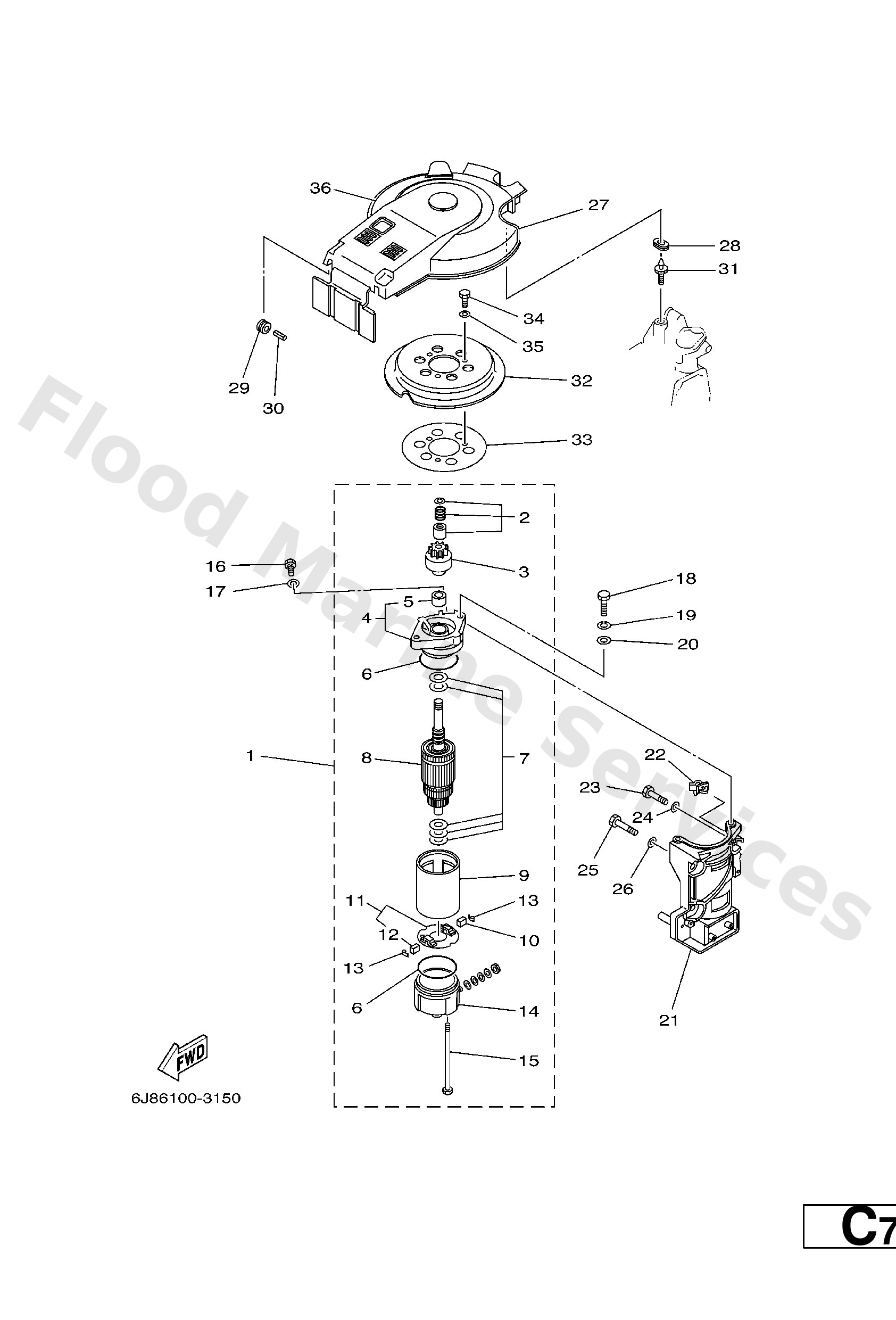

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6F5−81800−11
Starting motor assembly
Loading…
↗
2
689−81857−11
Pinion stopper set
Loading…
↗
3
689−81807−12
Pinion assembly
Loading…
↗
4
6F5−81830−11
Front cover assembly
Loading…
↗
5
689−81831−00
Metal, front
Loading…
↗
6
689−81847−11
O-ring
Loading…
↗
7
689−81809−11
Washer kit
Loading…
↗
8
689−81850−12
Armature assembly
Loading…
↗
9
689−81810−11
Stator ass'y
Loading…
↗
10
689−81811−11
Brush 1
Loading…
↗
11
689−81840−11
Brush holder assembly
Loading…
↗
12
689−81812−11
Brush 2
Loading…
↗
13
689−81813−10
Spring, brush
Loading…
↗
14
689−81820−11
Rear cover ass'y
Loading…
↗
15
689−81826−10
Bolt
Loading…
↗
16
97013−08016
Bolt, hexagon
Loading…
↗
17
92903−08600
Washer, plain (663)
Loading…
↗
18
97013−08030
Bolt
Loading…
↗
19
92903−08100
Ybs67-8 washer, spring
Loading…
↗
21
6J8−81822−01−94
Bracket, starting motor
Loading…
↗
22
90464−03M15
Clamp(6j8)
Loading…
↗
23
97013−08035
Bolt
Loading…
↗
25
97013−08055
Bolt, hexagon
Loading…
↗
27
6J8−81337−10
Cover, flywheel
Loading…
↗
28
90480−14M17
Grommet(6j8)
Loading…
↗
29
90480−10M16
Grommet(6j8)
Loading…
↗
30
91690−50022
Pin, spring (676)
Loading…
↗
31
6J8−81338−00
Clamp, lead
Loading…
↗
32
6J8−15723−E1
Pulley, starter
Loading…
↗
33
6J8−81365−A0
Gasket, hole cover
Loading…
↗
34
97013−08014
Bolt(692)
Loading…
↗
36
6J8−13437−81
Mark, caution
Loading…
↗
