50GETO (2003)
STARTING MOTOR

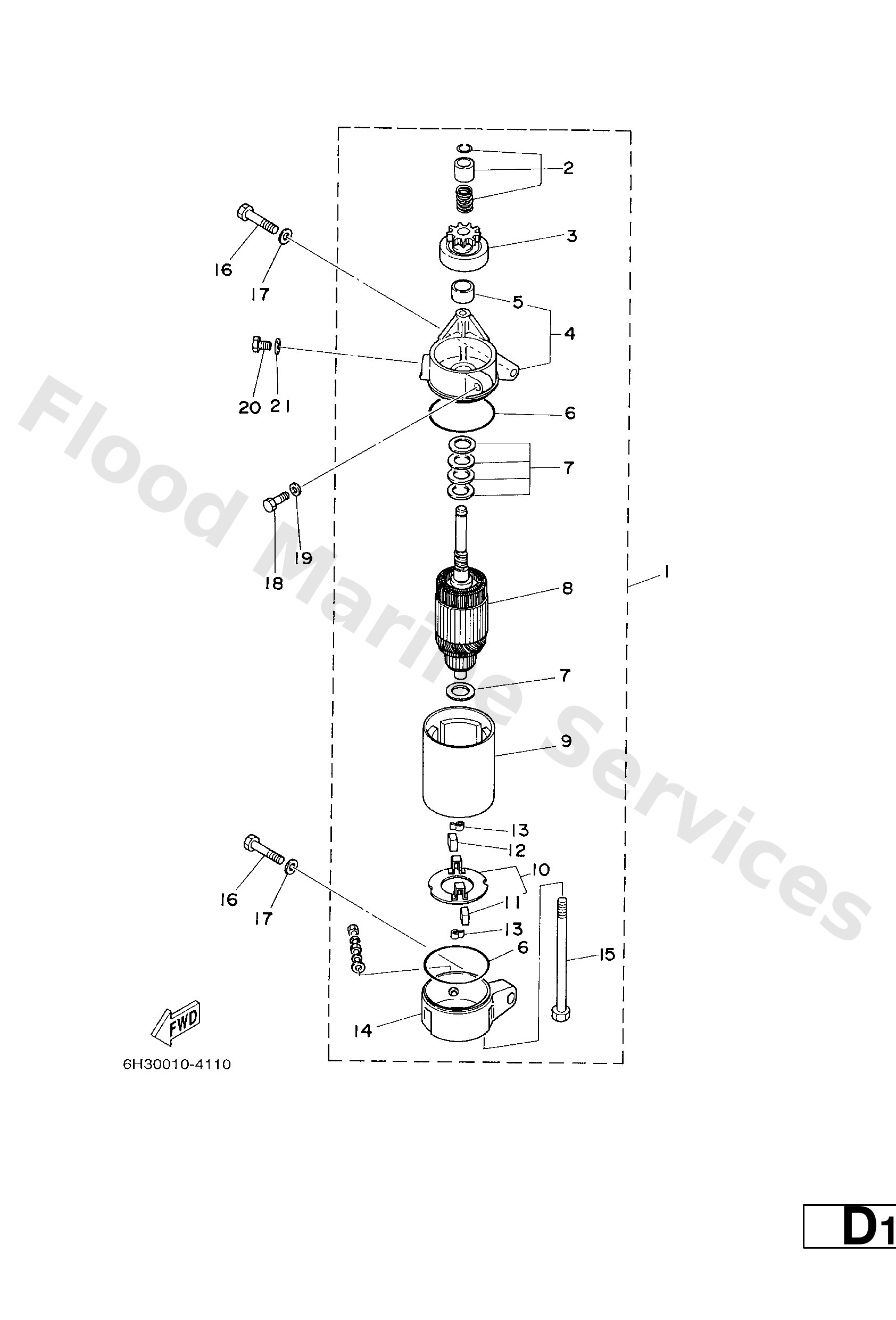

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6H3−81800−11
Starting motor assembly
Loading…
↗
2
689−81857−11
Pinion stopper set
Loading…
↗
3
6H3−81807−10
Pinion assembly
Loading…
↗
4
6H3−81830−10
Front cover assembly
Loading…
↗
5
689−81831−00
Metal, front
Loading…
↗
6
689−81847−11
O-ring
Loading…
↗
7
689−81809−11
Washer kit
Loading…
↗
8
689−81850−12
Armature assembly
Loading…
↗
9
6H3−81810−10
Stator assembly
Loading…
↗
10
689−81840−11
Brush holder assembly
Loading…
↗
11
689−81812−11
Brush 2
Loading…
↗
12
689−81811−11
Brush 1
Loading…
↗
13
689−81813−10
Spring, brush
Loading…
↗
14
6H3−81820−11
Rear cover assembly
Loading…
↗
15
689−81826−10
Bolt
Loading…
↗
16
97013−08035
Bolt
Loading…
↗
17
92903−08600
Washer, plain (663)
Loading…
↗
18
97013−06025
Bolt(62y)
Loading…
↗
19
92903−06600
Washer, plain (646)
Loading…
↗
20
97013−08016
Bolt, hexagon
Loading…
↗
