55BET (2002)
STARTING MOTOR

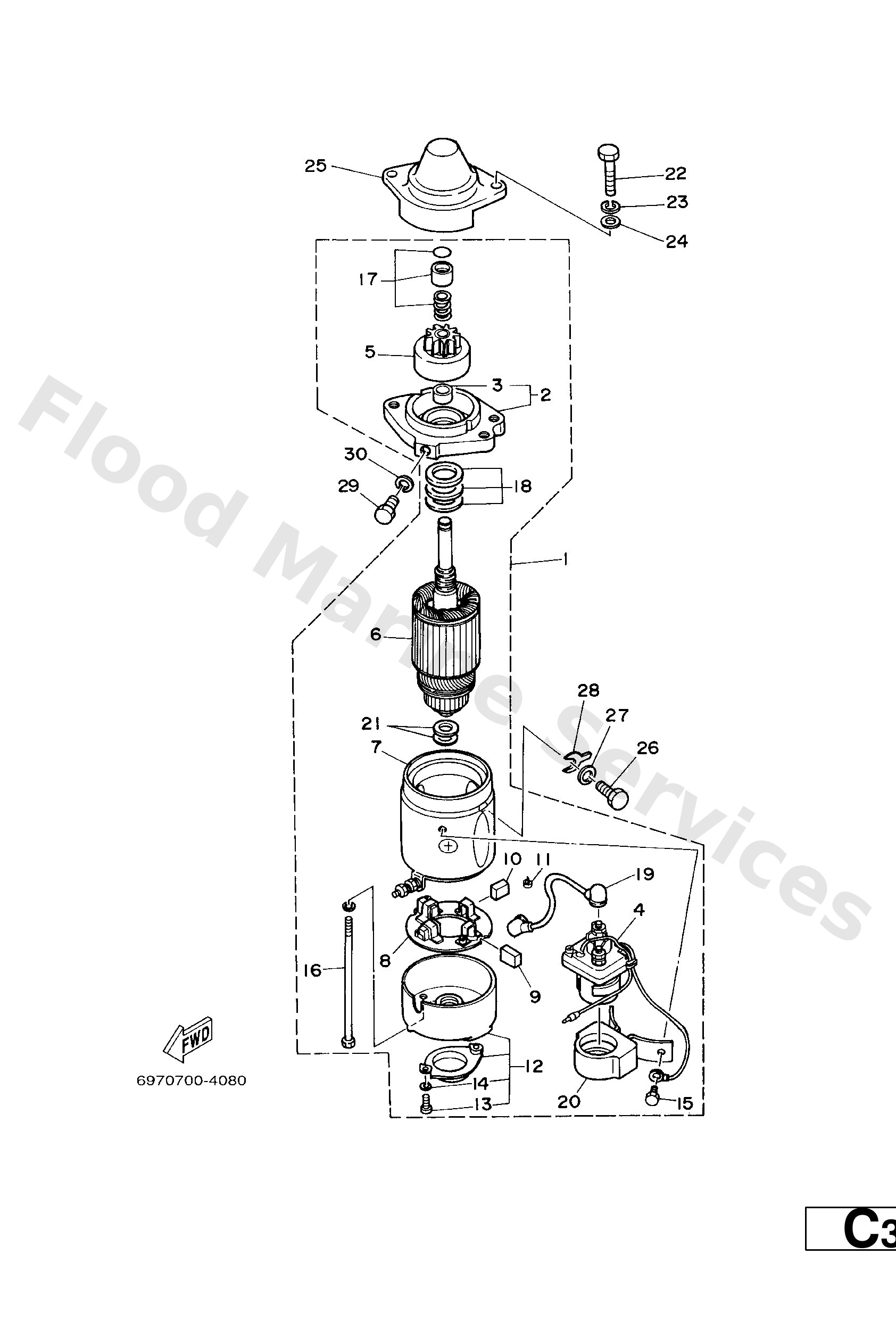

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6978180013
Starting motor assembly
Loading…
↗
2
6768183010
Front cover assembly
Loading…
↗
3
688--81831--00
Metal, front
Loading…
↗
4
6828194111
Starter, relay
Loading…
↗
5
6638183212
Pinion assembly
Loading…
↗
6
6768185012
Armature assembly
Loading…
↗
7
6638181011
Stator assembly
Loading…
↗
8
663--81840--11
Brush holder assembly
Loading…
↗
9
663--81811--11
Brush 1
Loading…
↗
10
663--81812--11
Brush 2
Loading…
↗
11
663--81813--10
Spring, brush
Loading…
↗
12
663--81820--12
Rear bracket assembly
Loading…
↗
13
9850304012
Screw, pan head (686)
Loading…
↗
14
9290104100
Ybs67-4 washer, spring
Loading…
↗
15
9731306010
Bolt
Loading…
↗
16
663--81826--10
Bolt 1
Loading…
↗
17
6978185712
Pinion stopper set
Loading…
↗
18
6978180910
Washer kit
Loading…
↗
19
6978181510
Wire, lead
Loading…
↗
20
6978195210
Holder, relay
Loading…
↗
21
688--81824--00
Washer 2
Loading…
↗
22
9701308040
Bolt
Loading…
↗
23
92903--08100
Ybs67-8 washer, spring
Loading…
↗
24
92903--08600
Washer, plain (663)
Loading…
↗
25
663818420194
Cover 3
Loading…
↗
26
97013--08025
Bolt (682)
Loading…
↗
28
6638116200
AP
Washer, Plain
Loading…
↗
29
97013--08016
Bolt, hexagon
Loading…
↗
