70BETO (2014)
STARTING MOTOR

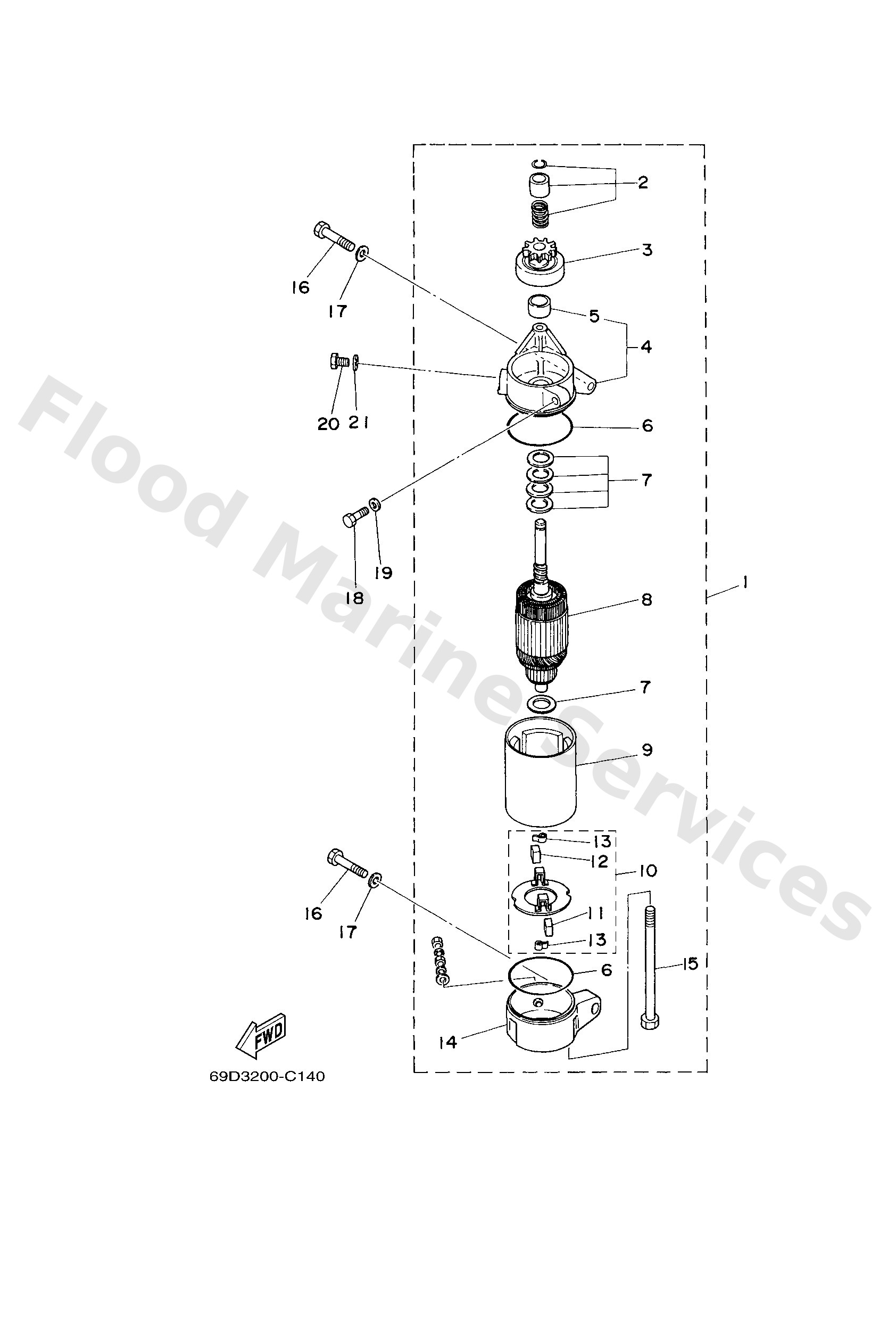

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6H38180011
Starting motor assembly
Loading…
↗
2
6898185711
Pinion stopper set
Loading…
↗
3
6H38180710
Pinion assembly
Loading…
↗
4
6H38183010
Front cover assembly
Loading…
↗
5
6898183100
Metal, front
Loading…
↗
6
6898184711
O-ring
Loading…
↗
7
6898180911
Washer kit
Loading…
↗
8
6898185012
Armature assembly
Loading…
↗
9
6H38181010
Stator assembly
Loading…
↗
10
6898184011
Brush holder assembly
Loading…
↗
11
6898181211
Brush 2
Loading…
↗
12
6898181111
Brush 1
Loading…
↗
13
6898181310
Spring, brush
Loading…
↗
14
6H38182011
Rear cover assembly
Loading…
↗
15
6898182610
Bolt
Loading…
↗
16
9701308035
Bolt
Loading…
↗
17
9290308600
Washer, plain (663)
Loading…
↗
18
9701306025
Bolt(62y)
Loading…
↗
19
9290306600
Washer, plain (646)
Loading…
↗
20
9701308016
Bolt, hexagon
Loading…
↗
