90AETO (2003)
STARTING MOTOR

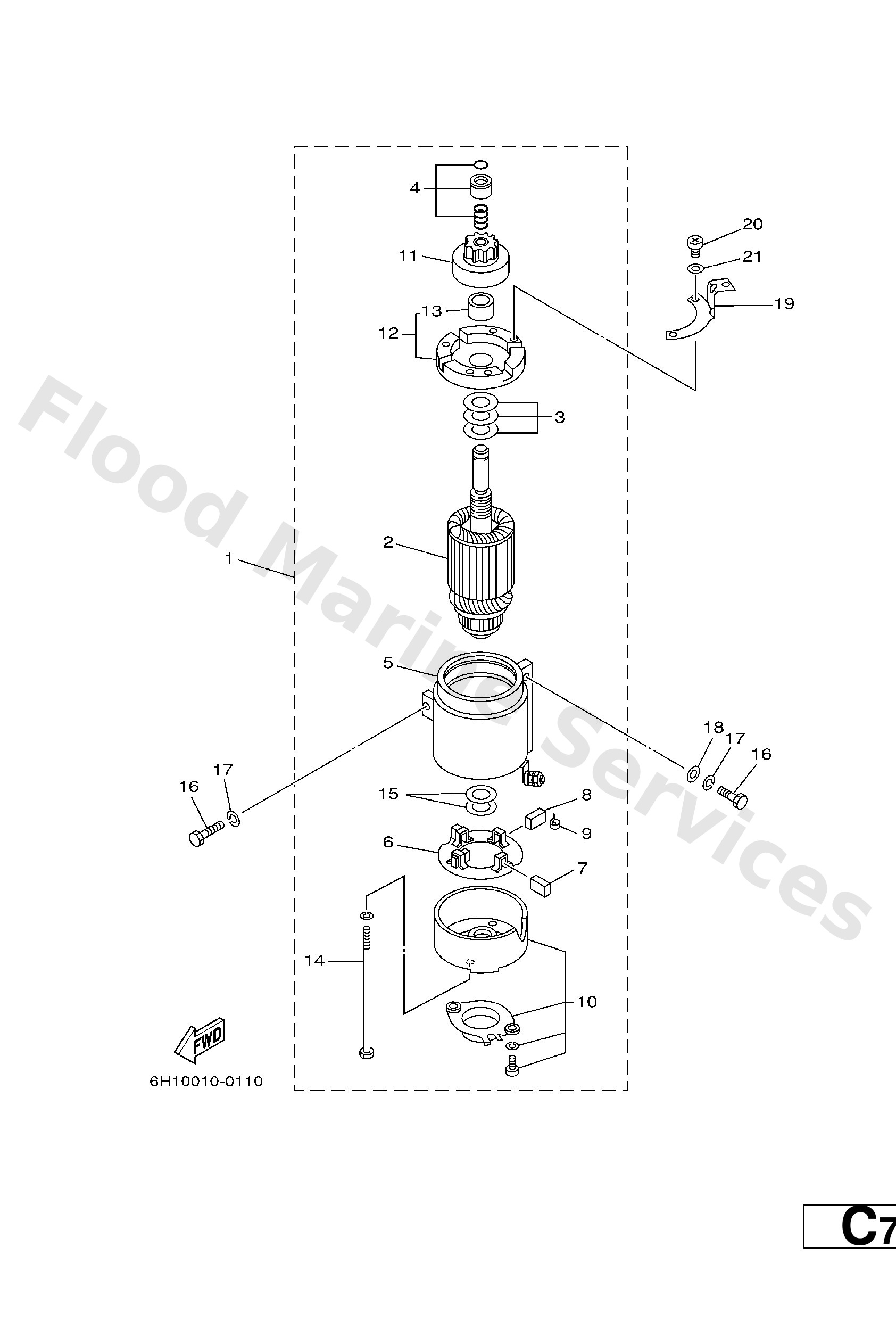

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
688--81800--12
Starting motor assembly
Loading…
↗
2
676--81850--11
Armature assembly
Loading…
↗
3
676--81809--10
Washer kit
Loading…
↗
4
676--81857--10
Pinion stopper set
Loading…
↗
5
688--81810--11
Stator assembly
Loading…
↗
6
663--81840--11
Brush holder assembly
Loading…
↗
7
663--81811--11
Brush 1
Loading…
↗
8
663--81812--11
Brush 2
Loading…
↗
9
663--81813--10
Spring, brush
Loading…
↗
10
663--81820--12
Rear bracket assembly
Loading…
↗
11
663--81832--11
Pinion assembly
Loading…
↗
12
688--81830--11
Front bracket assembly
Loading…
↗
13
688--81831--00
Metal, front
Loading…
↗
14
663--81826--10
Bolt 1
Loading…
↗
15
688--81824--00
Washer 2
Loading…
↗
16
97013--08030
Bolt
Loading…
↗
17
92903--08100
Ybs67-8 washer, spring
Loading…
↗
18
92990--08600
Washer, plain (663)
Loading…
↗
19
6H1--15771--00
Stay 1
Loading…
↗
20
97885--04010
Screw, pan head (e56)
Loading…
↗
21
92995--04600
Washer, plain (646)
Loading…
↗
