90AETO (2017)
STARTING MOTOR

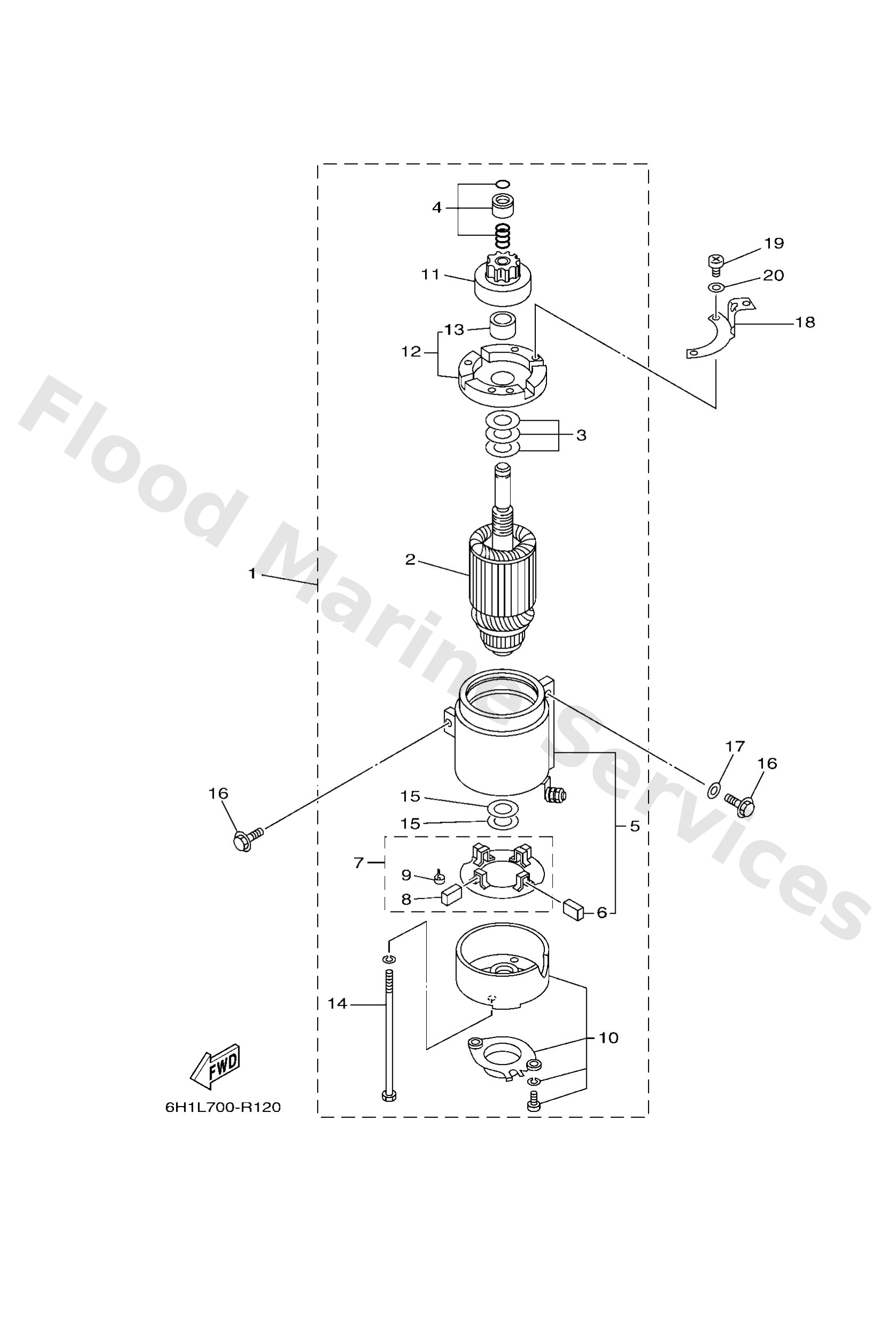

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6888180012
Starting motor assembly
Loading…
↗
2
6768185011
Armature assembly
Loading…
↗
3
6768180910
Washer kit
Loading…
↗
4
6768185710
Pinion stopper set
Loading…
↗
5
6888181011
Stator assembly
Loading…
↗
6
6638181111
Brush 1
Loading…
↗
7
6638184011
Brush holder assembly
Loading…
↗
8
6638181211
Brush 2
Loading…
↗
9
6638181310
Spring, brush
Loading…
↗
10
6638182012
Rear bracket assembly
Loading…
↗
11
6638183211
Pinion assembly
Loading…
↗
12
6888183011
Front bracket assembly
Loading…
↗
13
6888183100
Metal, front
Loading…
↗
14
6638182610
Bolt 1
Loading…
↗
15
6888182410
Washer 2
Loading…
↗
16
9751308530
Bolt, with washer (62x)
Loading…
↗
17
9299008600
Washer, plain (663)
Loading…
↗
18
6H11577100
Stay 1
Loading…
↗
19
9788504010
Screw, pan head (e56)
Loading…
↗
20
9299504600
Washer, plain (646)
Loading…
↗
