E40XWH (2010)
STARTING MOTOR

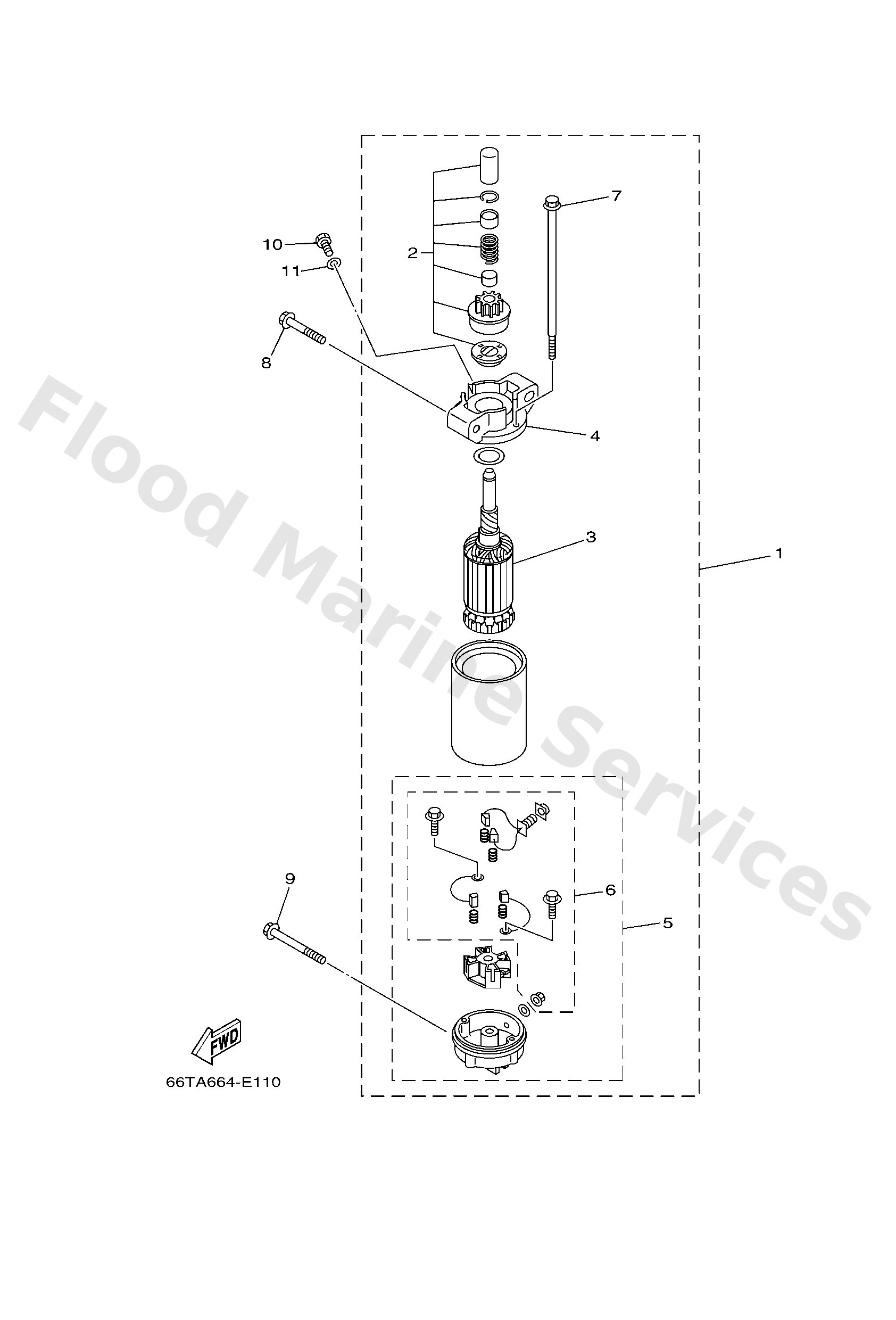

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
66T8180002
Starting motor assembly
Loading…
↗
2
66T8185700
Pinion stopper set
Loading…
↗
3
66T8185001
Armature assembly
Loading…
↗
4
66T8183000
Front bracket assembly
Loading…
↗
5
66T8182000
Rear bracket assembly
Loading…
↗
6
66T8184000
Brush holder assembly
Loading…
↗
7
66T8182600
Bolt
Loading…
↗
8
9011908M39
Bolt, with washer
Loading…
↗
9
9011908M52
Bolt, with washer
Loading…
↗
10
9709508016
Bolt, hexagon deep recess
Loading…
↗
11
9299508600
Washer, plain (663)
Loading…
↗
