E48CMH (2003)
STARTING MOTOR

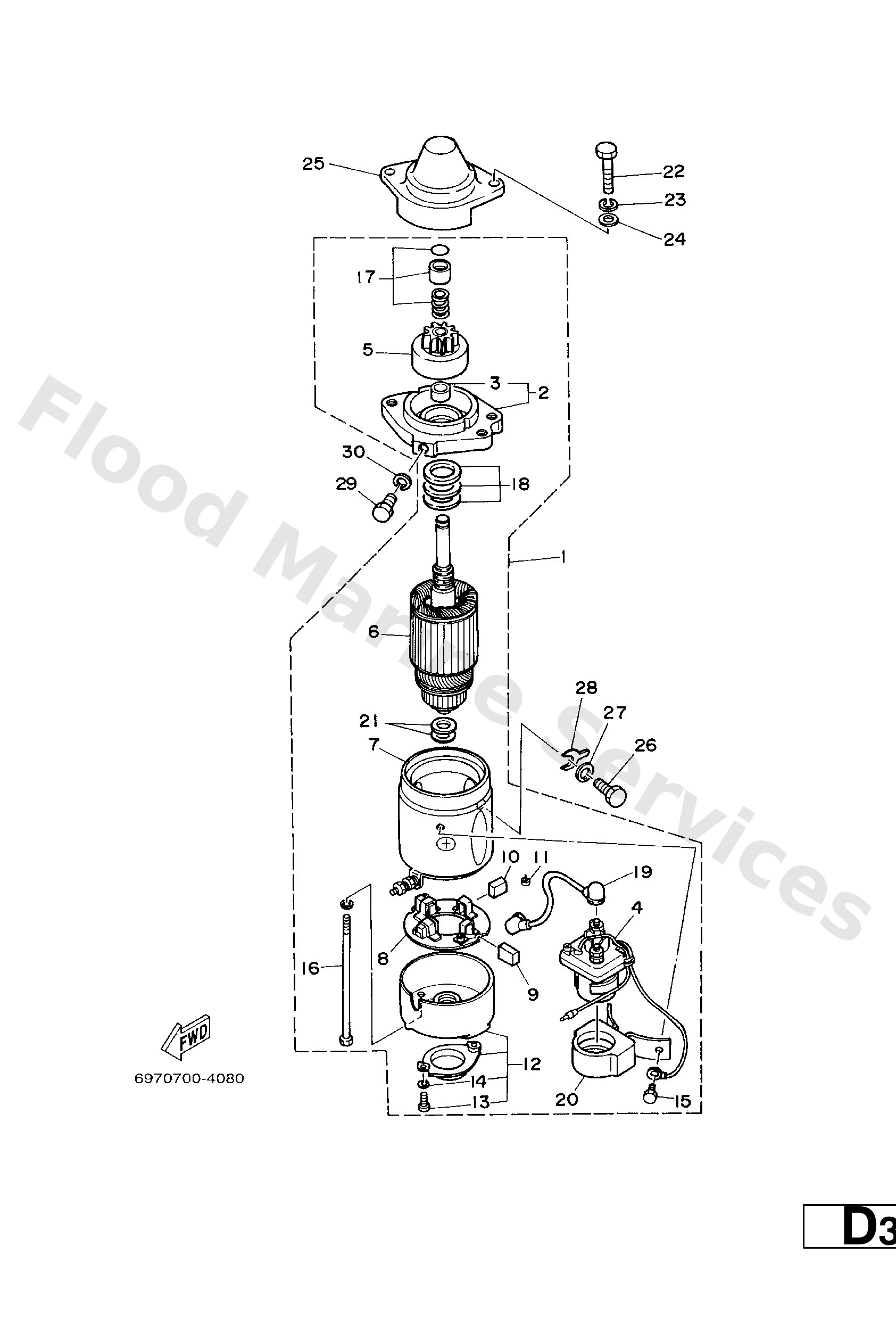

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
697−81800−13
Starting motor assembly
Loading…
↗
2
676−81830−10
Front cover assembly
Loading…
↗
3
688−81831−00
Metal, front
Loading…
↗
4
682−81941−11
Starter, relay
Loading…
↗
5
663−81832−12
Pinion assembly
Loading…
↗
6
676−81850−12
Armature assembly
Loading…
↗
7
663−81810−11
Stator assembly
Loading…
↗
8
663−81840−11
Brush holder assembly
Loading…
↗
9
663−81811−11
Brush 1
Loading…
↗
10
663−81812−11
Brush 2
Loading…
↗
11
663−81813−10
Spring, brush
Loading…
↗
12
663−81820−12
Rear bracket assembly
Loading…
↗
13
98503−04012
Screw, pan head (686)
Loading…
↗
14
92901−04100
Ybs67-4 washer, spring
Loading…
↗
15
97313−06010
Bolt
Loading…
↗
16
663−81826−10
Bolt 1
Loading…
↗
17
697−81857−12
Pinion stopper set
Loading…
↗
18
697−81809−10
Washer kit
Loading…
↗
19
697−81815−10
Wire, lead
Loading…
↗
20
697−81952−10
Holder, relay
Loading…
↗
21
688−81824−00
Washer 2
Loading…
↗
22
97013−08040
Bolt
Loading…
↗
23
92903−08100
Ybs67-8 washer, spring
Loading…
↗
24
92903−08600
Washer, plain (663)
Loading…
↗
25
663−81842−01−94
Cover 3
Loading…
↗
26
97013−08025
Bolt (682)
Loading…
↗
28
663−81162−00
Washer, Plain
Loading…
↗
29
97013−08016
Bolt, hexagon
Loading…
↗
