F150AET (2011)
STARTING MOTOR

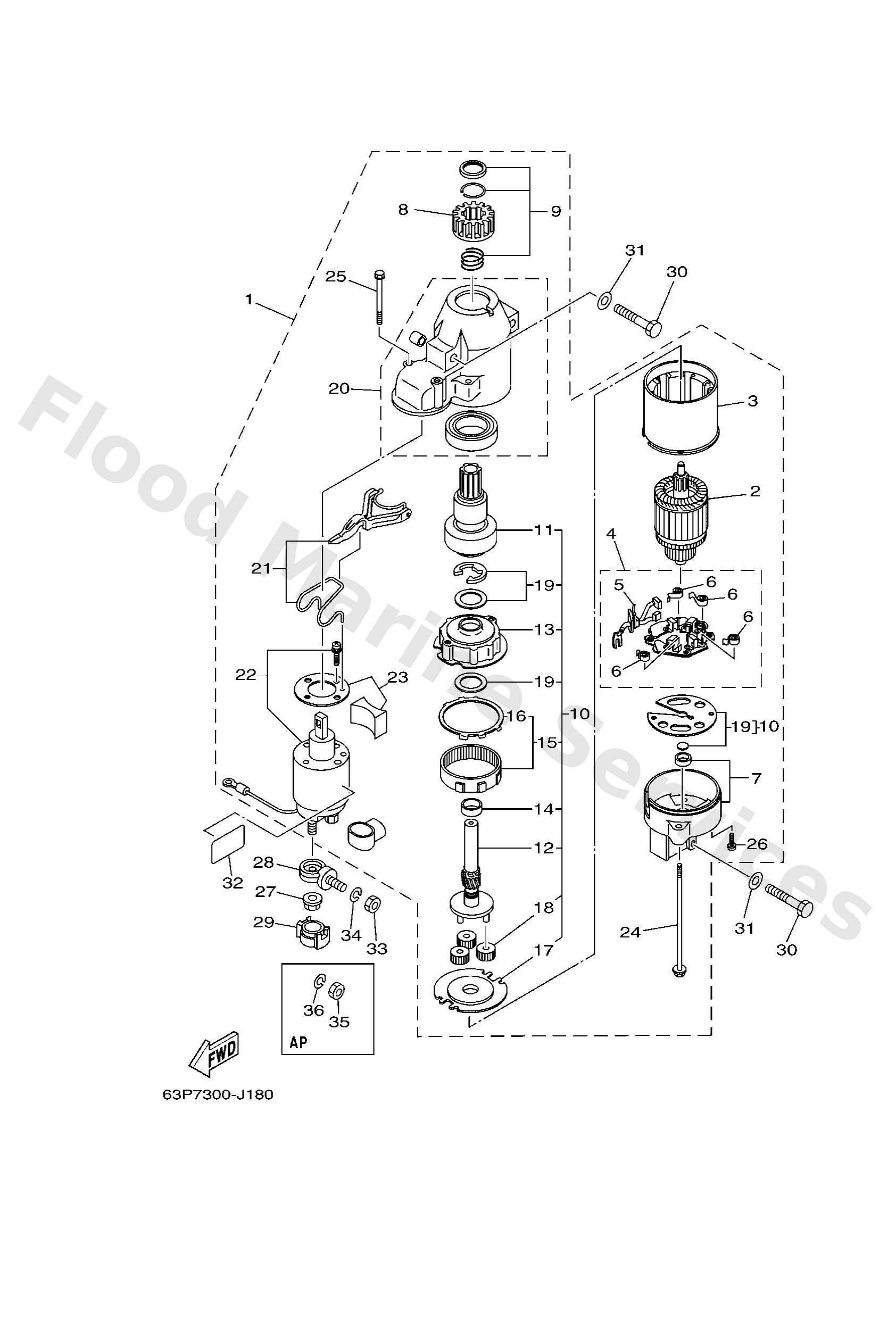

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6BR8180000
Starting motor assembly
Loading…
↗
2
67F8185000
Armature assembly
Loading…
↗
3
67F8181000
Stator assembly
Loading…
↗
4
69J8184000
Brush holder assembly
Loading…
↗
5
69J8180100
Brush set
Loading…
↗
6
67F8181300
Spring, brush
Loading…
↗
7
67F8182000
Rear bracket assembly
Loading…
↗
8
67F8180800
Pinion assembly
Loading…
↗
9
67F8185700
Pinion stopper set
Loading…
↗
10
67F8180700
Gear assembly, starting motor
Loading…
↗
11
67F8183200
Clutch, over run
Loading…
↗
12
67F8183600
Shaft, pinion
Loading…
↗
13
67F8182100
Bracket, center 1
Loading…
↗
14
67F8184100
Bearing
Loading…
↗
15
67F8189100
Gear, ring
Loading…
↗
16
67F8183R00
Gasket
Loading…
↗
17
67F8183000
Bracket, center 2
Loading…
↗
18
60V8183T00
Gear, idler
Loading…
↗
19
67F8180900
Washer kit
Loading…
↗
20
69J8184200
Cover
Loading…
↗
21
69J8183900
Lever assembly
Loading…
↗
22
63P8194100
Starter relay assembly
Loading…
↗
23
69J8186900
Cover, Dust
Loading…
↗
24
6K78182611
Bolt
Loading…
↗
25
69J8182800
Bolt 2
Loading…
↗
26
67F8184600
Screw
Loading…
↗
27
9017908003
Nut
Loading…
↗
28
60V8192500
Terminal
Loading…
↗
29
68F8258200
Cover, wire harness
Loading…
↗
30
9701308045
Bolt
Loading…
↗
31
9290308600
Washer, plain (663)
Loading…
↗
32
67F8362701
Label, caution 7
Loading…
↗
33
9533308600
FOR EUR,RUS
Nut(6l2)
Loading…
↗
34
9290308100
FOR EUR,RUS
Ybs67-8 washer, spring
Loading…
↗
